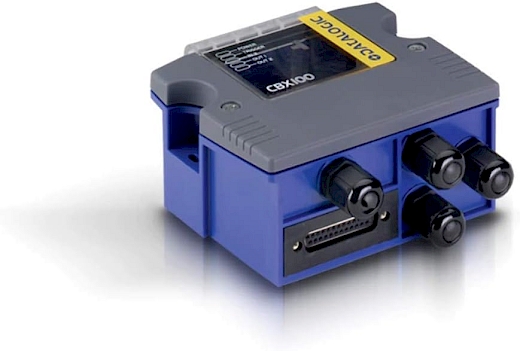

Datalogic Matrix Serisi İçin Bağlantı Kutusu (CBX100 CONNECTION BOX COMPACT)
Datalogic Matrix 320
High-Performance Industrial Imaging & Connection Infrastructure
The Datalogic Matrix 320 is a flagship 2D industrial imager designed to handle the most demanding traceability tasks. Its standout feature is the Liquid Lens (LQL) technology, which allows for electronic focus adjustment—eliminating the need for manual intervention on lines with varying product heights. This specific configuration highlights the Industrial Connection Box, a critical accessory for robust field wiring and reliable signal distribution.
Technical Specifications
| Main Device | Datalogic Matrix 320 (2MP Sensor) |
| Accessory Included | Industrial Connection Box (CBX series) |
| Imaging Focus | Liquid Lens (LQL) Technology |
| Networking | Gigabit Ethernet, PROFINET, EtherNet/IP, OPC UA |
| Protection Class | IP65 / IP67 (Dust and Water Proof) |
| Operating Temp. | -20°C to +50°C |
Why use the Industrial Connection Box?
The Connection Box acts as a centralized interface for the Matrix 320. It simplifies installation by providing internal spring-clamp terminals for power and I/O. Crucially, it protects the camera's sensitive ports from electrical noise and physical stress, while allowing for a "Backup & Restore" module to be installed for rapid device replacement without a PC.
Core Benefits
- High Speed: Decodes moving codes with no blur.
- Liquid Lens: Remote focus for multi-layered products.
- Industry 4.0: Native OPC UA and FTP/SFTP support.
Ideal Applications
- Automotive: DPM (Direct Part Marking) on metal.
- Intralogistics: Rapid package and pallet sorting.
- Electronics: Tracking dense DataMatrix on PCBs.
