Datalogic Matrix 320 Serisi İçin 8mm C-Mount Lens (LNM 003-021 CM 8MM VF1.8 1/2 ED)
Datalogic Matrix 320
Full Industrial 2D Stationary Barcode Reader - 8mm C-Mount Edition
High Speed and Maximum Precision for Production Lines
The Datalogic Matrix 320 is a stationary industrial 1D/2D barcode reader engineered for high-speed, uninterrupted reading performance in demanding environments. Its compact and rugged design makes it a reliable choice for production lines, automated systems, and intralogistics applications.
Advanced LQL (Liquid Lens) imaging technology provides superior reading success even on low-contrast, faint, worn, or high-speed moving barcodes. This configuration features the 8mm C-Mount lens, which offers an ultra-wide field of view, ideal for close-range scanning and applications where large areas must be covered from a short distance.
Why Datalogic Matrix 320?
Seamless Automation
Stable reading on high-speed conveyors and moving products without data loss.
Industrial Durability
IP65/67 rated rugged housing built for dusty and harsh manufacturing environments.
Superior Decoding
Maximum sensitivity for 1D and 2D barcodes, including challenging DPM codes.
Easy Integration
Rapid deployment with PROFINET, EtherNet/IP, Modbus TCP, and OPC UA protocols.
Key Features
- LQL Imaging Technology: High performance on faint and damaged codes.
- 8mm Wide-Angle Optics: Expansive reading field minimizes the need for precise alignment.
- Stationary Mounting Compatibility: Compact design for flexible installation in tight spaces.
- Full Connectivity: Ethernet 10/100/1000 Mbit/s (TCP/IP, UDP, FTP, SFTP) and high-speed Serial interfaces.
Specifications (8mm C-Mount)
| Parameter | Value |
|---|---|
| Product Type | Matrix 320 Accessory |

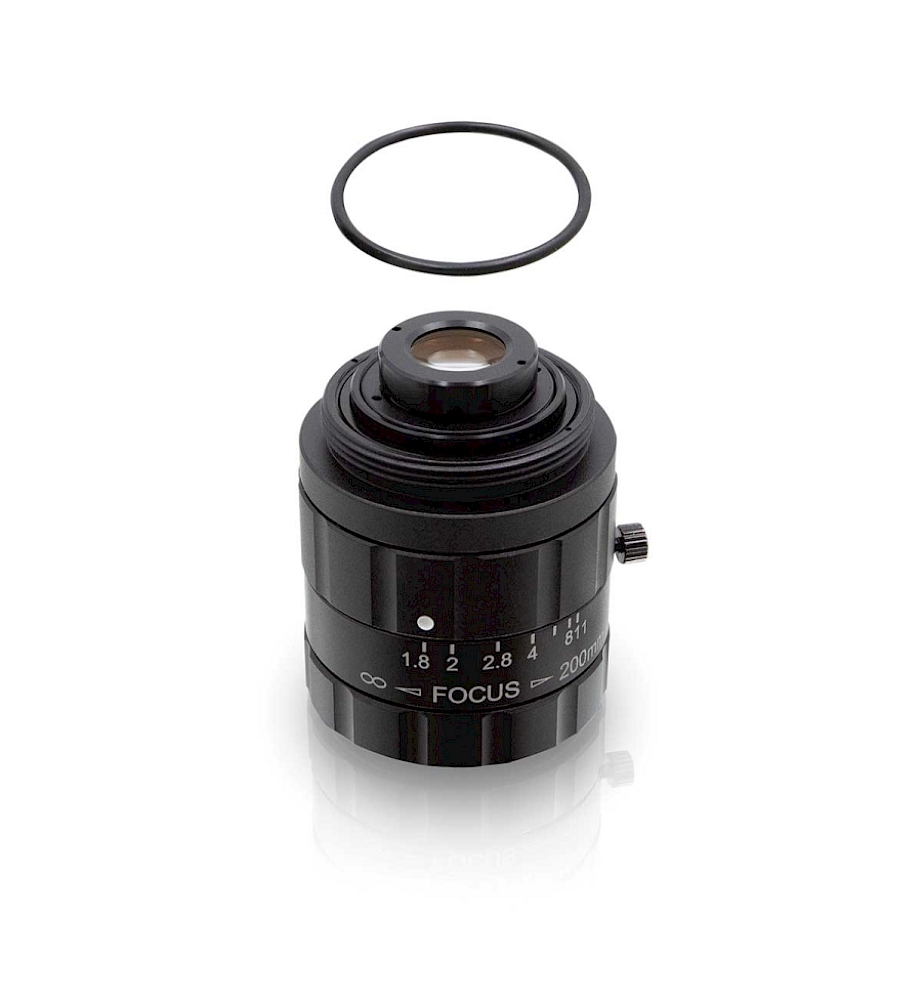

| Lens Description | Matrix 320 Series 8mm C-Mount Lens |
| Supported Products | Matrix 320 36 & 72 LED Models |
| Protection Class | IP65 / IP67 |
| Operating Temp. | -20°C to +50°C |
| Warranty | 2-Year Manufacturer Warranty |
Target Applications
- Manufacturing & Automation: Micro barcode reading, WIP tracking, and quality control.
- Automotive & Electronics: Verification of PCB components and laser-marked serial numbers.
- Pharmaceutical: UDI tracking and high-density DataMatrix decoding.
- Logistics: High-speed sorting and broad-area product verification.
