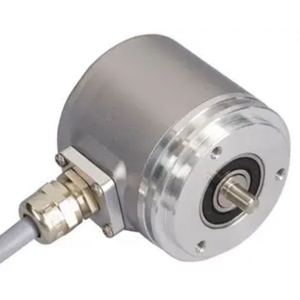

Posital Fraba UTD-IPT00-XXXXX-Y100-2RW Inkremental Programmable Encoder [1-32768 Pulse | HTL | TTL]

Posital Fraba UTD-IPT00-XXXXX-Y100-2RW Incremental Programmable Encoder [1-32768 Pulse | HTL | TTL]

Posital Fraba Incremental Encoders

High-precision, durable, and reliable encoder solutions for your industrial automation systems. Posital Fraba’s incremental encoders offer maximum performance in all applications requiring motion, speed, and position feedback.

Product Features

• High Resolution: Precise speed and position measurement.
• Magnetic and Optical Technology Options
• Incremental (A/B/Z) Output Signals
• Output Options: TTL, HTL (Push-Pull), and Line Driver.
• Wide Supply Voltage Range: 5–30 VDC models.
• Protection Class: IP65 / IP67 rated.
• Compact and Industrial Design
• High Shock and Vibration Resistance

What is an Incremental Encoder?

Incremental (incremental) encoders generate speed and relative position information by converting shaft rotation into pulse signals. The A and B phase signals allow for direction detection, while the Z (index) signal provides a reference point. They are widely used in servo motors, conveyor systems, and CNC machines.

Application Areas

• Factory automation
• Packaging machinery
• CNC and machine tools
• Robotic systems
• Elevator and crane applications
• Energy and process industries

Why Choose Posital Fraba?

• German Engineering Quality: Precision-manufactured for excellence.
• Maintenance-Free Design: Built for a long service life.
• Wide Range of Variations: Various shaft diameters, flange types, and resolution options.
• Fast Configuration: Rapid delivery and customizable settings.
• International Standards: Production in compliance with global quality certifications.

Technical Options

• Shaft Type: Solid shaft / Hollow shaft
• Resolution: Options from 1 to 65,536 PPR (Pulses Per Revolution)
• Housing Diameter: 36 mm, 50 mm, 58 mm and above
• Operating Temperature: -40°C to +85°C (model dependent)
