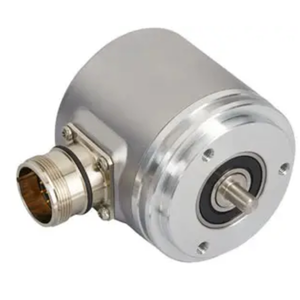

Posital Fraba UTD-IPT00-XXXXX-Y060-PRL Inkremental Programmable Encoder [1-32768 Pulse | HTL | TTL]

Posital Fraba UTD-IPT00-XXXXX-Y060-PRL Incremental Programmable Encoder [1-32768 Pulse | HTL | TTL]

Posital Fraba Incremental Encoders

High-precision, durable, and reliable encoder solutions for your industrial automation systems. Posital Fraba’s incremental encoders offer maximum performance in all applications requiring motion, speed, and position feedback.

Product Features

• High Resolution: Precise speed and position measurement
• Magnetic and Optical Technology Options
• Incremental (A/B/Z) Output Signals
• TTL, HTL (Push-Pull), and Line Driver Output Options
• Wide Supply Voltage Range (5–30 VDC models)
• IP65 / IP67 Protection Class
• Compact and Industrial Design
• High Shock and Vibration Resistance

What is an Incremental Encoder?

Incremental encoders convert shaft rotation into pulse signals to generate speed and relative position data. The A and B phase signals allow for direction detection, while the Z (index) signal provides a reference point.

They are widely used in servo motors, conveyor systems, and CNC machines.

Application Areas

• Factory automation
• Packaging machinery
• CNC and machine tools
• Robotic systems
• Elevator and crane applications
• Energy and process industries

Why Posital Fraba?

• German Engineering Quality: Precision-manufactured for excellence
• Maintenance-Free Design: Long-lasting and durable construction
• Wide Range of Variations: Various shaft diameters, flange types, and resolution options
• Fast Configuration: Rapid delivery and customizable settings
• Global Standards: Production in compliance with international quality certifications

Technical Options

• Shaft Type: Solid shaft / Hollow shaft
• Resolution: Options from 1 to 65,536 PPR (Pulses Per Revolution)
• Housing Diameter: 36 mm, 50 mm, 58 mm and above
• Operating Temperature: Between -40°C and +85°C (model dependent)

Feature	Value
Product Type	Incremental Encoder
Communication Type	TTL & HTL (Programmable)
Programmable Pulse Range	1-32,768 Pulses
Shaft Type	Servo Shaft (6mm Diameter)
Connection Type	2-Meter Cable / Radial
Supply Voltage	4.75 - 30 V DC
IP Class	IP 65
Technology	Magnetic
External Accessories	Refer to the catalog.

Product Type Industrial Fixed Mount Barcode Scanner Scanning Technology Area Imager Supported Codes 1D (EAN, UPC, Code 128, etc.) and 2D (QR, DataMatrix, PDF417) Reading Speed High-Speed Motion Detection (up to 60 fps) Interface (Connection) USB, RS232 (Optional) Protection Class IP54 (Dust and Splash Resistant) Operating Temperature Between -20°C and +60°C Dimensions Compact (Compatible with kiosks and under-counter)

Usage Areas

Retail and Kiosks: Price checkers, self-checkout counters, and ticketing machines.

Production and Logistics: Product tracking and sorting on conveyor belts.

Healthcare: Laboratory sample tracking and medical device integration.

Access Control: Turnstile systems and parking lot entrances.

Expert Note: The FS70 is a price/performance champion, especially for integration projects where space is limited but performance is critical.
