Lighting For Datalogic Matrix 320 Series (LTM 034-602 S72L 60D BLU 475nm)

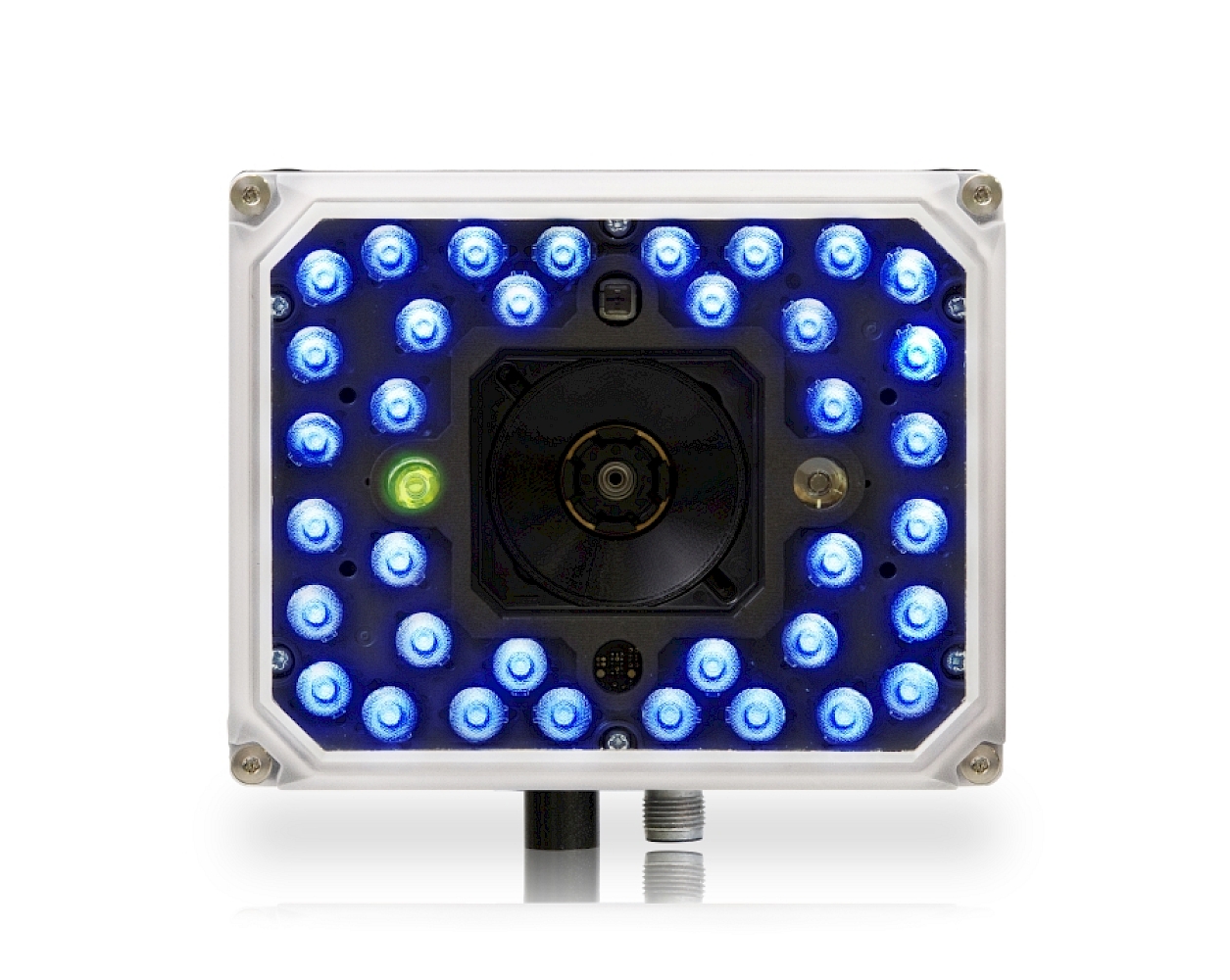

Datalogic Matrix 320
Industrial 2D Imaging Excellence with Specialized Blue Illumination
The Datalogic Matrix 320 is a high-performance industrial 2D stationary reader optimized for high-speed production lines and complex traceability. This specific configuration features Blue Illumination, which is critical for reading barcodes on reflective surfaces, metal parts, or backgrounds that interfere with standard red or white light. Paired with Liquid Lens (LQL) technology, it offers rapid electronic focus and unmatched precision.
Technical Specifications
| Product Category | Industrial Stationary 2D Imager |
| Illumination Color | Blue LED (Optimized for Reflective Surfaces) |
| LED Configuration | 36 or 72 LED Ultra-High Power Options |
| Imaging Focus | Liquid Lens (LQL) Electronic Adjustment |
| Interfaces | Gigabit Ethernet, PROFINET, OPC UA, RS-232/422 |
| Protection Class | IP65 / IP67 |
| Operating Temp. | -20°C to +50°C |
The Advantage of Blue Illumination
Blue light has a shorter wavelength than red light, which allows the Matrix 320 to capture higher-contrast images on difficult surfaces. It is the industry standard for reading Direct Part Marking (DPM) on metallic components and micro-barcodes on electronic PCBs where glare from traditional lighting would cause reading failures.
System Strengths
- Liquid Lens: Software-controlled focus for variable heights.
- Rugged Design: Full metal housing for harsh production lines.
- High Speed: Global shutter captures motion without blur.
Ideal Industries
- Automotive: Tracking parts with oil or metal glare.
- Electronics: High-density DataMatrix on shiny PCBs.
- Aerospace: Specialized DPM and serial number verification.
