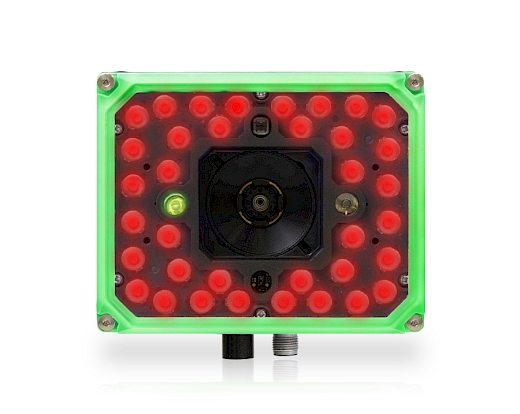

Lighting for Datalogic Matrix 320 Series (LTM 002-600 S36L 60D RED 625nm)
Datalogic Matrix 320
Industrial 2D Stationary Reader with Advanced Red Illumination
The Datalogic Matrix 320 is a stationary 1D/2D industrial code reader designed for high-speed, high-precision reading in demanding environments. This configuration features Red Illumination, the industry standard for general-purpose high-contrast reading of barcodes on various substrates.
With advanced Liquid Lens (LQL) technology, the Matrix 320 provides electronic focus adjustment, ensuring maximum performance even on low-contrast, damaged, or high-speed barcodes without needing manual lens tuning.
Why the Matrix 320?
High-Speed Automation
Reliable reading on fast-moving conveyors and dynamic production lines.
Extreme Durability
IP67-rated housing protected against dust and water in harsh factories.
Precise Decoding
Outstanding sensitivity for both standard and high-density 1D/2D codes.
Universal Connectivity
Gigabit Ethernet, PROFINET, EtherNet/IP, and Modbus TCP support.
Technical Specifications
| Feature | Details |
|---|---|
| Product Category | Matrix 320 Accessory - Illumination |
| Lighting Type | Red (36 & 72 LED support) |
| Optical Focus | LQL (Liquid Lens) Electronic Focus |
| Ingress Protection | IP65 / IP67 |
| Communication | Gigabit Ethernet, OPC UA, RS-232/422 |
| Operating Temp. | -20°C to +50°C |
Key Applications
- Automotive & Electronics: Verification of PCB components and DPM serial numbers.
- Pharma & Medical: UDI tracking and high-density DataMatrix applications.
- Logistics & Packaging: High-speed product verification and sorting traceability.
- Food & Beverage: Label validation and batch tracking on fast-moving lines.
