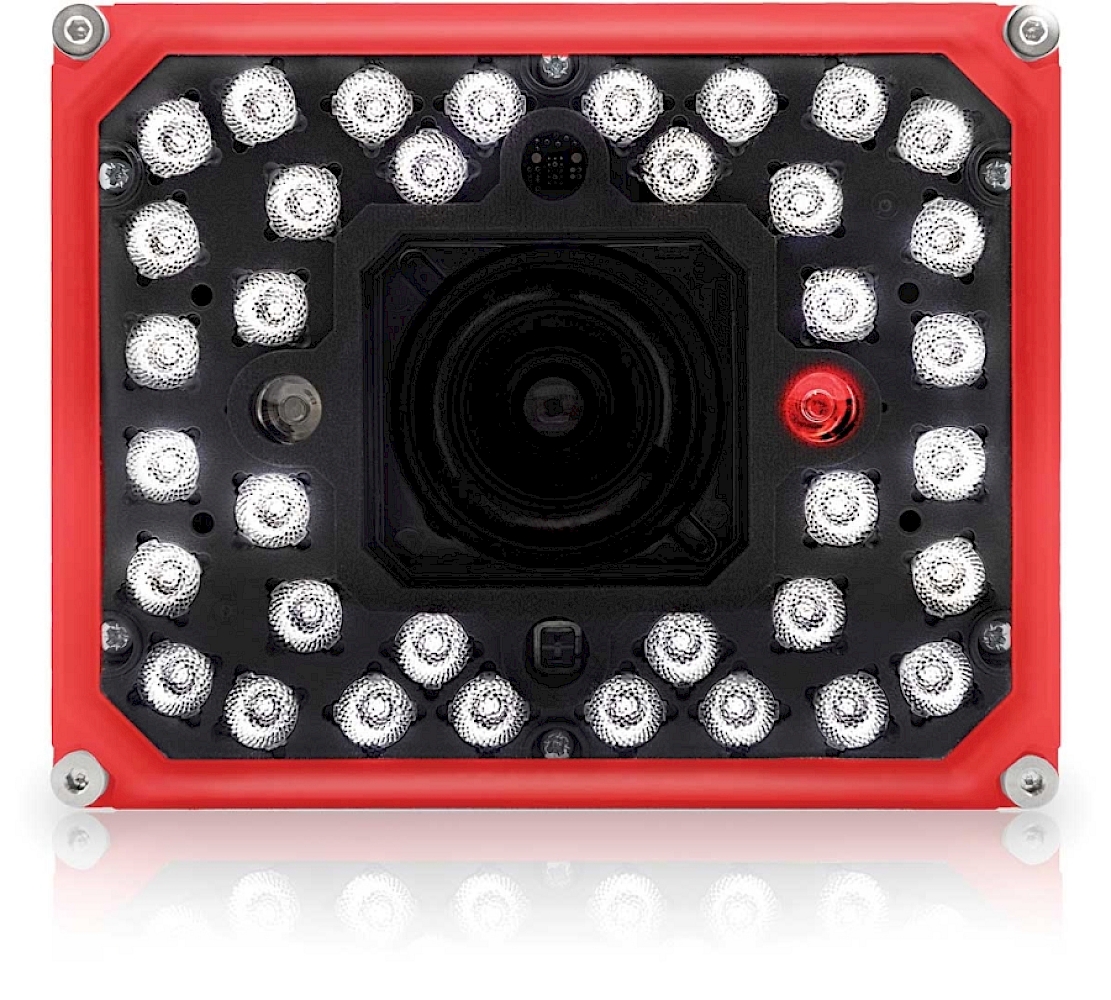

Lighting for Datalogic Matrix 320 Series (LTM 002-353 S36L 35D IR 850NM)

Product Code

93ACC0304

Brands

The Datalogic Matrix 320 fixed code reader family is fully customizable with different reader types and resolution options, easily adapting to any application. You can always reach us between 08:00 - 18:00 on weekdays regarding your needs and demands.

Product Description
Product Videos
Product Links
Ürün Bilgi Formu

Product Description

Datalogic Matrix 320

Industrial 2D Stationary Barcode Reader - High-Speed Precision

Technical Overview

The Datalogic Matrix 320 is a stationary industrial 1D/2D barcode reader engineered for high-speed, non-stop reading performance in demanding environments. Its modular design and Liquid Lens (LQL) technology allow for electronic focus adjustment, ensuring maximum efficiency on high-speed production lines.

LQL Technology

Electronic focus adjustment provides superior performance on faint, damaged, or low-contrast codes without moving parts.

IR (Infrared) Lighting

Optimized for applications where visible light is disruptive or where specific material contrast is required.

Technical Specifications

Parameter	Description / Value
Product Description	Matrix 320 Series Lighting Module (IR - Infrared)
Supported Hardware	Matrix 320 (36 & 72 LED Models)
Ethernet Interfaces	10/100/1000 Mbit/s: TCP/IP, UDP, FTP, SFTP
Fieldbus Protocols	PROFINET IO, Ethernet IP, Modbus TCP, OPC UA
Serial Interfaces	RS-232 / RS-422FD (up to 115.2 Kbit/s)
Protection Rating	IP65 / IP67
Operating Temp.	-20°C to +50°C
Warranty	2-Year Manufacturer Warranty

Key Application Areas

Automotive & Electronics: PCB component verification and DPM (Direct Part Marking) reading.
Pharmaceutical & Medical: UDI compliance and high-density DataMatrix applications.
Food & Packaging: High-speed line verification where visible strobe lighting must be avoided.
Intralogistics: WIP (Work-in-Progress) tracking and automated sorting.
