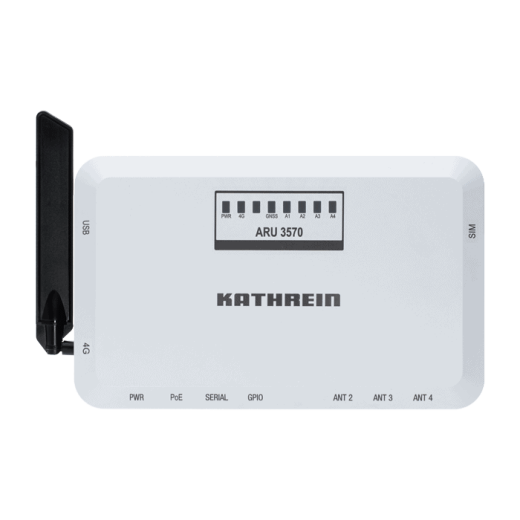

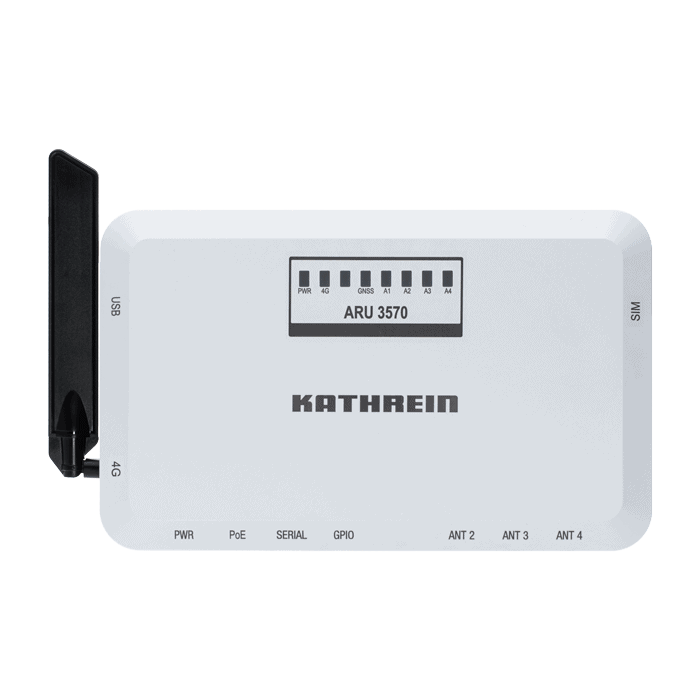

Kathrein ARU3570 GEN4 Fixed Industrial RFID Reader/Writer Unit [Built-in Reader/Writer Antenna | 3 x Slave Antenna Input] [UHF | ETSI |865-868 Mhz]

Product Code
52010688
Brands
Kathrein fixed RFID reader/writer units are fully customizable according to needs with different options and easily adapt to any application. You can always reach us between 08:00 - 18:00 on weekdays regarding your needs and demands.
Processor
iMX8 Cortex A35 dual core @800 MHz
Air Interface Protocol
RAIN RFID / ISO 18000-63 and EPCglobal Gen2v2 compliant
Transmit Power [max. dBm]
+33 dBm
Sensivity [dBm]
typ. -93 [dbm]
Readable Tags Counted Per Second
1100 Tag [Thu/Sec]
Flash Memory eMMC [Mbyte]
8000
RAM DDR3 [Mbyte]
1000
Ethernet Port
1
GPIO [In/Out]
4/4
Wireless Communication Options
5G
Wireless Communication Options
GNSS
Usage Areas
Production
Usage Areas
Automotive
Usage Areas
Logistics
Usage Areas
Smart Storage Systems
Usage Areas
Healthcare
Radio Frequency Compatibility Zone
ETSI
Applicable Label Types
UHF - 865-968 Mhz
Generation
Gen 4
Antenna Type
Master
Number of Connectable Slave Antennas
3
Communication Types
PoE [Power over Ethernet]
Communication Types
RS232
Device IP Class
IP68
Internal Program Support
Reader Start
Operating System
Linux
