iData DM5000-W0635WBT1000 Fixed Industrial Code Reader
Product Code
DM5000-W0635WBT1000
Brands
The iData fixed code reader family is fully customizable with different reader types and resolution options, easily adapting to any application. You can always reach us between 08:00 - 18:00 on weekdays regarding your needs and demands.
Lighting Type
White Light
AI Support
None
Compatible / Compact
Compact
Digital IO
Yes
Image Filter Support
None
Communication Types
Ethernet IP
Communication Types
FTP
Communication Types
Smart SDK
Communication Types
MELSEC
Communication Types
FINS
Communication Types
Modbus TCP
Communication Types
Profinet
Communication Types
RS232
Communication Types
TCP/IP
Communication Types
SLMP
Internal Program Support
None
Kit
Yes
Lens Type
Motorized S-Mount
Lens Size
35 mm
Manual Code Reader Integration
No
Master-Slave Build Support
Yes
Readable Code Types
1D
Readable Code Types
2D
Readable Code Types
Postal
Readable Code Types
Stacked
Readable Code Types
DPM
Polarization Filter
Optional
Resolution
6.3 MPX (3072×2048 PX)
Product Description

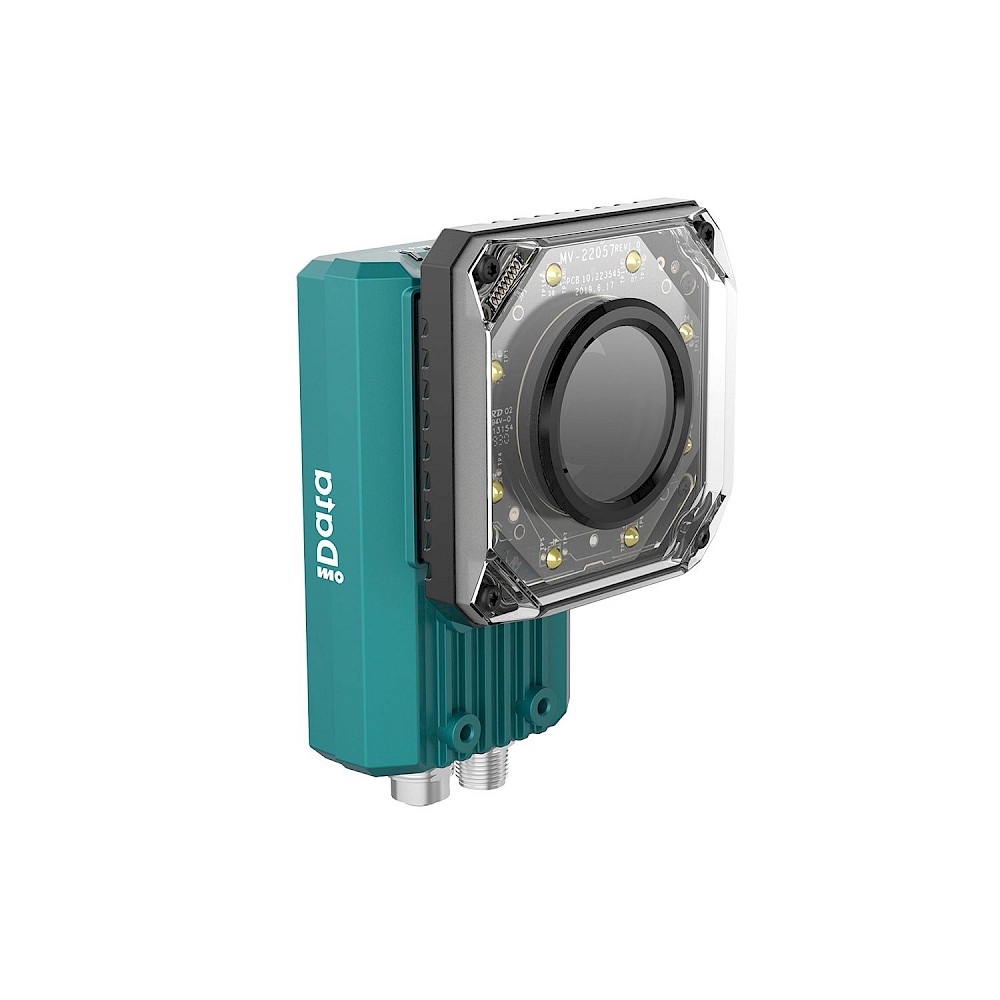

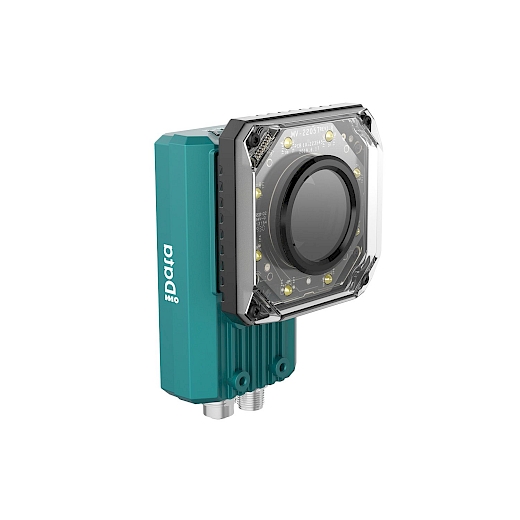

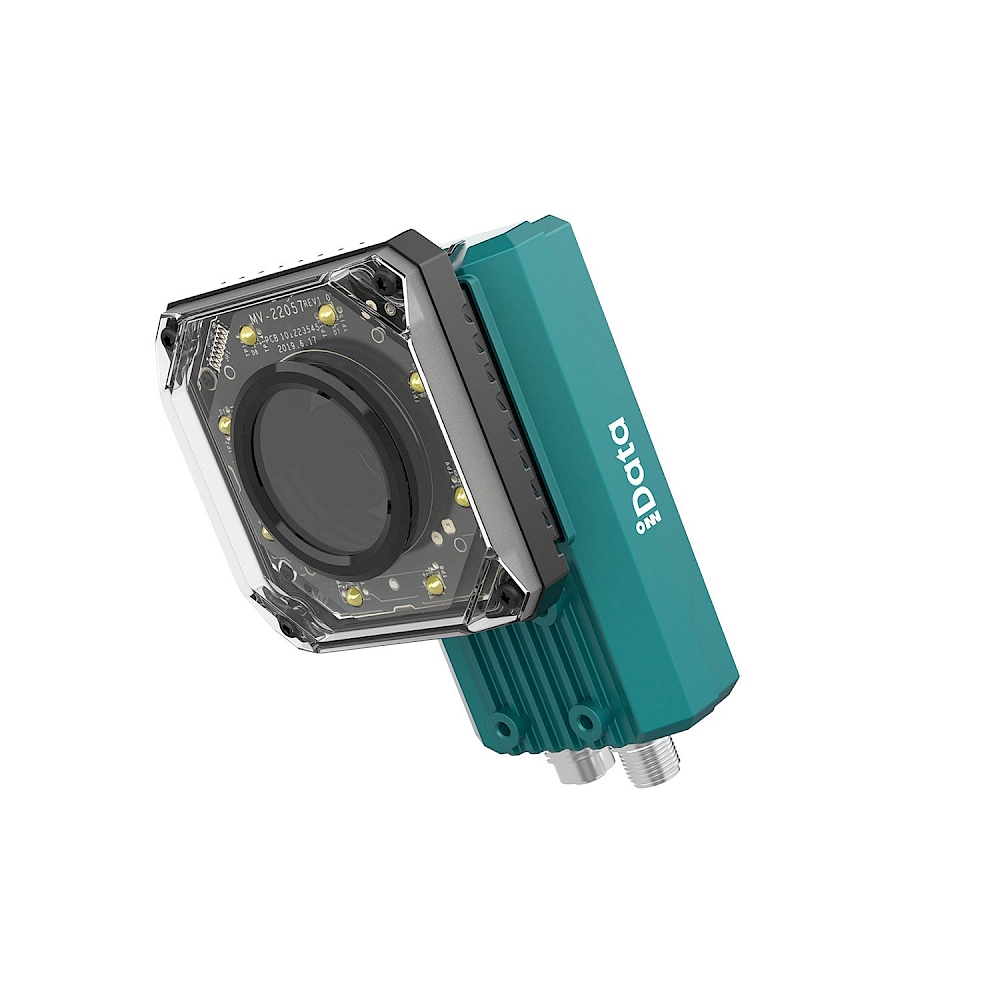

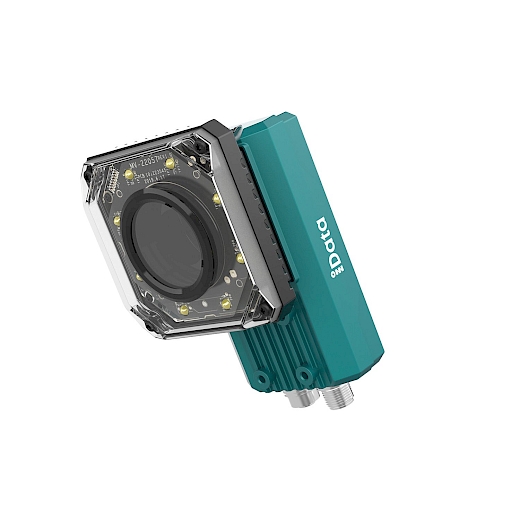

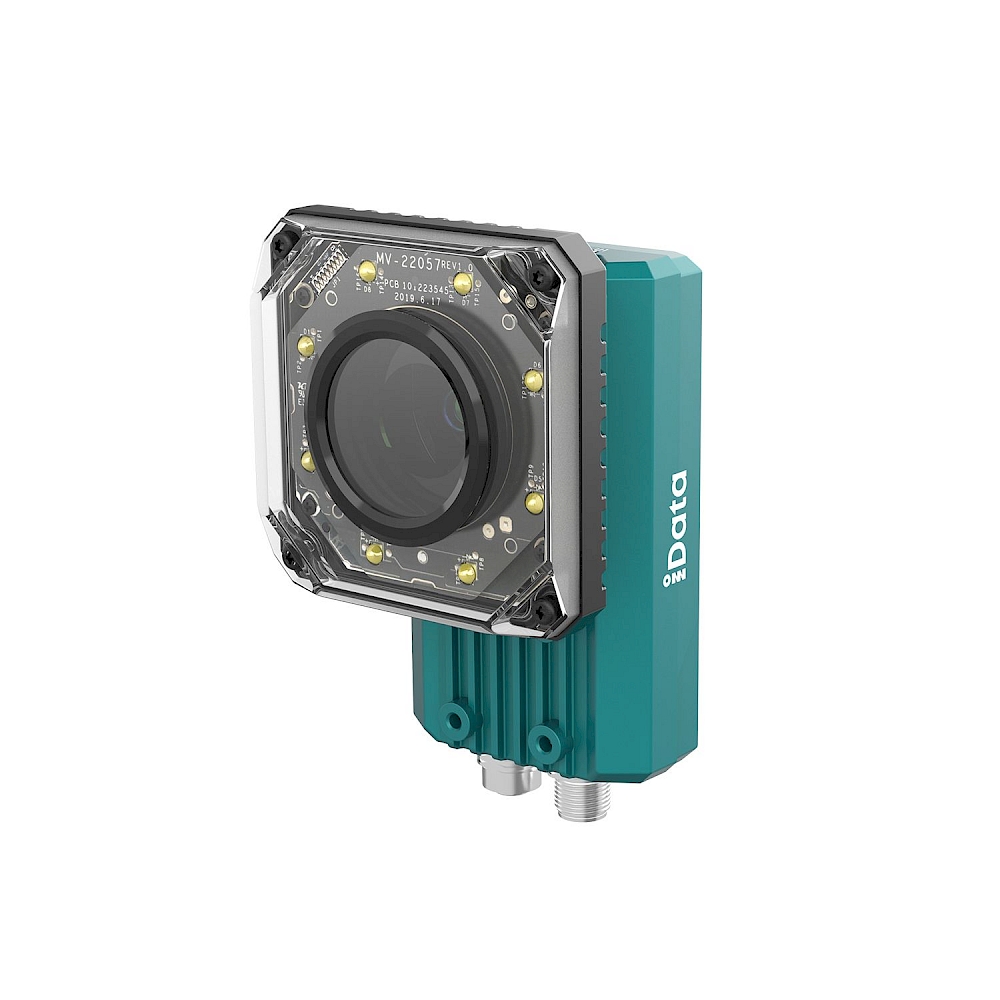

iData DM5000-W0635WBT1000
Ultra-High Resolution 6.3 MP Fixed Industrial Code Reader
The iData DM5000-W0635WBT1000 is an elite-tier industrial 1D/2D imager designed for the most demanding inspection and traceability tasks. With a massive 6.3 MP resolution and a 35mm motorized S-Mount lens, it captures microscopic detail and handles high-speed production lines with surgical precision. Its white illumination and advanced imaging algorithms ensure success even with low-contrast or damaged codes.
Technical Specifications
| Product Type | Full Industrial Fixed Mount Reader |
| Scanning Technology | Area Imager (Motorized S-Mount) |
| Resolution | 3072 x 2048 Pixels (6.3 Mpx) |
| Lens / Illumination | 35mm Lens / White LED Illumination |
| Symbologies | 1D & 2D (QR, DataMatrix, PDF417, etc.) |
| Connectivity | Ethernet (TCP/IP, FTP, PROFINET IO, EtherNet/IP), Serial RS-232 |
| Protection Rating | IP65 / IP67 |
| Operating Temp. | -20°C to +50°C |
| Warranty | 2 Years against manufacturing defects |
The 6.3 MP Advantage
The ultra-high pixel density allows this reader to decode micro-sized barcodes and high-density DataMatrix codes over a larger field of view, significantly reducing the need for multiple cameras on wide conveyor belts.
Core Features
- Motorized Focus: Rapid adjustment for varying product heights.
- Industrial Protocols: Native PROFINET and EtherNet/IP for PLC syncing.
- Rugged Build: Resistant to vibration and dust in harsh plants.
Applications
- Electronics: Traceability for tiny PCB components.
- Automotive: Deep-part marking and serial verification.
- Pharma: High-speed UDI and tracking compliance.
