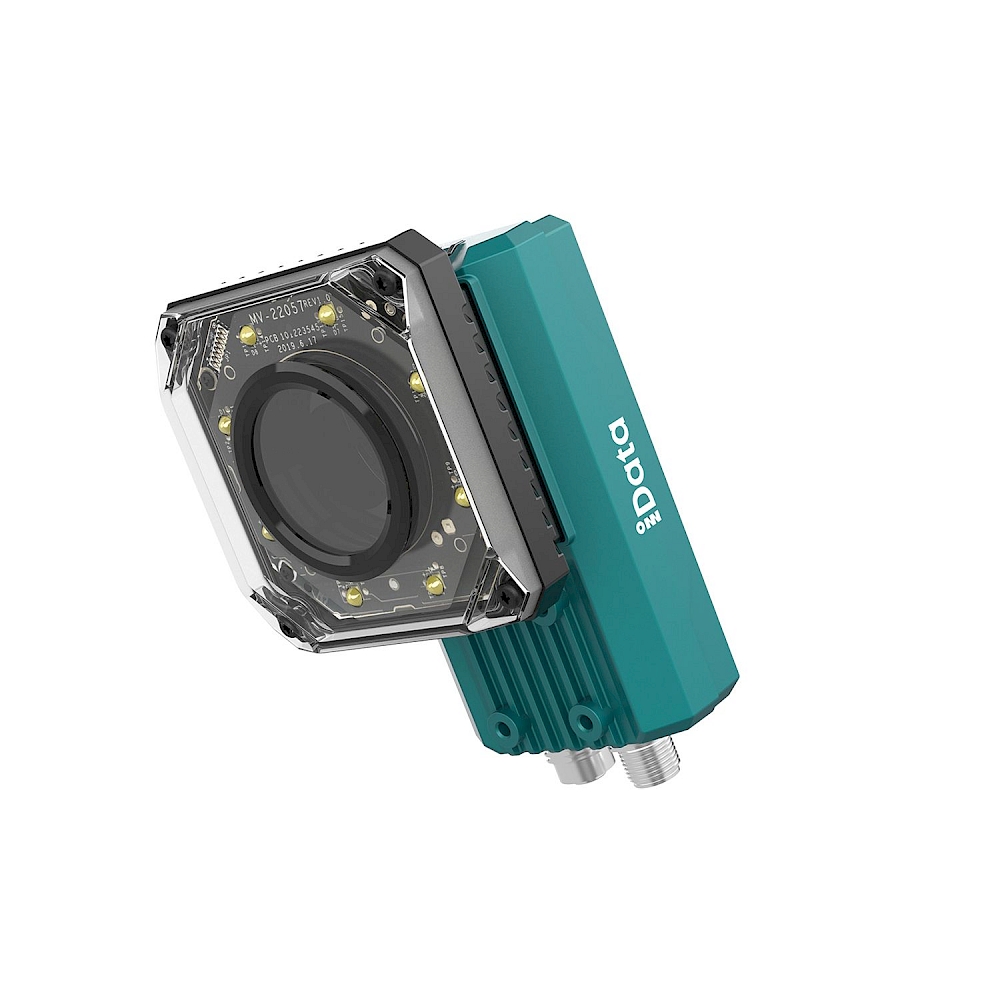

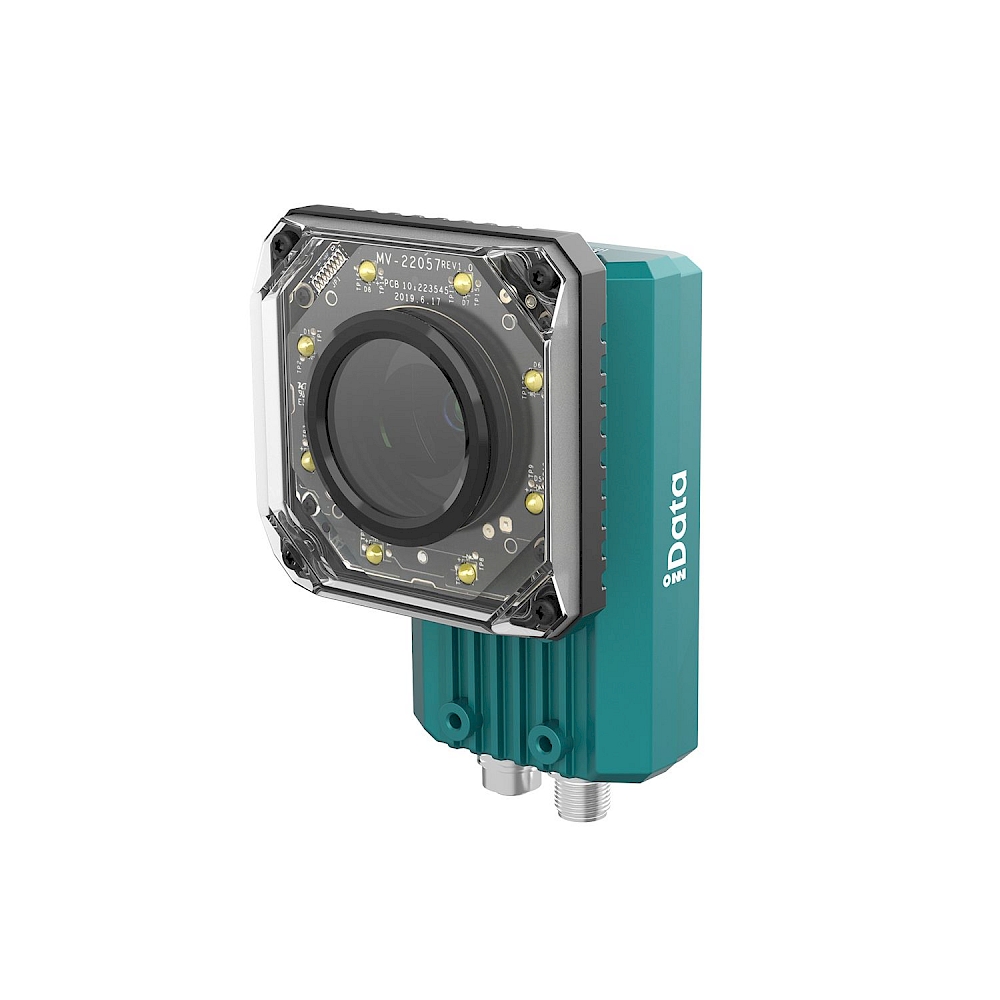

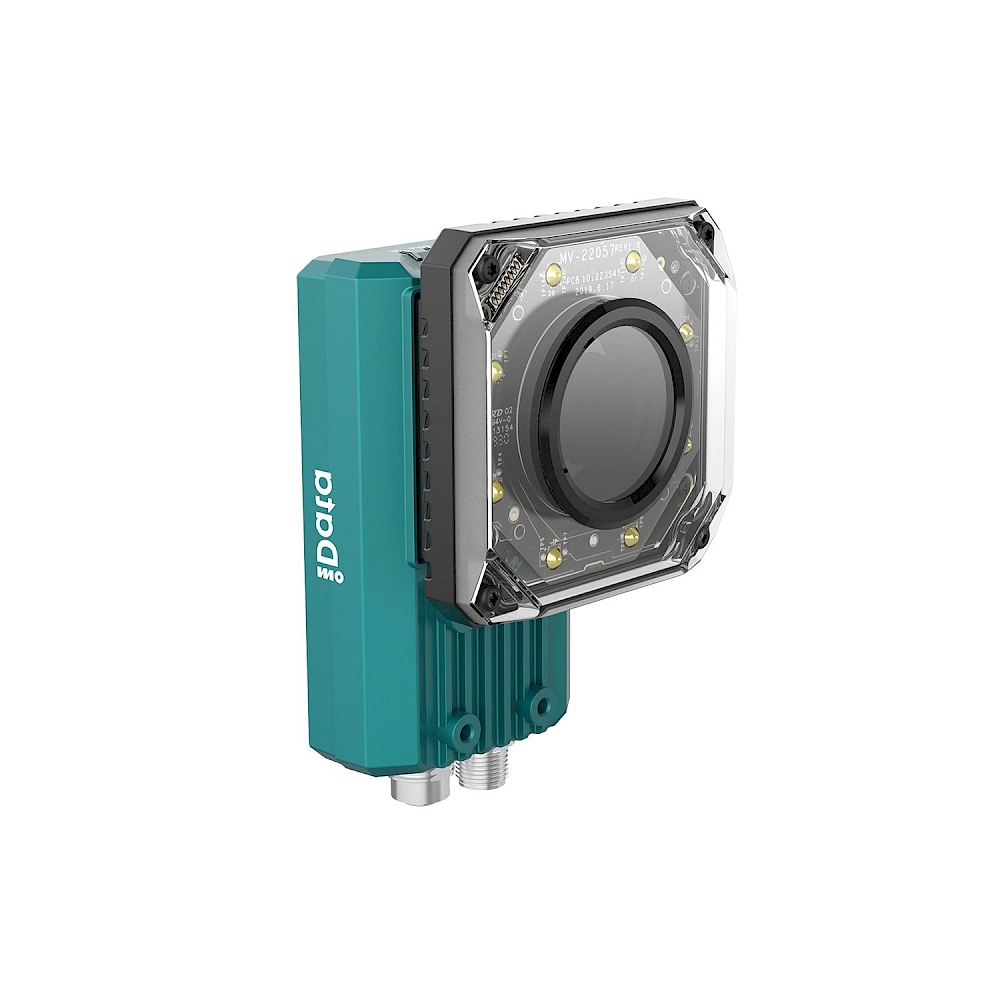

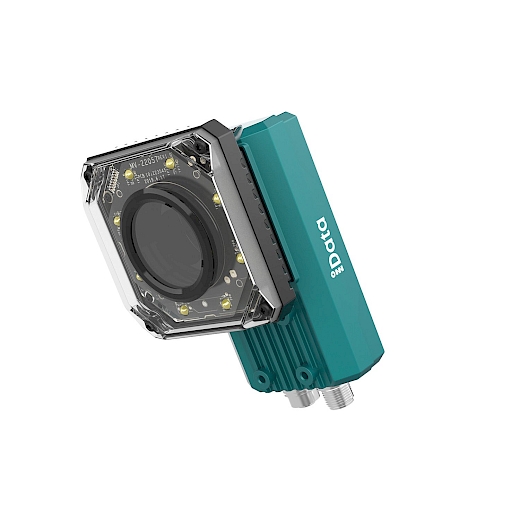

iData DM5000-W0612WBT1000 Fixed Industrial Code Reader
iData DM5000-W0612WBT1000
Ultra-High Resolution 6.3 MP Industrial Fixed Reader - 12mm Ultra-Wide Lens
The iData DM5000-W0612WBT1000 is a high-performance industrial 1D/2D code reader that combines a massive 6.3 MP (3072x2048) sensor with a 12mm motorized S-Mount lens. This specific "W0612" configuration offers the widest field of view in the series, making it the premier choice for reading multiple codes across large areas or at very close mounting distances where standard lenses cannot capture the full scene.
Technical Specifications
| Product Type | Fully Industrial Fixed Mount Reader |
| Scanning Technology | Area Imager (Motorized S-Mount) |
| Resolution | 3072 x 2048 Pixels (6.3 Mpx) |
| Lens / Illumination | 12mm Motorized Lens / White LED |
| Symbologies | 1D & 2D (QR, DataMatrix, PDF417, etc.) |
| Fieldbus Support | PROFINET IO, EtherNet/IP, TCP/IP, FTP, SFTP |
| Protection Rating | IP65 / IP67 (Industrial Grade) |
| Operating Temp. | -20°C to +50°C |
The 12mm Ultra-Wide Angle Advantage
The 12mm lens provides the maximum viewing angle for the DM5000 series. While many readers struggle with peripheral distortion, the 6.3 MP resolution ensures that even barcodes at the edges of the 12mm frame remain sharp and decodable, ideal for pallet scanning or multi-product trays.
Core Strengths
- Motorized Focus: Rapid software adjustment for multi-level lines.
- High-Speed Performance: Stable reading on rapid conveyors.
- Gigabit Connectivity: High-bandwidth data transfer (1000 Mbit/s).
Typical Use Cases
- Logistics: Automated sorting of variable package sizes.
- Manufacturing: Reading dense codes on large sub-assemblies.
- Food & Beverage: Full-tray product verification.
