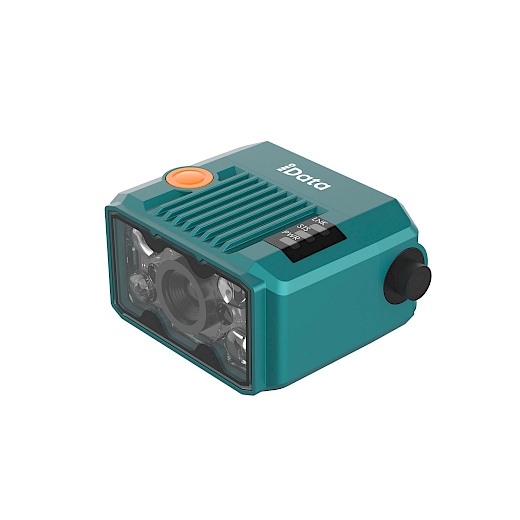

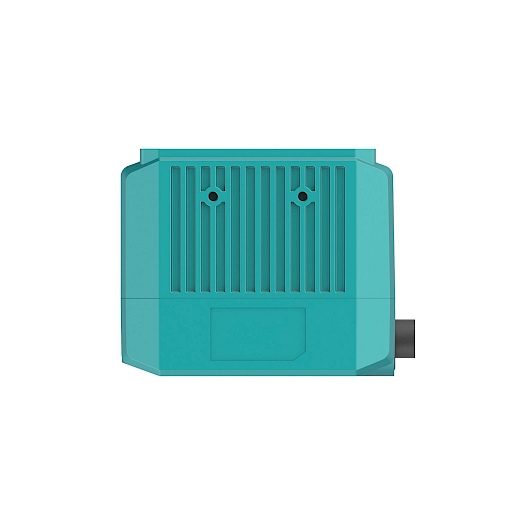

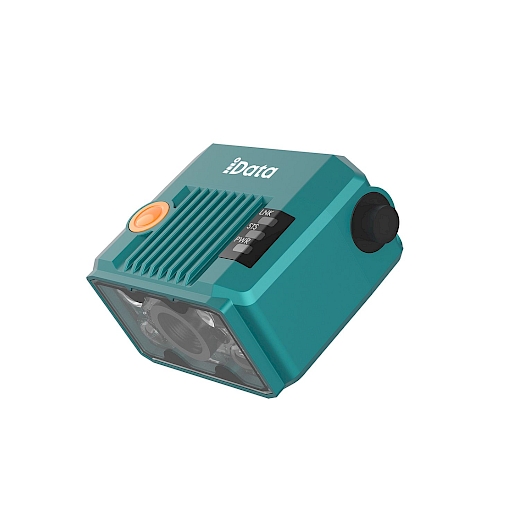

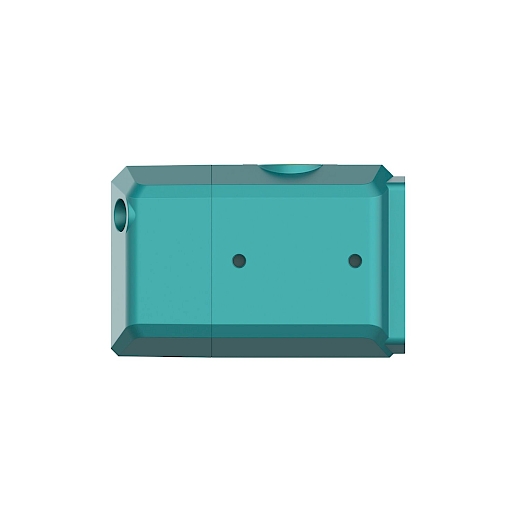

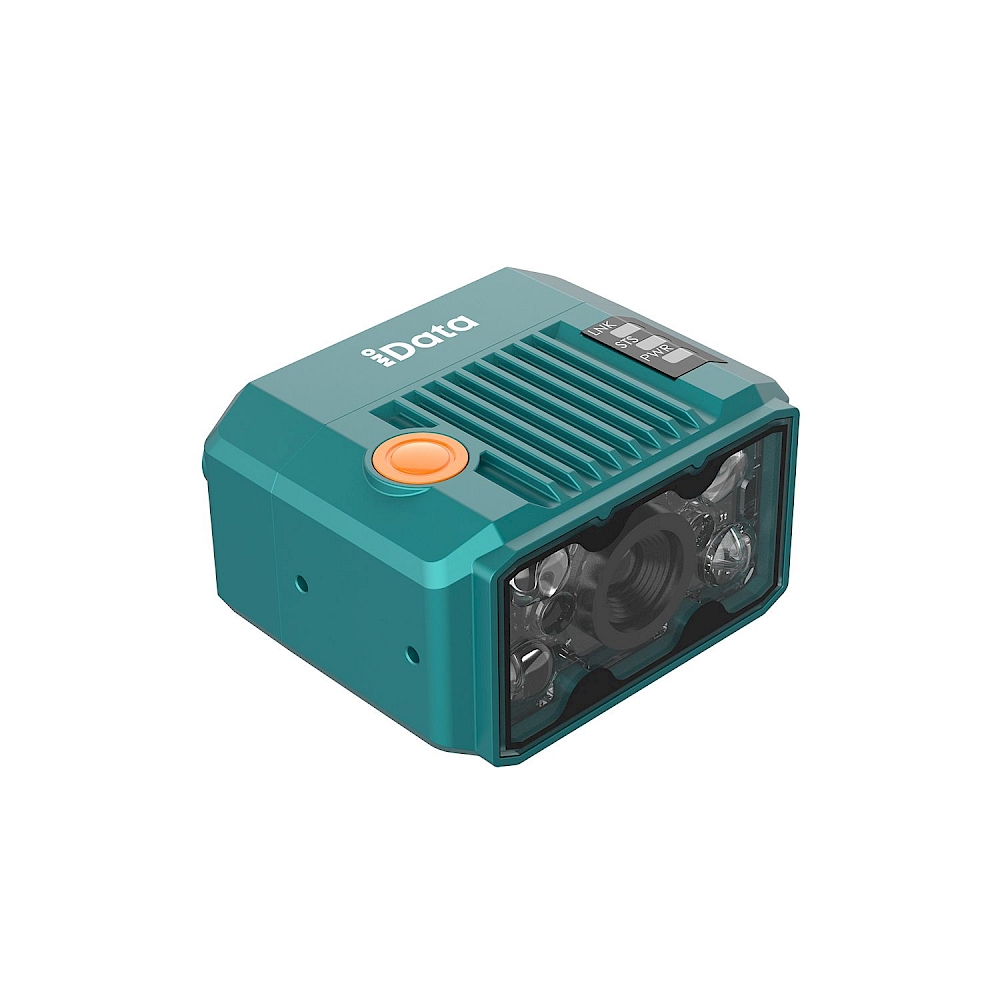

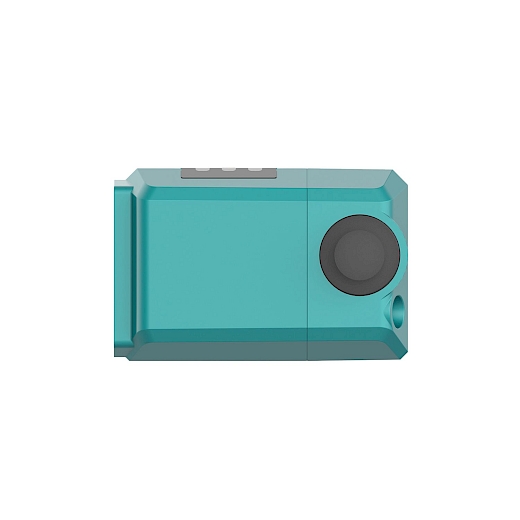

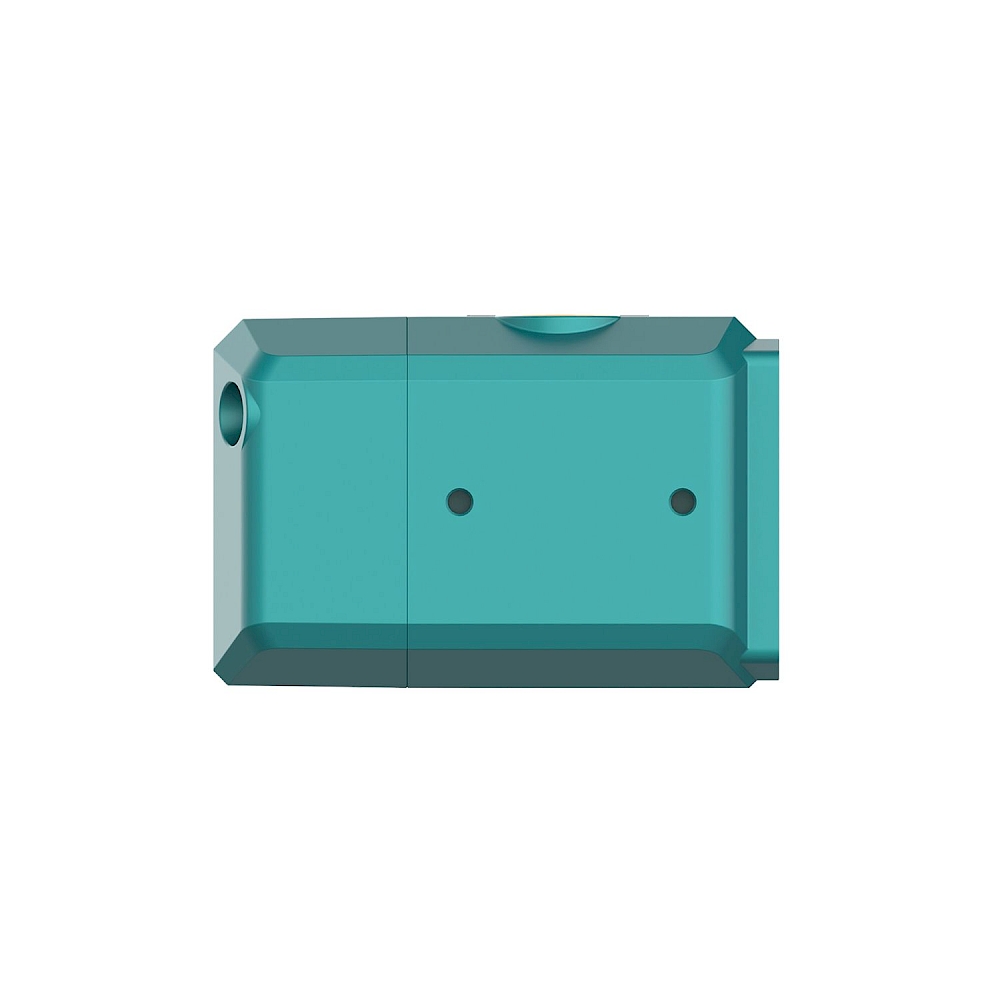

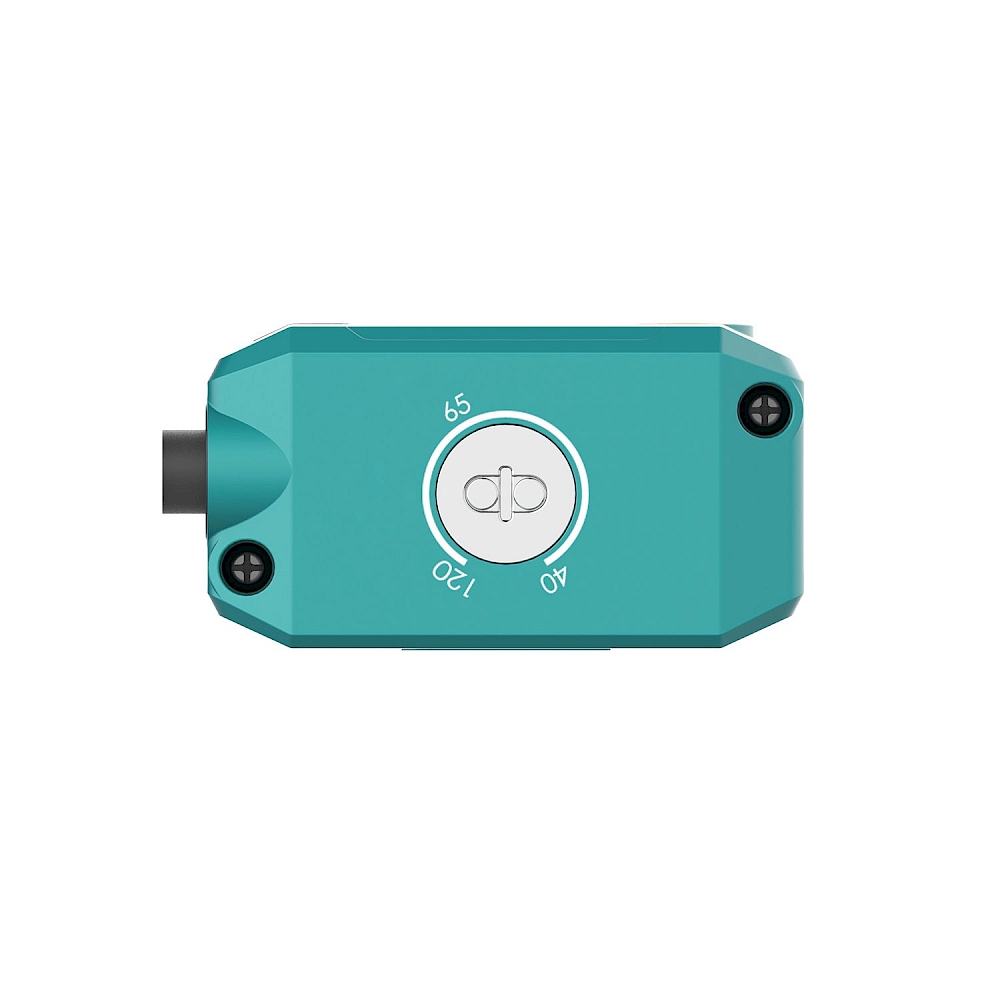

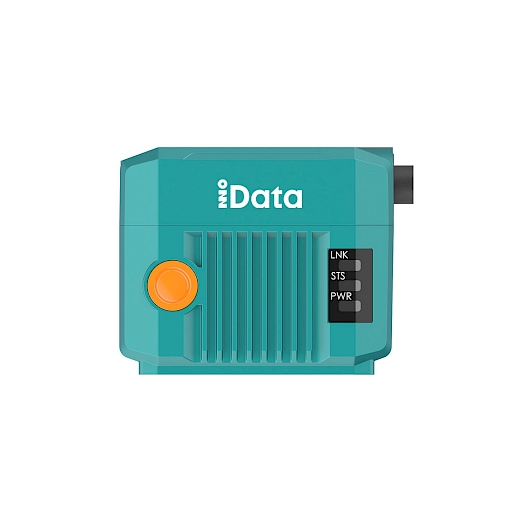

iData DM2000-W1606WB1000 Fixed Industrial Code Reader
iData DM2000-W1606WB1000
1.44 MP Wide-Angle Industrial Fixed Reader - 6mm Focal Lens
The iData DM2000-W1606WB1000 is a compact and highly efficient industrial stationary reader designed for close-range, wide-angle applications. With its 1.44 MP sensor and a 6mm S-Mount lens, it provides a significantly broader field of view than longer focal length models, making it the ideal choice for assembly lines with limited mounting space or applications requiring the capture of multiple codes in a single wide frame.
Technical Specifications
| Product Type | Fully Industrial Stationary Reader |
| Scanning Technology | Area Imager (S-Mount Lens) |
| Resolution | 1408 x 1024 Pixels (1.44 Mpx) |

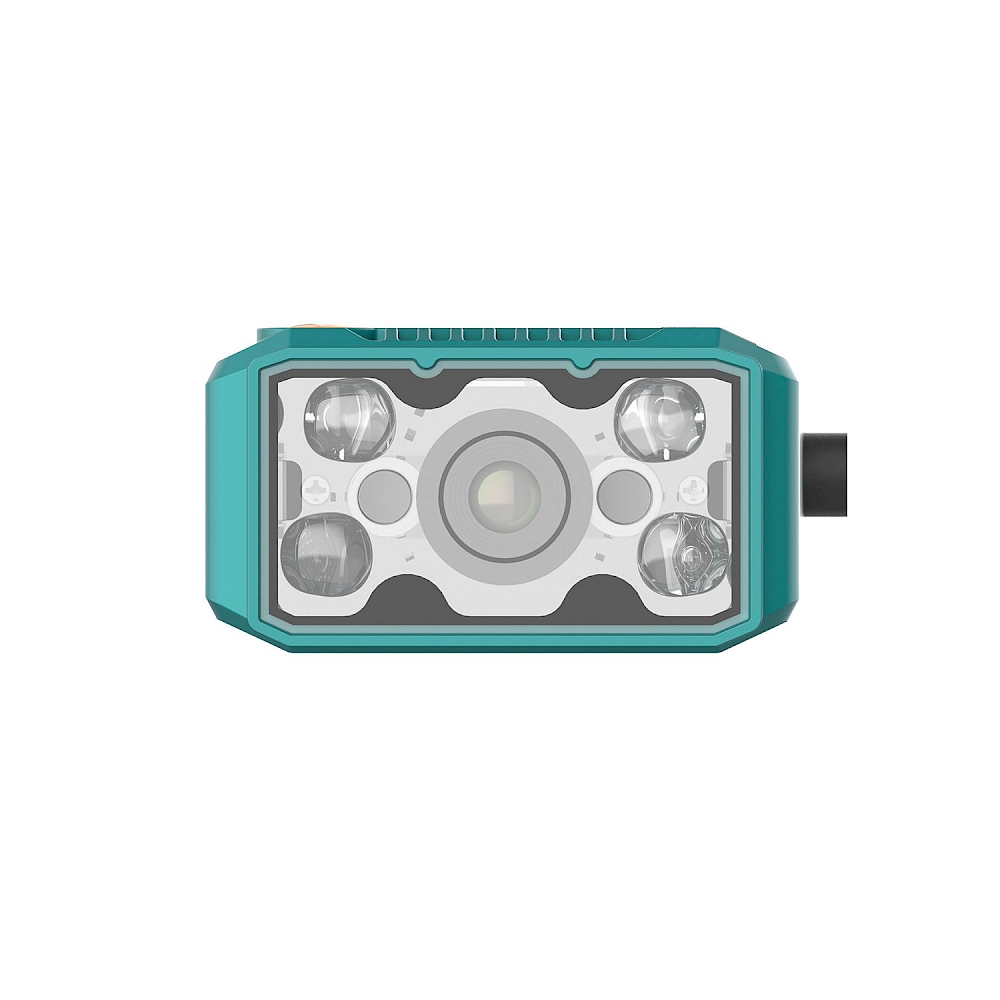

| Lens / Illumination | 6mm Wide Lens / White LED |
| Supported Codes | 1D & 2D (QR, DataMatrix, PDF417, etc.) |
| Industrial Protocols | PROFINET, EtherNet/IP, Modbus TCP, OPC UA |
| Interfaces | Gigabit Ethernet, RS-232, RS-422FD |
| Protection Class | IP65 / IP67 |
| Operating Temp. | -20°C to +50°C |
The 6mm Wide-Angle Advantage
The 6mm focal length allows the DM2000 to see a much larger area at a shorter distance than the 12mm or 25mm versions. This makes it perfect for conveyor-side mounting where the scanner must capture codes on products passing very close to the lens.
Core Strengths
- High-Speed Logic: Decodes moving codes with zero latency.
- Advanced Protocols: Native OPC UA for direct ERP/MES link.
- Compact Footprint: Easy to integrate into existing machinery.
Primary Applications
- Electronics: Scanning large trays of PCBs.
- Packaging: Close-range label verification.
- Logistics: Document and small parcel tracking.
