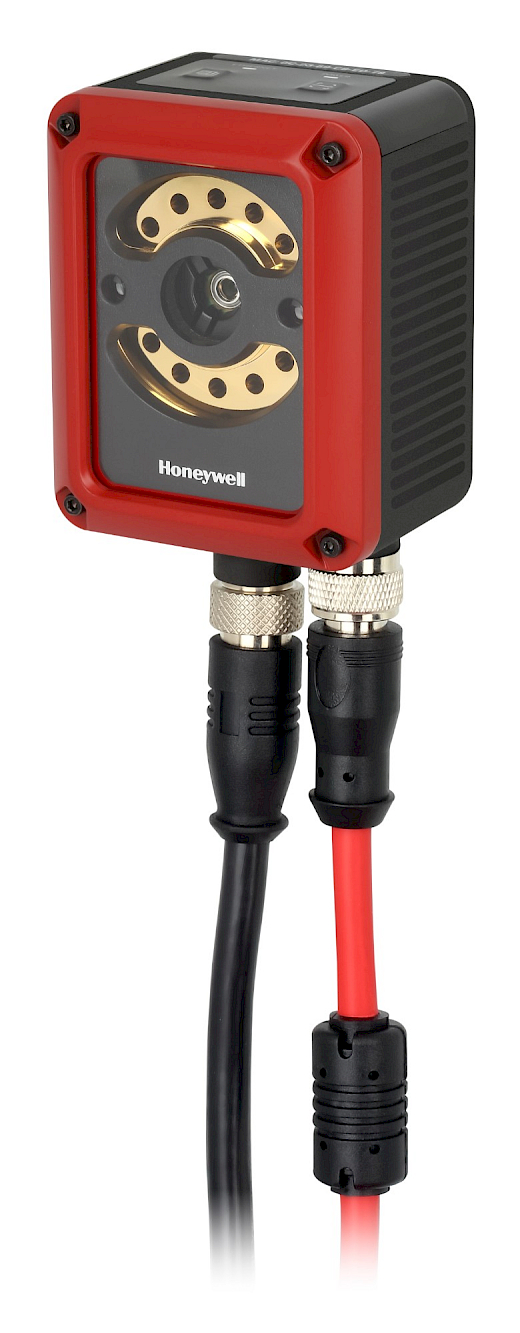

Honeywell HF811-01WT00004K-R Fixed Industrial Code Reader
Product Code
HF811-01WT00004K-R
Brands
The Honeywell fixed code reader family is fully customizable with different reader types and resolution options, easily adapting to any application. You can always reach us between 08:00 - 18:00 on weekdays regarding your needs and demands.
Lighting Type
White Light
Compatible / Compact
Compact
Image Filter Support
None
Communication Types
Ethernet IP
Communication Types
FTP
Communication Types
Modbus TCP
Communication Types
Profinet
Communication Types
RS232
Communication Types
TCP/IP
Communication Types
NTP
Device IP Class
IP67
Internal Program Support
ST
Lens Type
LQL (Liquid Lens)
Lens Size
Narrow Angle
Manual Code Reader Integration
No
Master-Slave Build Support
Yes
Readable Code Types
1D
Readable Code Types
2D
Readable Code Types
Postal
Readable Code Types
Stacked
Readable Code Types
DPM
Resolution
2.07 MPX (1920x1080 PX)
Product Description
Honeywell HF811-01WT00004K-R
High-Performance 2.0 MP Fixed Industrial Reader - White Lighting
The Honeywell HF811 (White Lighting version) is a professional-grade 1D/2D fixed industrial imager. Designed for maximum precision on high-speed production lines, it utilizes White LED illumination to provide a natural color balance, making it exceptionally effective for reading multi-colored labels or codes on varying backgrounds where specialized monochromatic light might fail.
Technical Specifications
| Product Type | Fully Industrial Fixed Code Reader |
| Scanning Technology | Area Imager with Liquid Lens (Autofocus) |
| Resolution | 1920 x 1080 Pixels (2.0 Mpx) |
| Optical Lens / Lighting | Narrow Angle / White LED Illumination |
| Symbologies | 1D & 2D (QR, DataMatrix, PDF417, etc.) |
| Connectivity | Ethernet (TCP/IP, FTP, PROFINET IO, EtherNet/IP), Serial RS-232 |
| Protection Rating | IP65 / IP67 |
| Operating Temp. | -20°C to +50°C |
| Warranty | 2 Years against manufacturing defects |
The White Lighting Advantage
White lighting is preferred in Packaging and Food & Beverage industries. It ensures high contrast across a wide spectrum of packaging colors and allows for secondary validation of label colors during the scanning process.
Why HF Series?
- High-Speed Stability: Reliable capture on fast-moving belts.
- Rugged Build: Dust and water resistance for harsh floors.
- Native Fieldbus: Fast deployment with PROFINET and EtherNet/IP.
Target Use Cases
- Intralogistics: Sorting and tracking systems.
- Pharma: High-density DataMatrix and UDI.
- Electronics: Component-level traceability.
