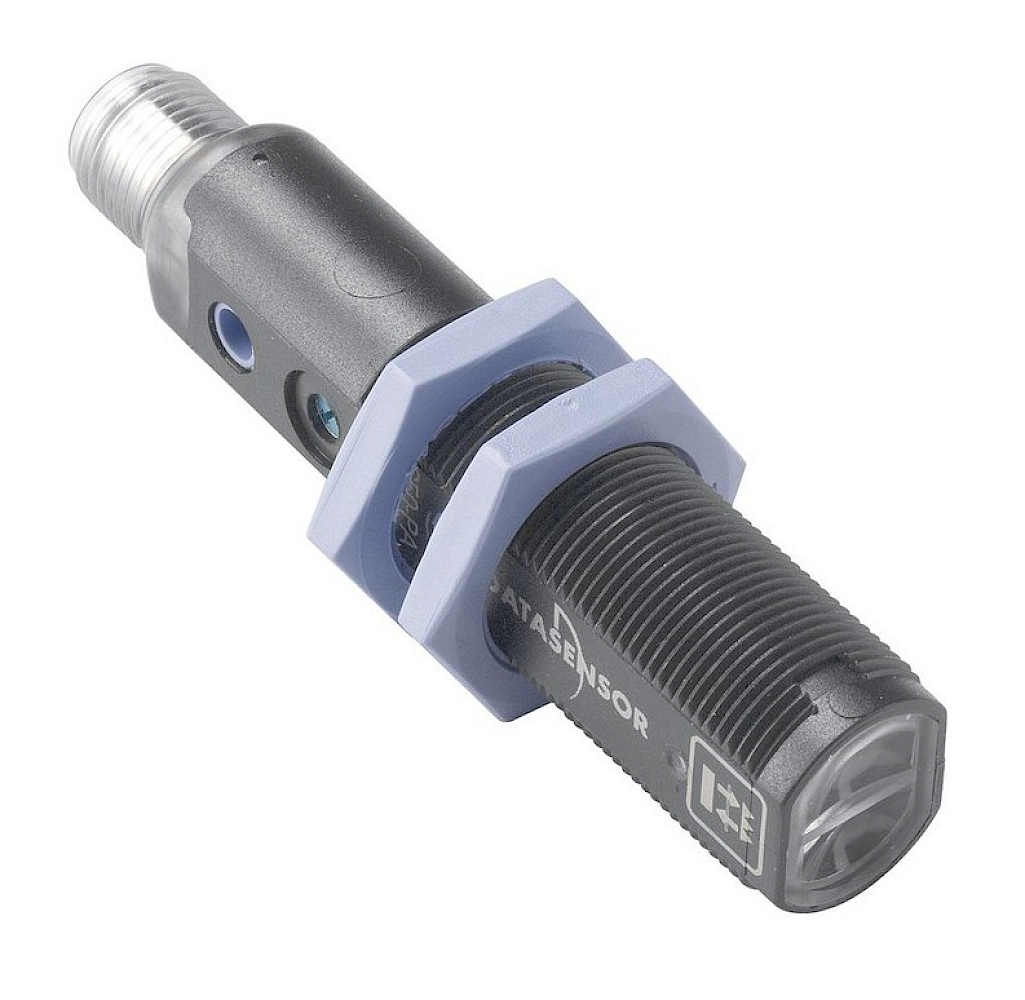

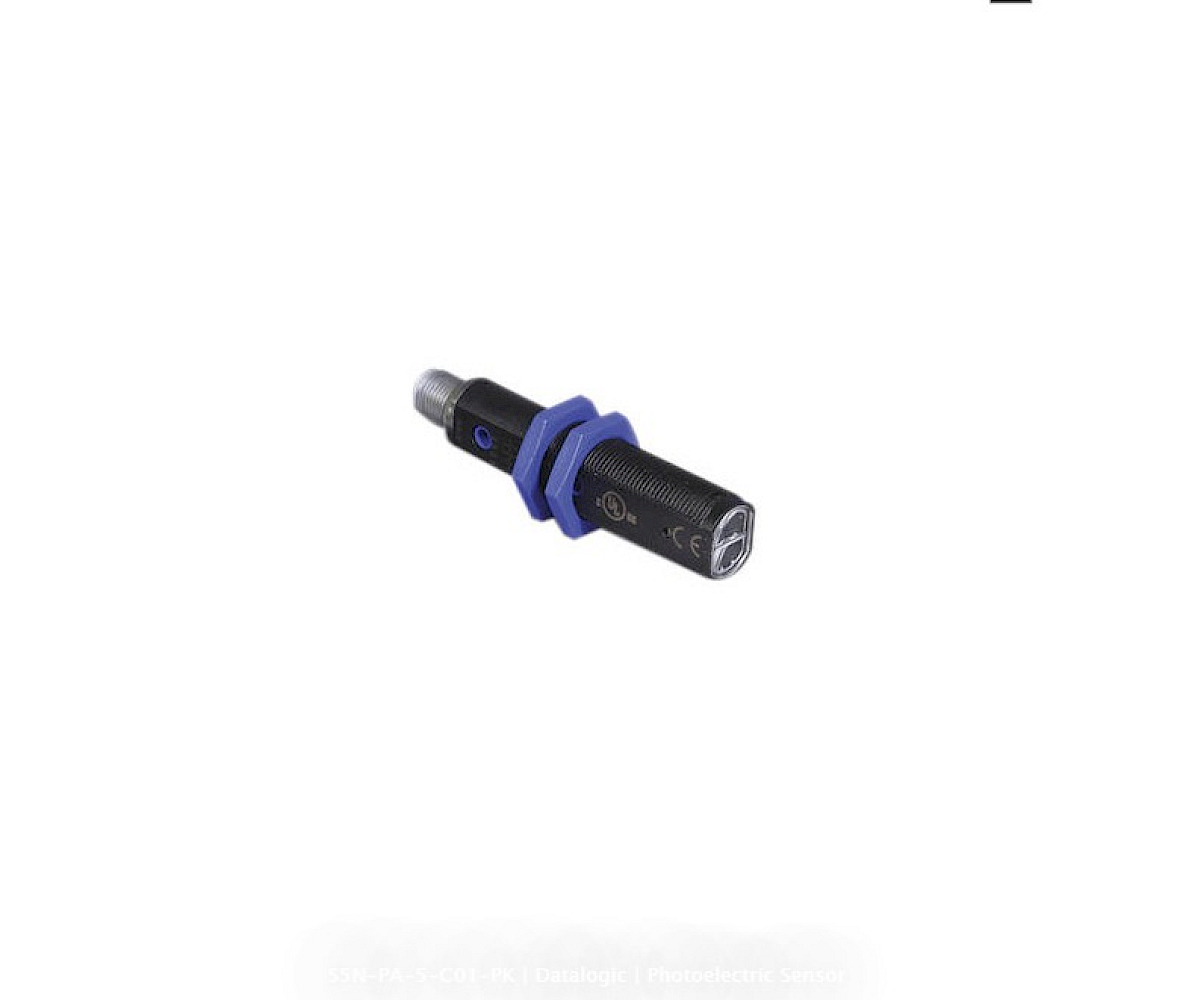

Datasensing S5N-PA-5-C01-PK 0..400mm M18 Flat Head PNP (NO/NC) M12 Diffuse Optical Sensor with 4 Pin Connector
Product Code
S5N-PA-5-C01-PK
Brands
Optical Sensors
A-Connector Angle
Straight
A-Connector Connection
M12
Sensing Distance
400 mm
Number of Connection Pins
4 Pin
Connection Type
With connector
Body Type
M18
Device IP Class
IP67
Light Type
LED Red Light
Contact Type
No/Nc
Sensor Type
Reflection from the Object
Output Type
PNP
Product Description
Datasensing S5N-PA-5-C01-PK Technical Specifications
Diffuse Reflective M18 Sensor | 400mm Range | PNP NO/NC
| Feature | Description |
|---|---|
| Housing Diameter | M18 x 1 (Flat Head) |
| Operating Distance | 0...400 mm (Adjustable) |
| Operating Principle | Diffuse Reflective (Cisimden Yansımalı) |
| Output Type | PNP |
| Contact Type | Complementary NO/NC |
| Connection | M12 4-pin Connector |
| Operating Temperature | -25°C to +55°C |
| Housing Material | Plastic (PBT) |
