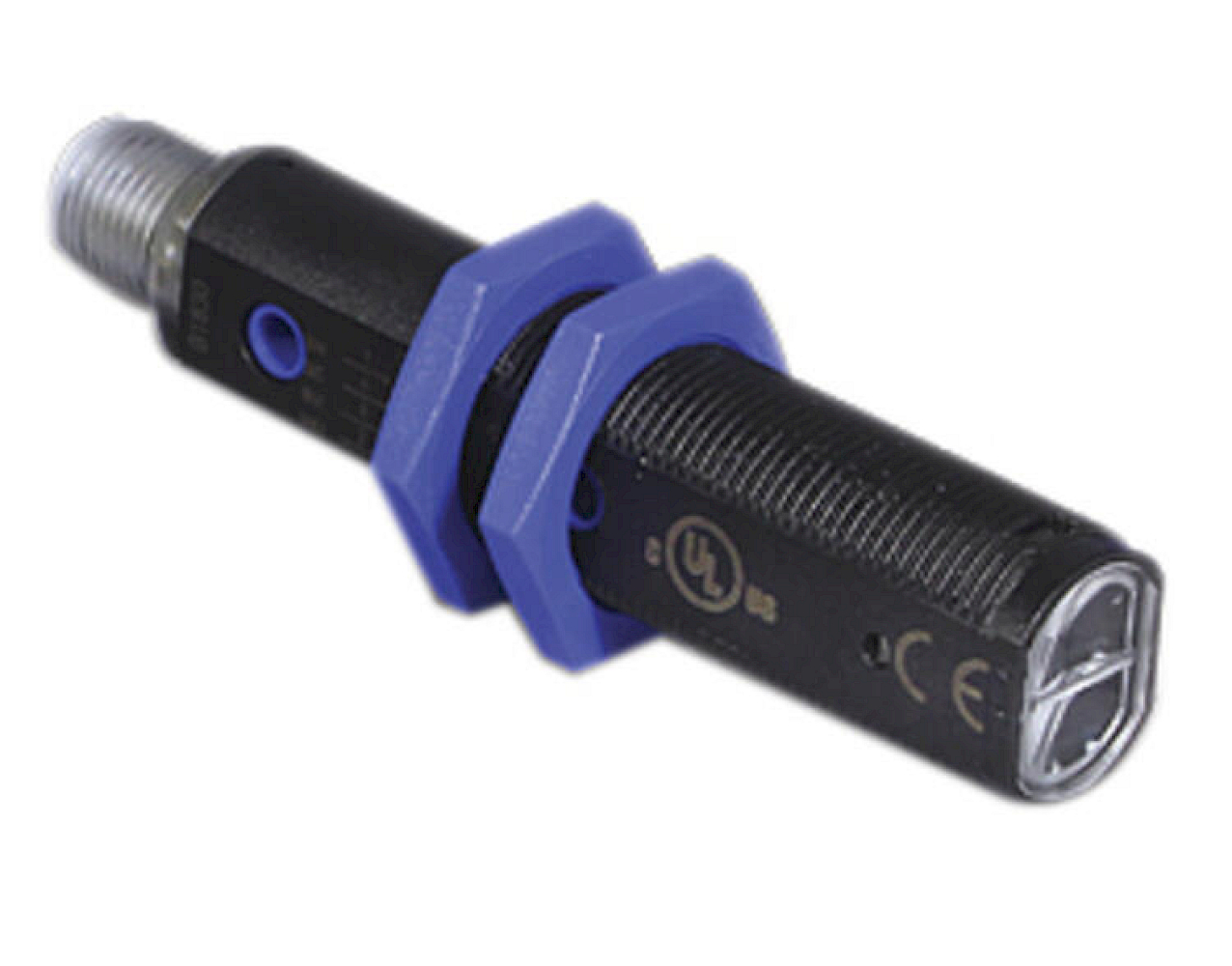

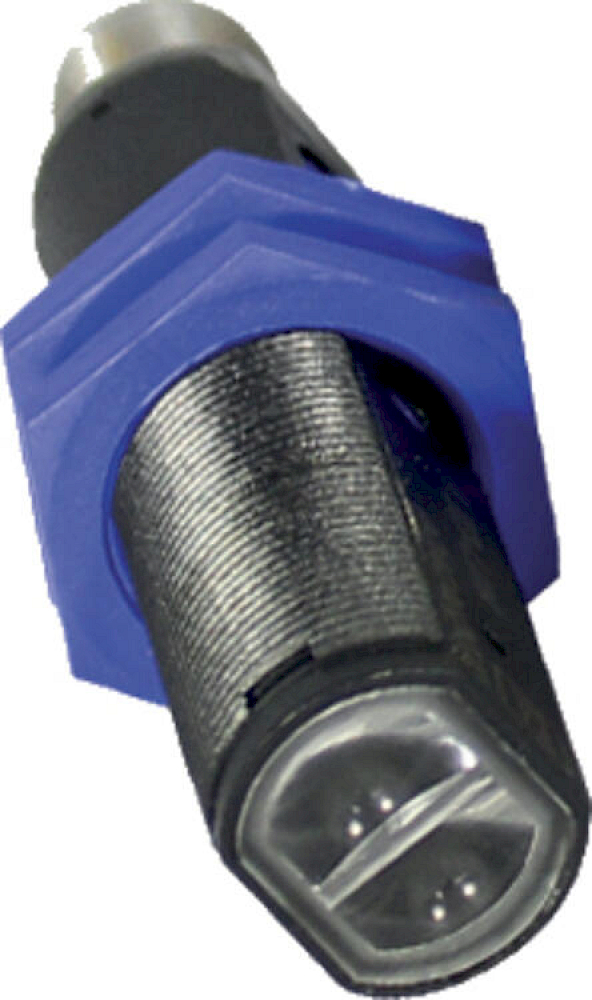

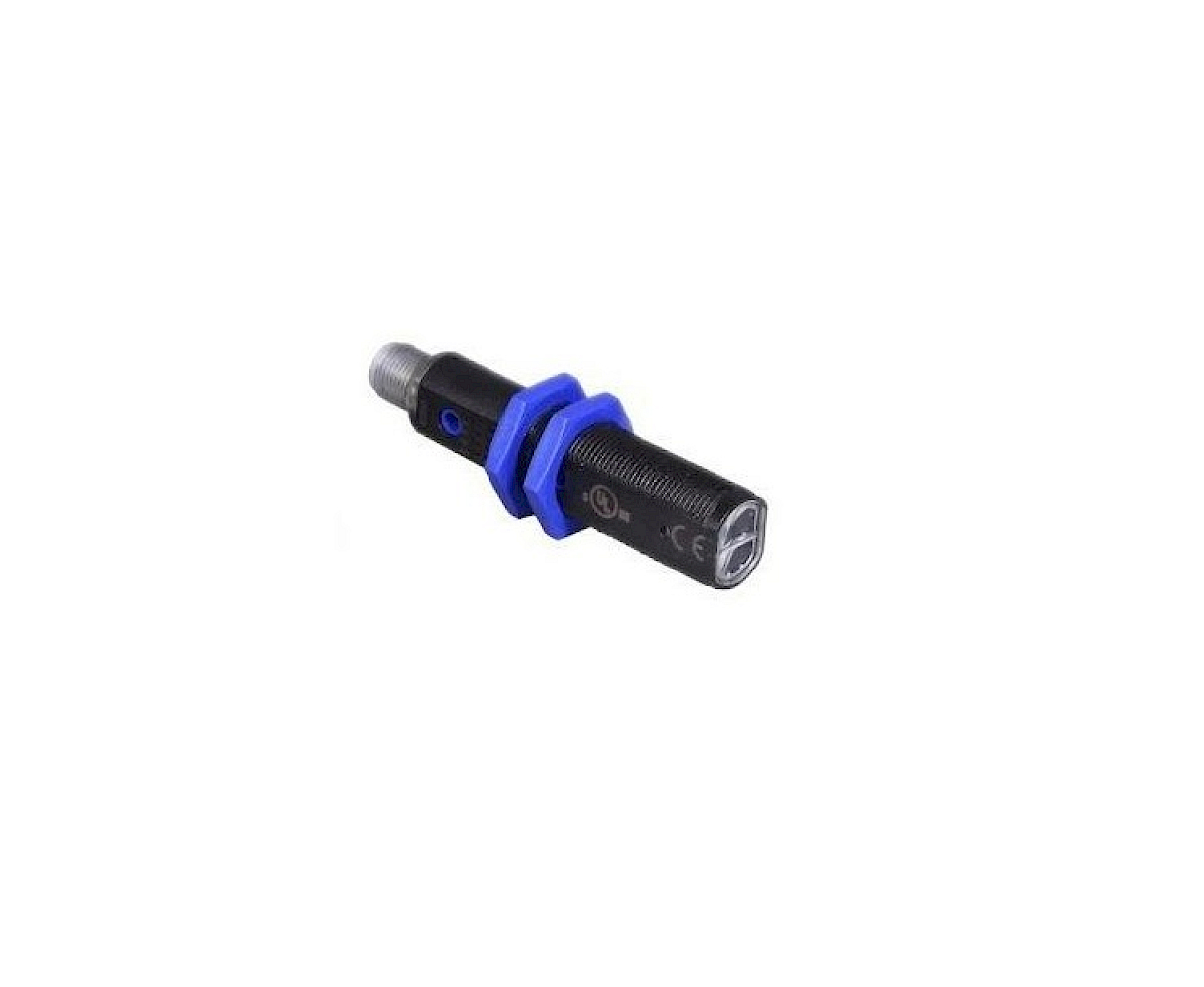

Datasensing S5N-PA-5-A00-PK 0..3500mm M18 Flat Head PNP (NO/NC) M12 Retro-Reflective Optical Sensor with 4 Pin Connector
Product Code
S5N-PA-5-A00-PK
Brands
Optical Sensors
A-Connector Angle
Straight
A-Connector Connection
M12
Sensing Distance
3500 mm
Number of Connection Pins
4 Pin
Connection Type
With connector
Body Type
M18
Device IP Class
IP67
Light Type
LED Red Light
Contact Type
No/Nc
Sensor Type
Reflective
Output Type
PNP
Product Description
Datasensing S5N-PA-5-A00-PK Technical Specifications
Retroreflective M18 Sensor | 3.5m Range | PNP NO/NC
| Feature | Description |
|---|---|
| Housing Diameter | M18 x 1 (Standard Thread) |
| Operating Distance | 0...3500 mm (with R2 reflector) |
| Output Type | PNP |
| Switching Function | Complementary NO/NC |
| Connection Type | M12 4-pin Connector |
| Light Source | Infrared LED |
| Operating Temperature | -25°C to +55°C |
| Enclosure Rating | IP67 |
