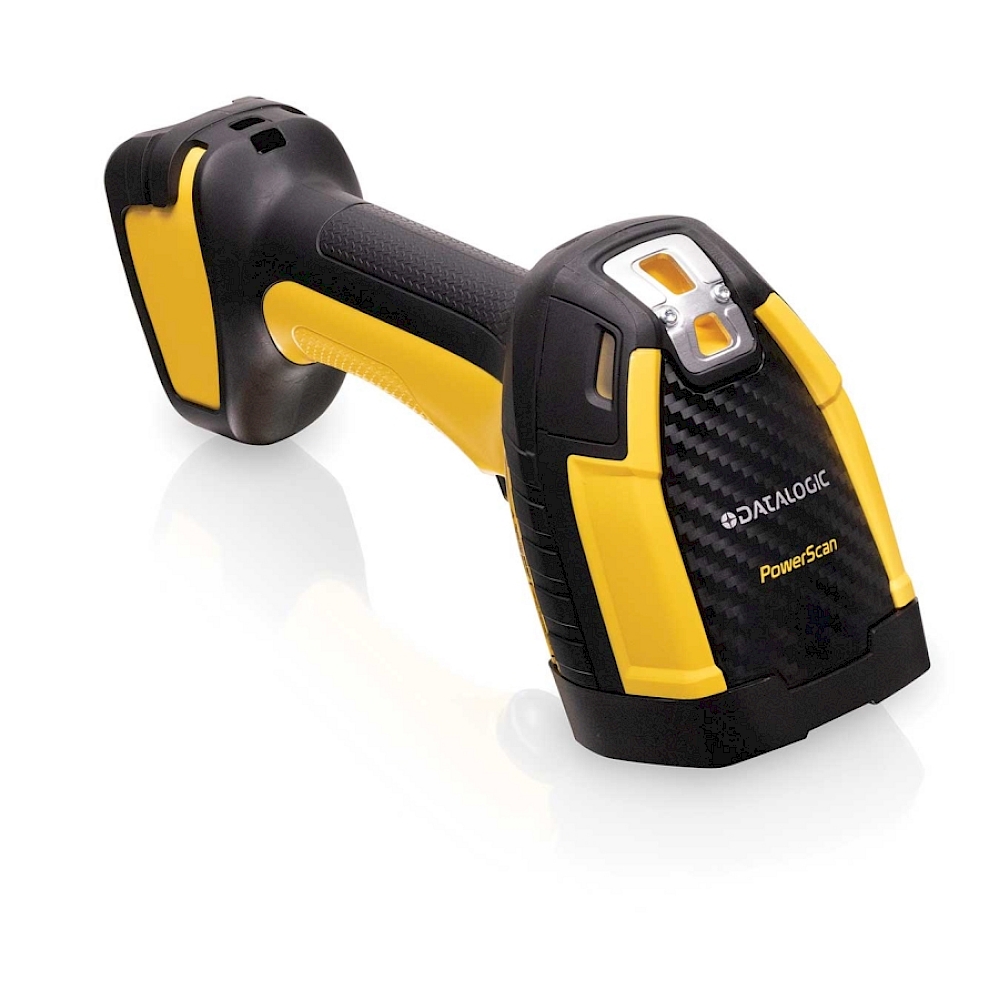

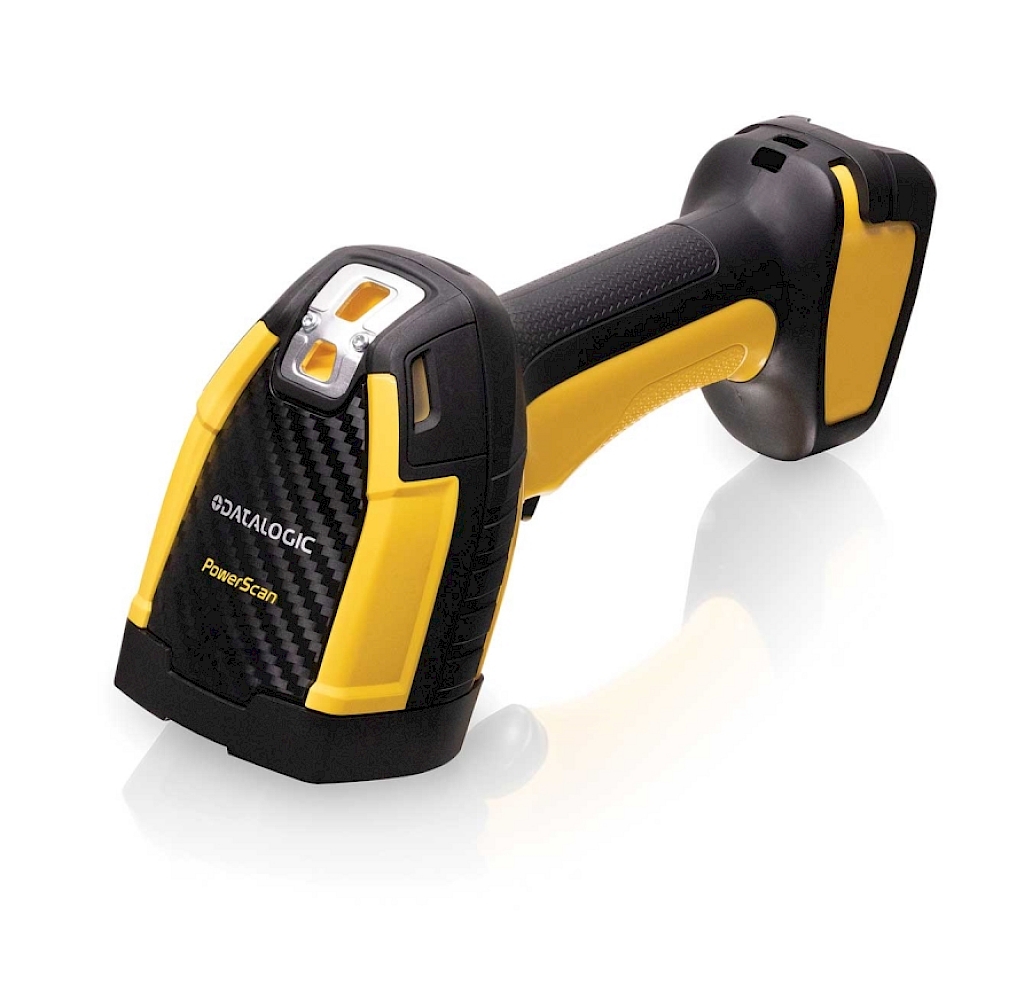

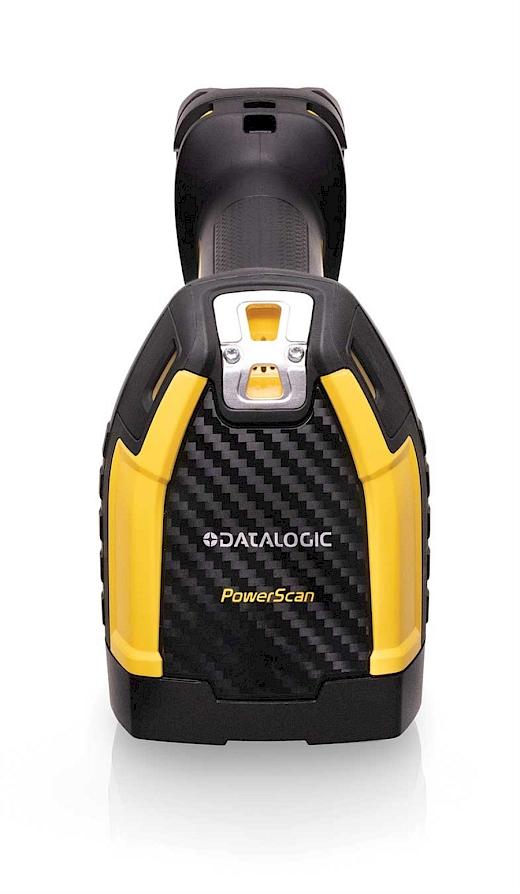

Datalogic PM9600-HP433RBK20 HP RS232 Kit Full Industrial Handheld Scanner
Datalogic PowerScan PM9600-HP433RBK20
Full Industrial Wireless HP Kit | RS232 Serial Interface | IP67 Ruggedized
Extreme Precision for Industrial Serial Workflows
The Datalogic PowerScan PM9600-HP (High Performance) is an ultra-rugged cordless handheld scanner engineered to provide high-speed 1D/2D decoding in the most punishing environments. The HP imaging technology is optimized to read high-density barcodes and difficult labels—including those that are worn, low-contrast, or covered by reflective plastic film—with exceptional reliability.
This RS232 Kit is the definitive choice for integrating wireless mobility into industrial systems that rely on serial communication. Using the Datalogic STAR Wireless System (433MHz), the device maintains a stable, long-range connection that is immune to Wi-Fi interference and capable of penetrating heavy metal shelving and industrial obstacles.
Key Advantages of the PM9600-HP RS232 Kit
HP High-Density Optics
Exceptional decoding of very small or dense 1D/2D codes typically found in electronics and component tracking.
Direct Serial Connectivity
Native RS232 support for seamless integration with PLCs, legacy machinery, and industrial controllers.
STAR Wireless Liberty
433MHz frequency provides superior range and signal stability in metal-heavy plant environments.
Ultra-Rugged Sealing
IP65 and IP67 ratings ensure the device is completely dust-tight and can survive temporary immersion in water.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Full Industrial Cordless Handheld Kit |
| Imaging Technology | Area Imager (HP - High Performance) |
| Supported Codes | 1D & 2D (QR, DataMatrix, PDF417, etc.) |
| Kit Interface | RS232 (Serial); USB (Optional) |
| Wireless Technology | Datalogic STAR Wireless (433 MHz) |
| Protection Rating | IP65 / IP67 (Total Sealing) |
| Operating Temp. | -20°C to +50°C |
Target Applications
- Legacy PLC & CNC Connectivity: Sending data directly to machines that require RS232 input.
- Manufacturing & Assembly: Tracking high-density electronic components on the assembly line.
- Automotive Traceability: Reading barcodes on metal surfaces or oily/dirty environments.
- Heavy Industry & Outdoor: Material tracking in yards or plants with high vibration and impact risks.
