Datalogic PM9600-DKHP433RK30 HP 16 KEY TCP/IP - Profinet Kit Full Industrial Handheld Scanner

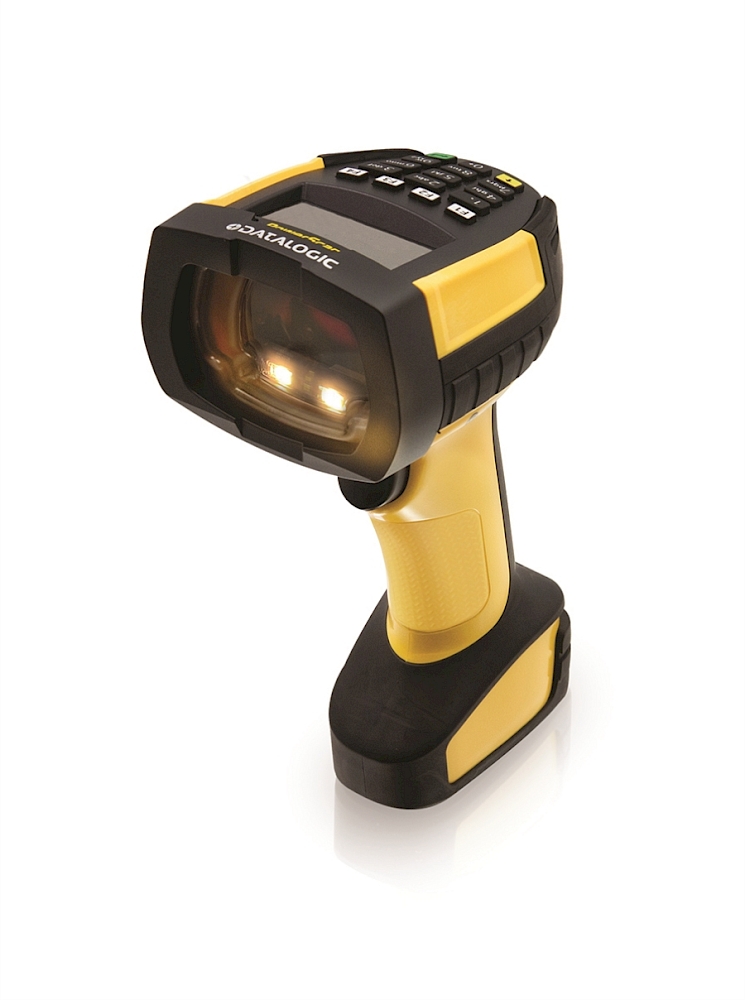

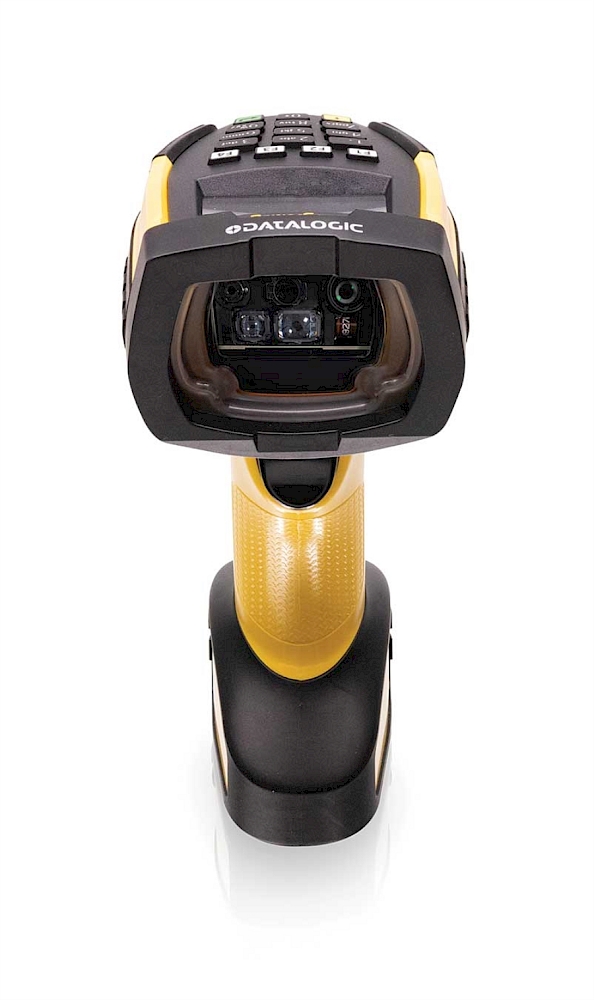

Datalogic PowerScan PM9600-DKHP433RK30
Industrial Wireless High Performance Kit | 16-Key Keypad & Display | Profinet | IP40
Precision Data Entry for Industry 4.0

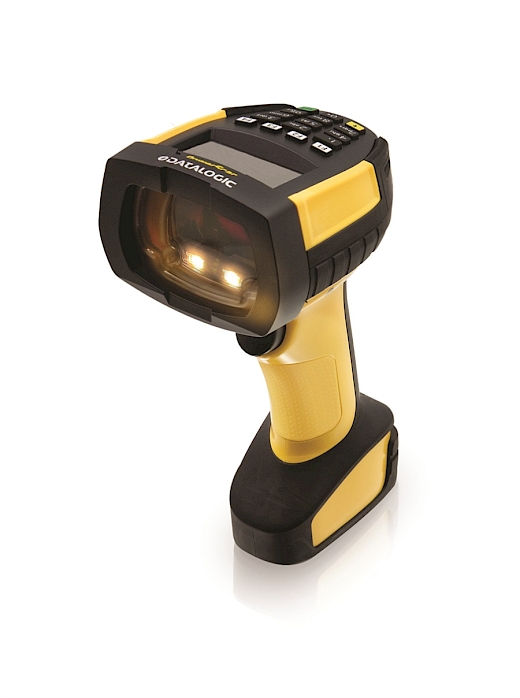

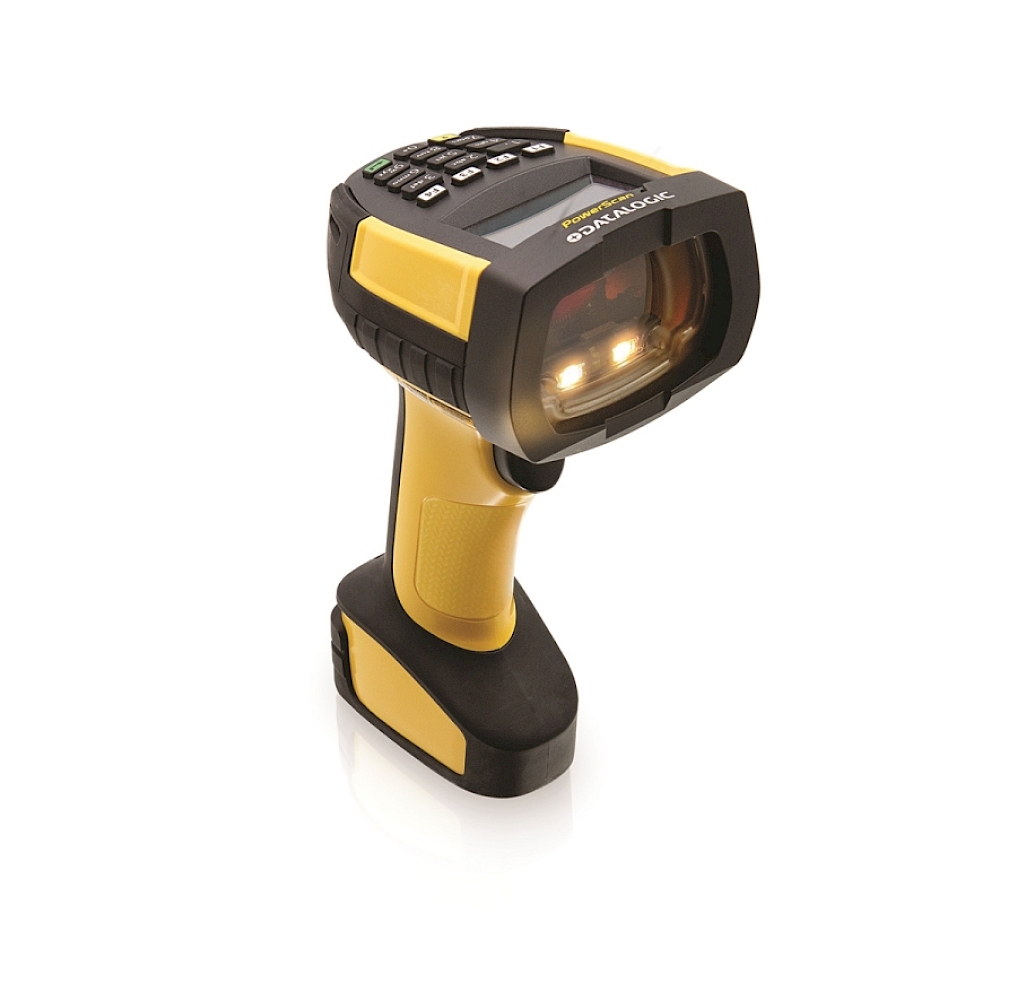

The Datalogic PowerScan PM9600-HP (High Performance) represents the pinnacle of industrial handheld data capture. Featuring an advanced HP imaging engine, this device excels at reading high-resolution barcodes, high-density 2D codes, and labels that are damaged, low-contrast, or covered by reflective film.

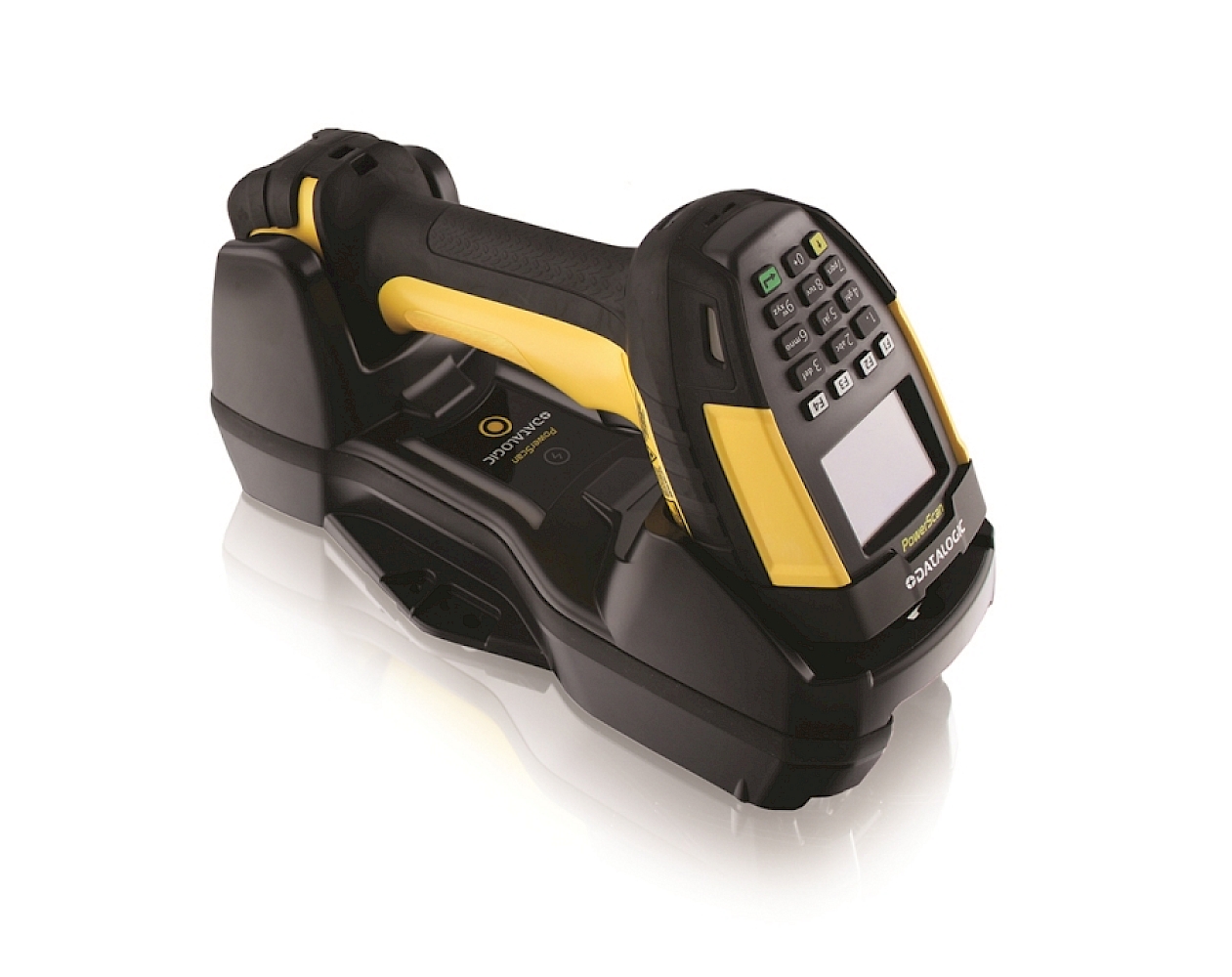

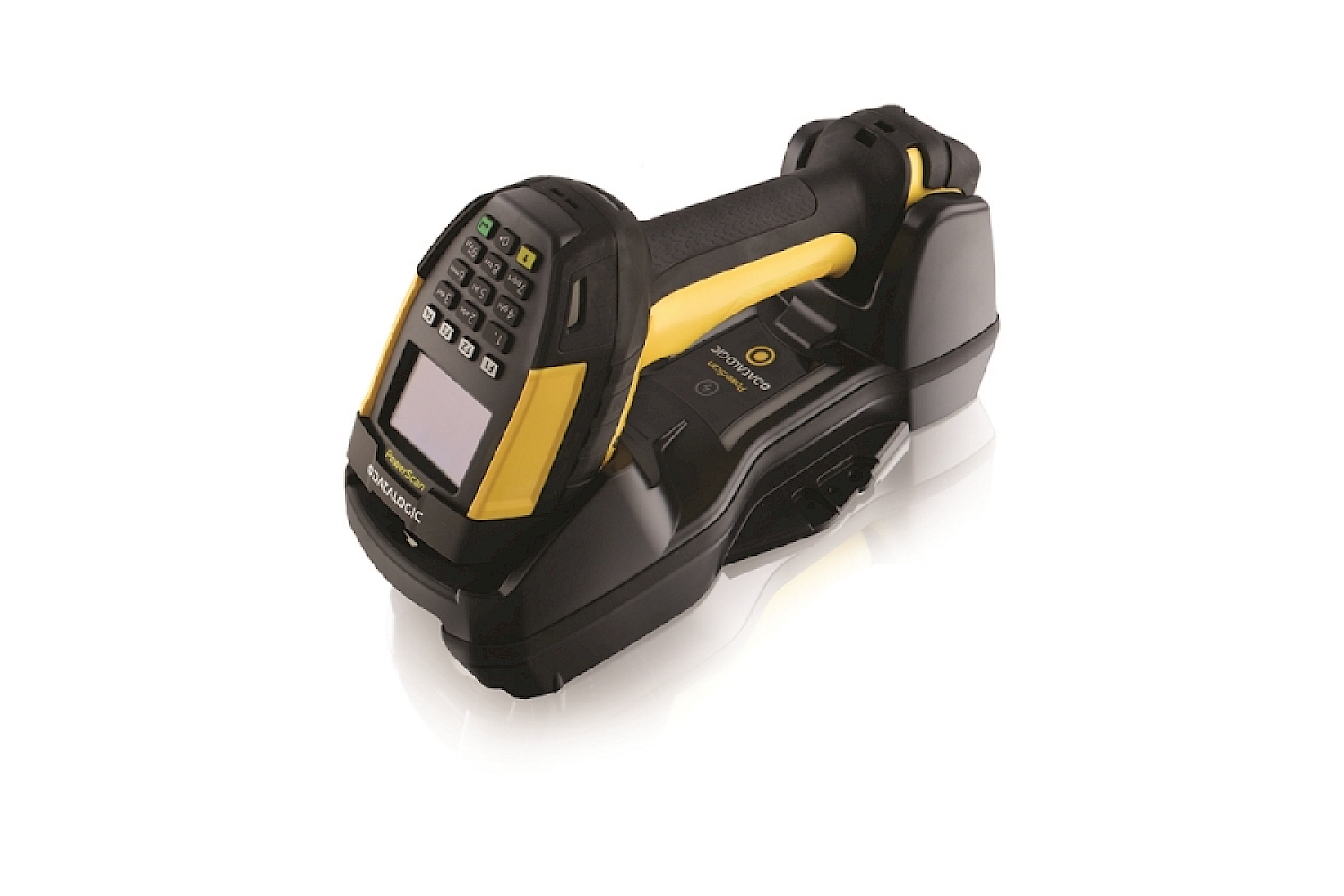

This kit is a true mobile terminal for the factory floor. With its 16-key alphanumeric keypad and graphic display, operators can perform real-time inventory adjustments and receive feedback directly from the system. The native TCP/IP and Profinet interface allows for direct integration into Siemens or other industrial Ethernet PLC loops, ensuring low-latency communication and total data transparency.
Key Advantages of the PM9600-HP Profinet Kit
HP Imaging Engine
Optimized for high-density codes (down to 2.5 mils) often found in electronics and precision manufacturing.

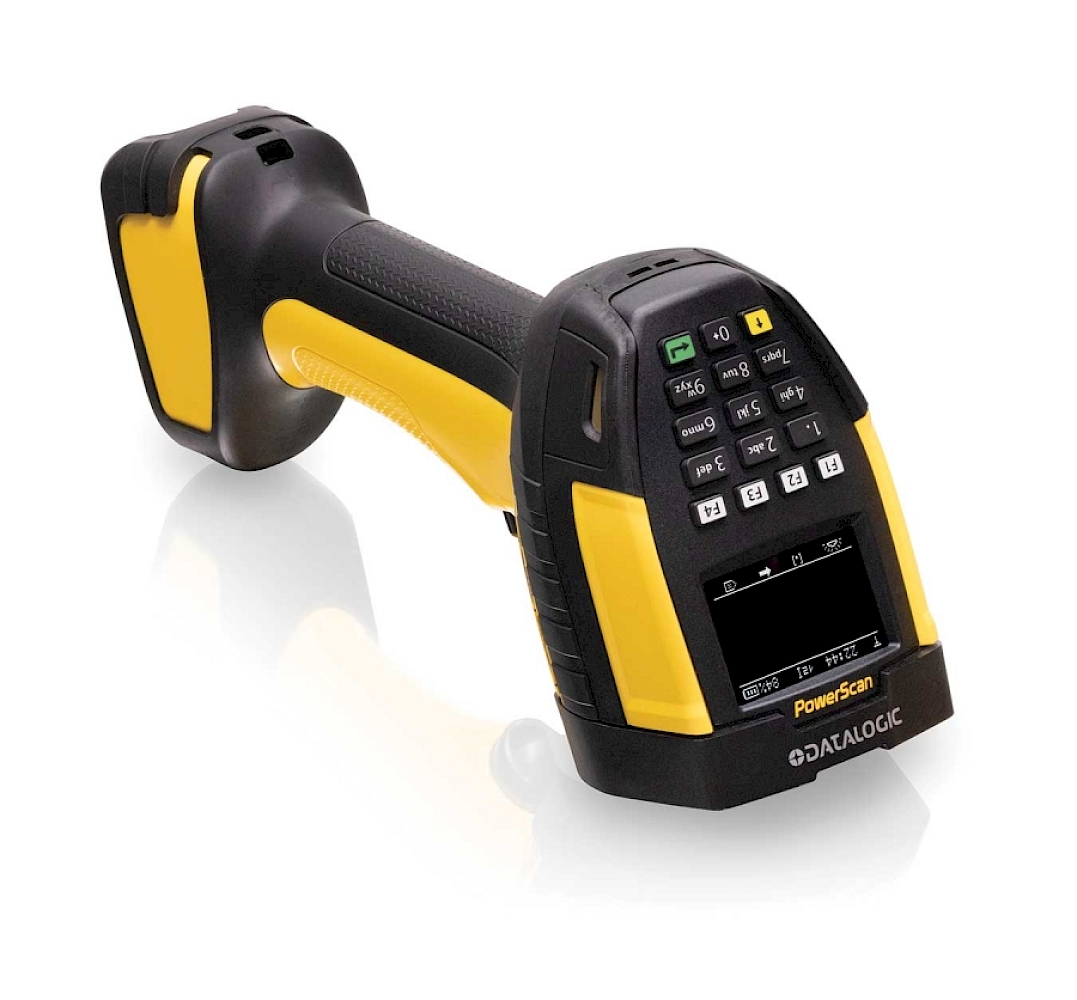

Interactive Terminal
Alphanumeric keypad enables manual entry of quantities, lot numbers, or operator IDs without a computer terminal.

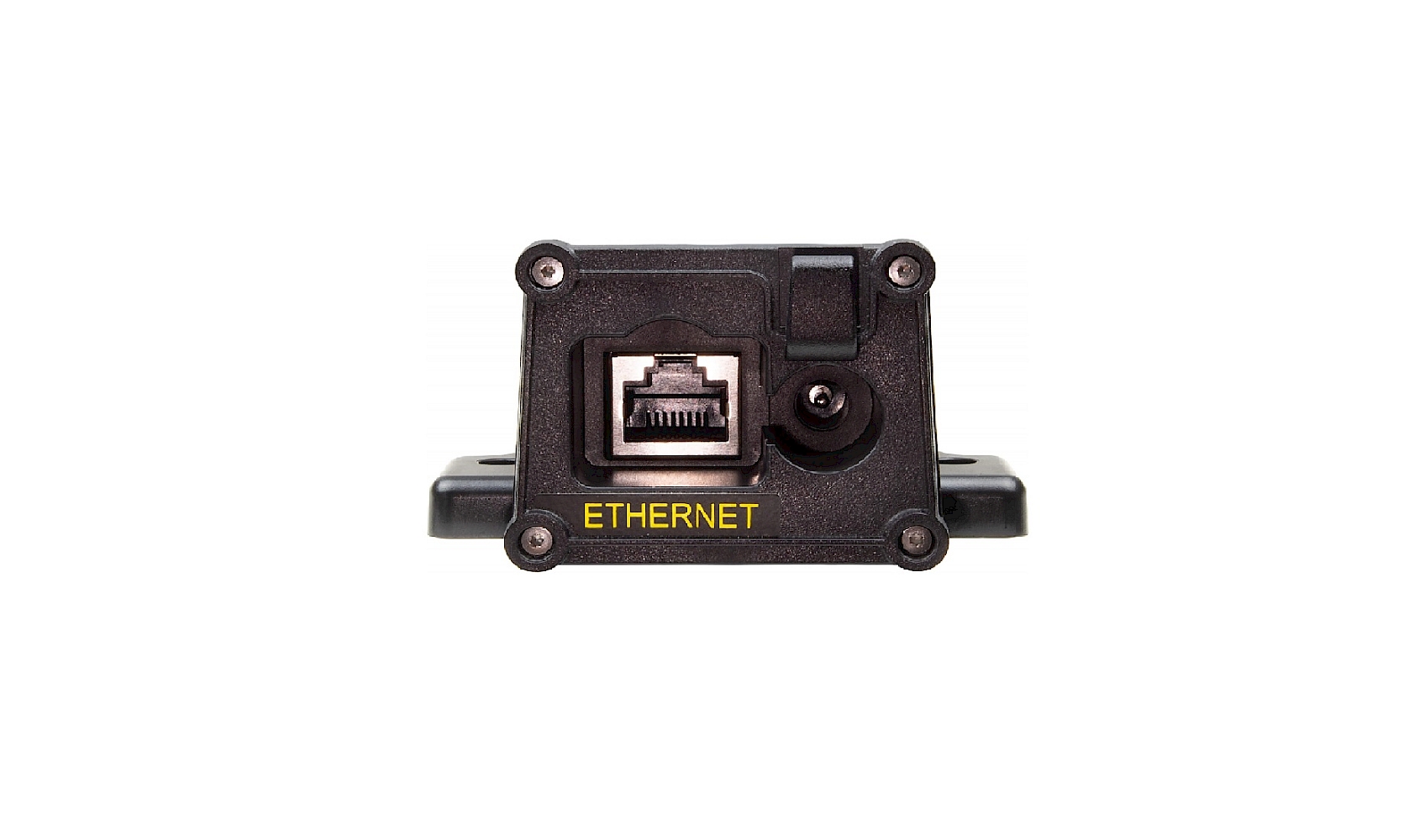

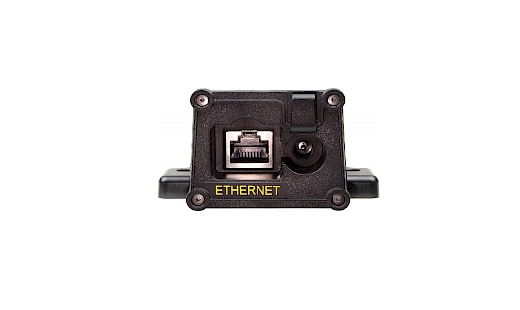

Native Profinet Port
Direct bridge to industrial Ethernet automation networks, reducing the cost of external protocol converters.
STAR Wireless Liberty
Proprietary 433MHz frequency ensures a paraxial, interference-free connection that penetrates warehouse obstacles.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Full Industrial Cordless 16-Key Kit |
| Scanning Technology | Area Imager (HP - High Performance) |
| User Interface | 16-Key Alphanumeric + 1.8" Graphic Display |
| Interface Protocol | TCP/IP - Profinet |
| Wireless Technology | Datalogic STAR Wireless (433 MHz) |
| Protection Class | IP40 (Optimized for Indoor Logistics) |
| Operating Temp. | -20°C to +50°C |
Target Applications
- Electronic Assembly: High-density code reading for component traceability.
- WIP Tracking: Direct PLC communication for real-time production monitoring.
- Indoor Logistics: Inventory picking and management in temperature-controlled warehouses.
- Quality Assurance: Manual data entry for defective parts via the alphanumeric keypad.
