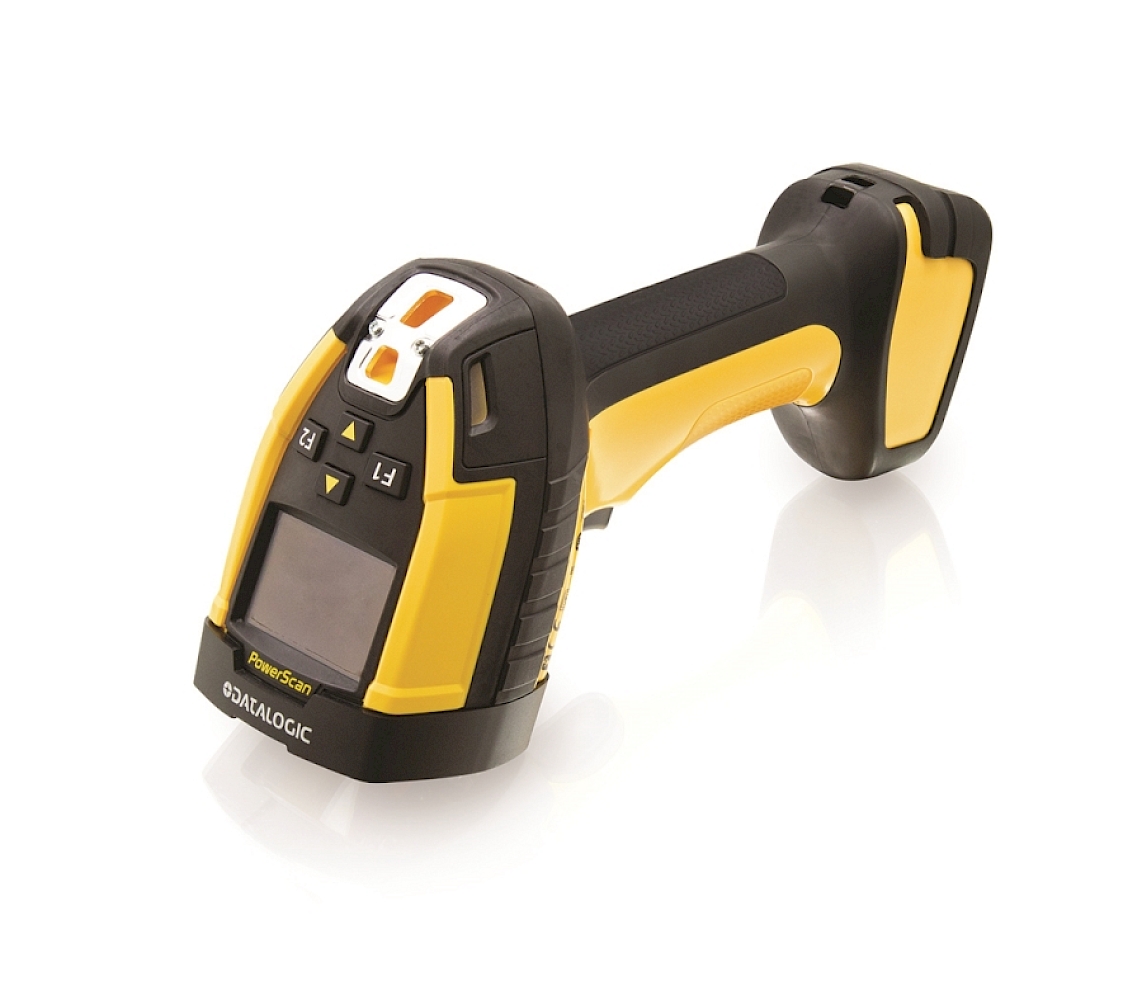

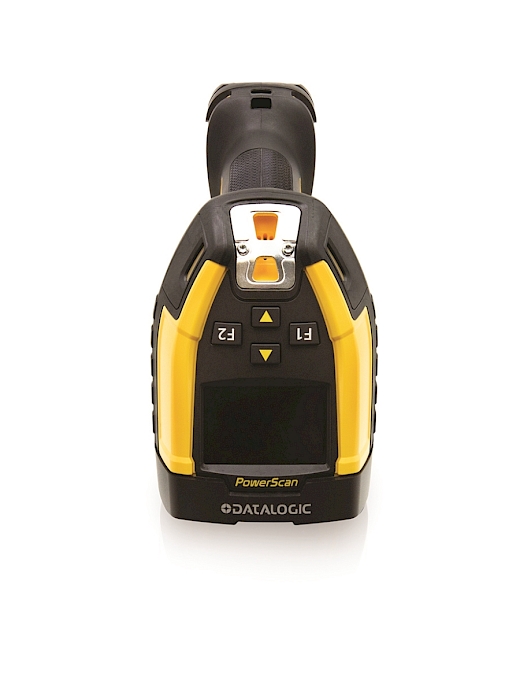

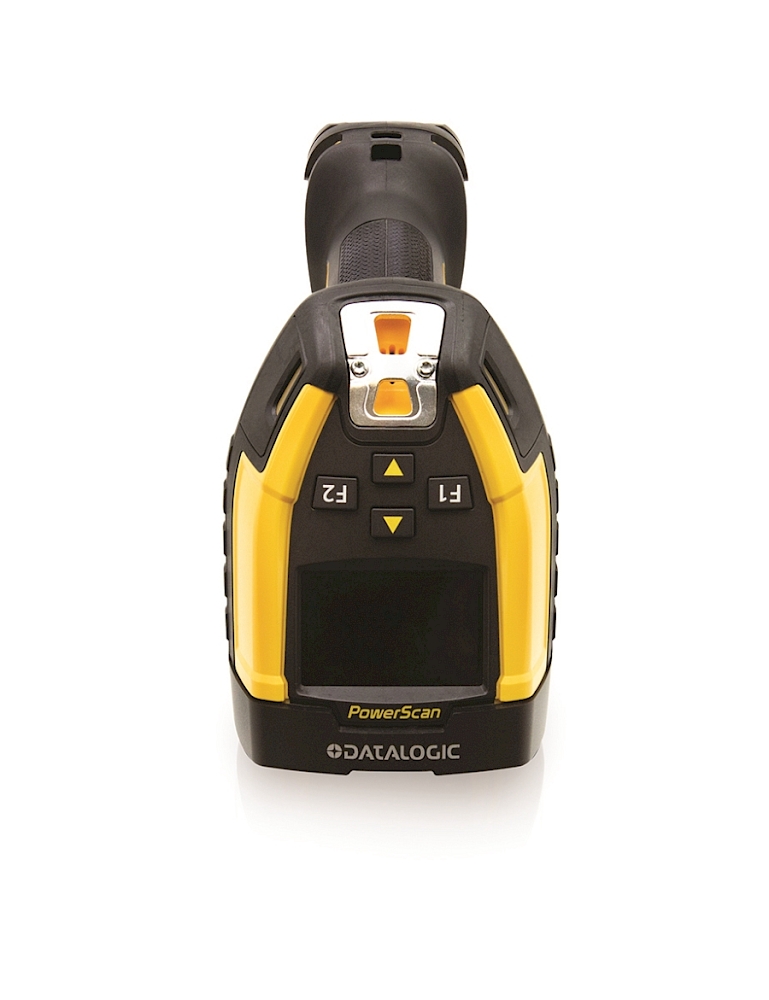

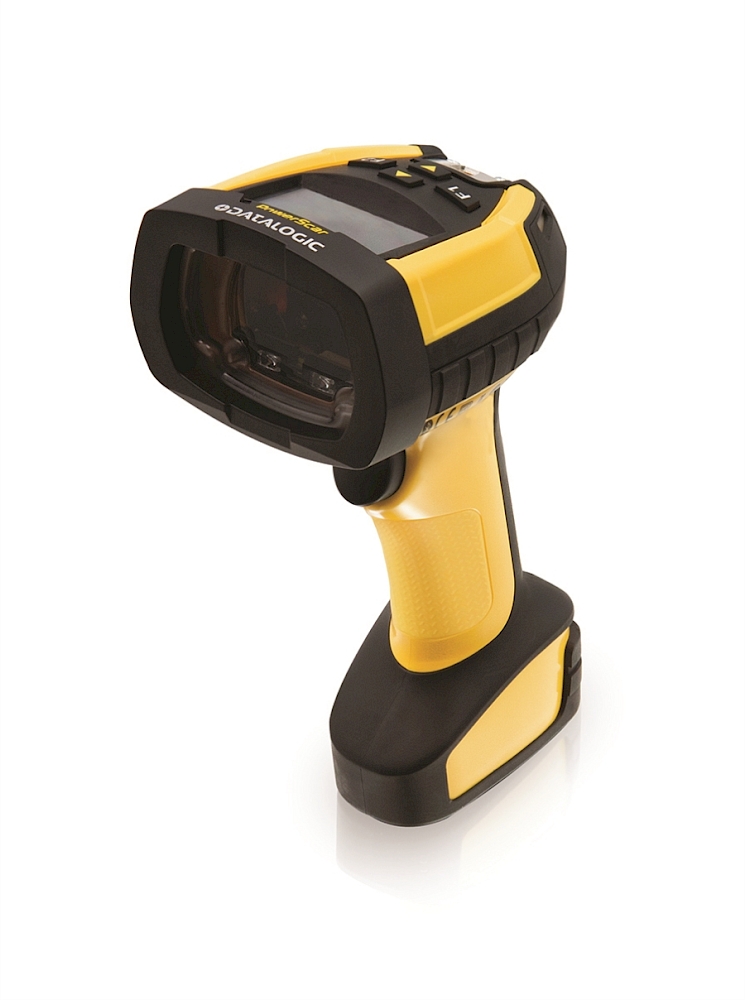

Datalogic PM9600-DHP433RBK50 HP 4 KEY TCP/IP - Profinet IP65 Kit Full Industrial Handheld Barcode Scanner
Datalogic PowerScan PM9600-DHP433RBK50
Full Industrial Wireless HP Kit | 4-Key Display | TCP/IP - Profinet | IP65
Industrial Automation Mastery with High-Performance Imaging
The Datalogic PowerScan PM9600-HP (High Performance) is a top-tier industrial handheld terminal built for maximum precision in the toughest environments. The HP imaging engine is specially tuned to capture high-density barcodes and difficult labels—including those that are damaged, low-contrast, or covered by protective plastic films—with extreme speed.
This specific model features a 4-key functional keypad and a graphic display, providing a two-way interface between the operator and the host. With native TCP/IP and Profinet support, the base station integrates directly into your industrial Ethernet infrastructure (such as Siemens TIA Portal environments), turning the scanner into a real-time smart node within your PLC automation loop.
Key Advantages of the PM9600-DHP Profinet Kit
HP Imaging Engine
Exceptional performance on small, high-resolution 1D/2D codes and barcodes on difficult surfaces like metal or film.
Interactive 4-Key Display
Allows users to view system messages and perform confirmations (OK, Cancel, Back) without leaving the workstation.
Native Profinet Bridge

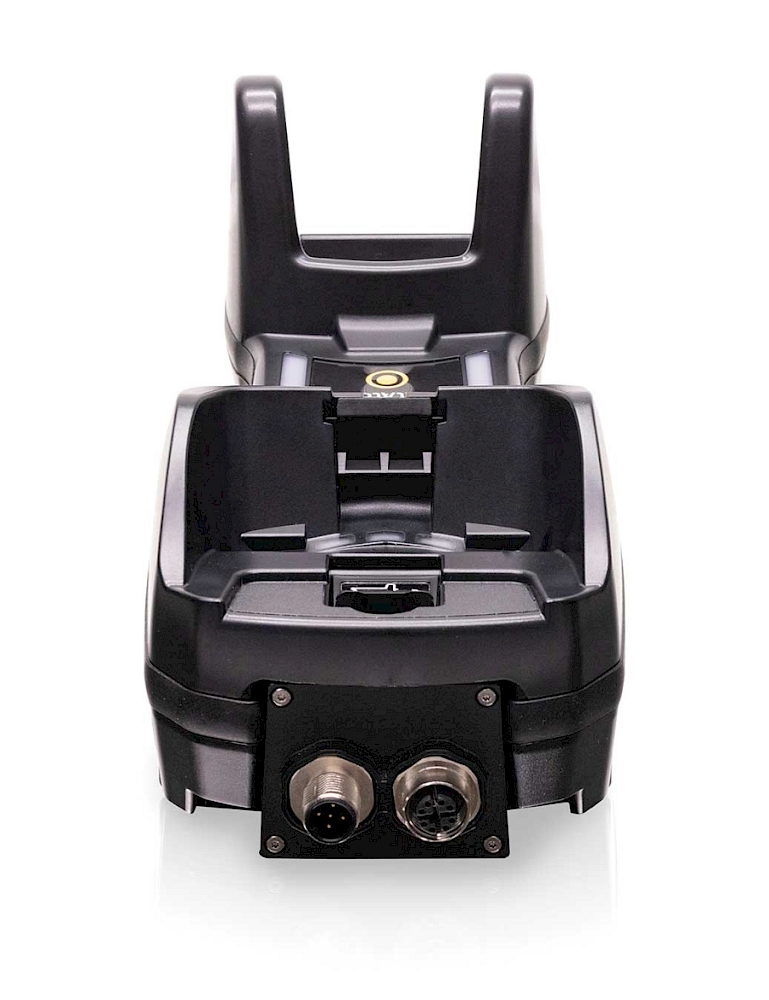

Eliminates the need for external gateways by connecting directly to industrial PLC networks via the base station.
Industrial STAR Radio
433MHz wireless system provides superior range and zero interference with existing Wi-Fi or Bluetooth networks.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Full Industrial Handheld Terminal Kit |
| Imaging Optics | HP - High Performance (1D & 2D) |
| User Interface | Graphic Display + 4 Functional Keys |
| Interface Protocol | TCP/IP - Profinet (Native Support) |
| Wireless Protocol | Datalogic STAR Wireless (433 MHz) |
| Protection Rating | IP65 (Full Industrial Dust/Water Sealing) |
| Operating Temp. | -20°C to +50°C |
Target Applications
- Smart Manufacturing: Real-time WIP tracking and quality control where operator confirmation is required.
- Traceability: Scanning high-density codes on automotive parts or electronic components.
- Logistics: Warehouse picking systems that use Profinet-controlled sorters and conveyers.
- Heavy Industry: Operations requiring durable hardware with screen-based task guidance.
