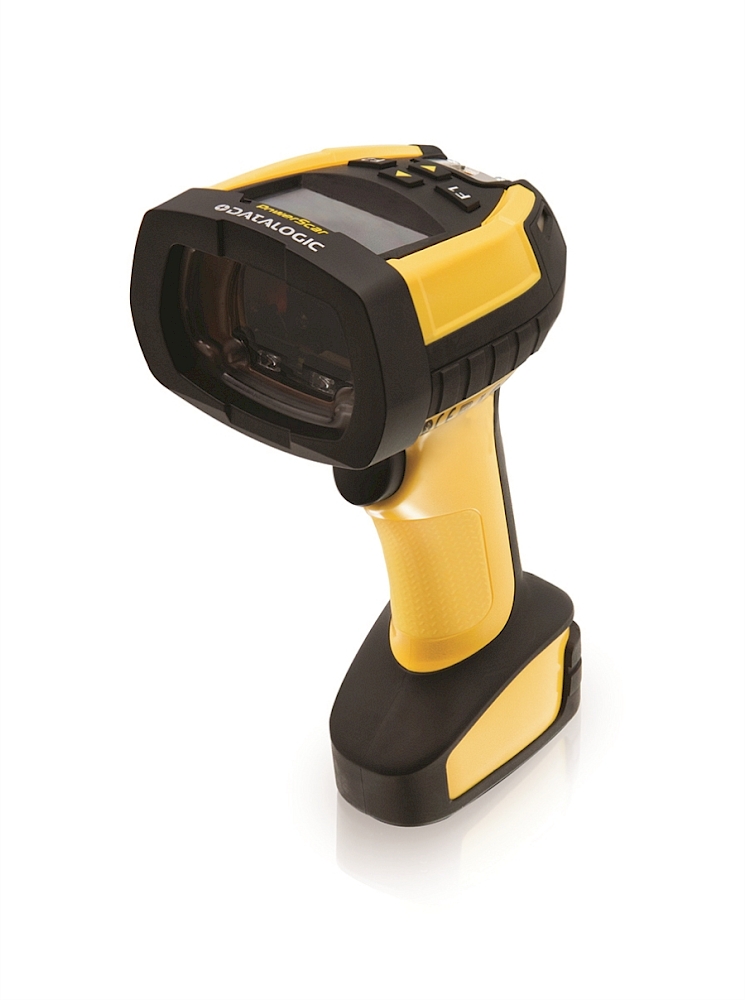

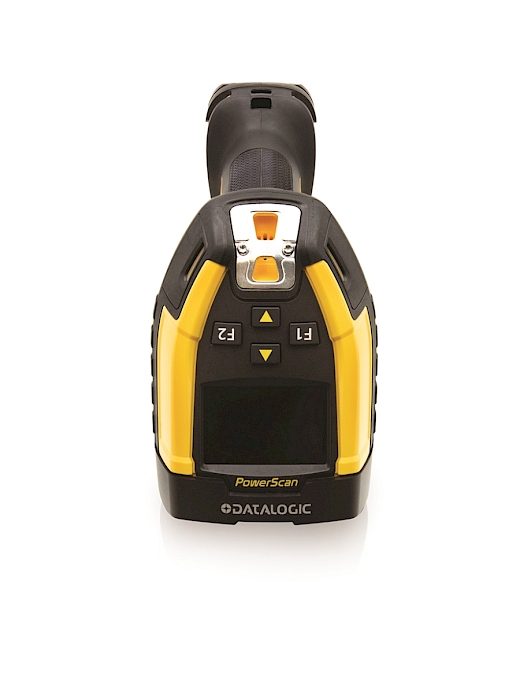

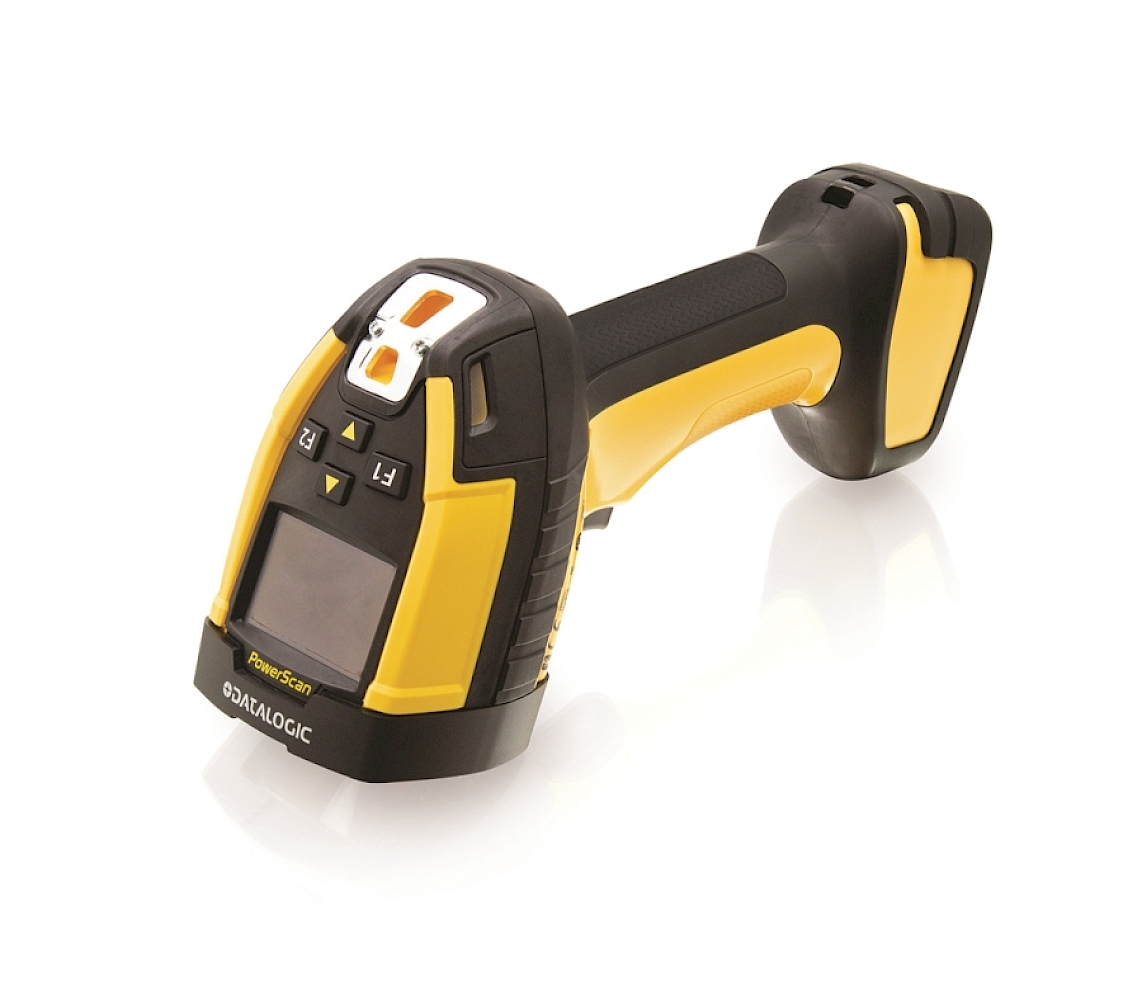

Datalogic PM9600-DHP433RBK10 HP 4 KEY USB Kit Full Industrial Handheld Scanner
Datalogic PowerScan PM9600-DHP433RBK10
Full Industrial Wireless HP Kit | 4-Key Display | USB Interface | IP67 Sealing
Precision Data Capture with Real-Time Operator Feedback
The Datalogic PowerScan PM9600-HP (High Performance) is an ultra-rugged cordless scanner engineered for peak performance in the most demanding industrial environments. The HP optics are specifically designed to decode high-density barcodes and difficult labels—including those that are low-contrast, damaged, or covered by reflective plastic films—with exceptional speed and accuracy.
This USB Kit offers the convenience of "Plug & Play" integration combined with an interactive user interface. Featuring a 4-key functional keypad and a graphic display, operators can receive instructions or confirmations directly on the device. Data is transmitted securely via the Datalogic STAR Wireless System (433MHz), ensuring a stable connection that penetrates industrial obstacles without interfering with existing Wi-Fi networks.
Key Advantages of the PM9600-DHP USB Kit
HP Advanced Imaging
Optimized for high-resolution codes and challenging surfaces often found in automotive and electronics manufacturing.

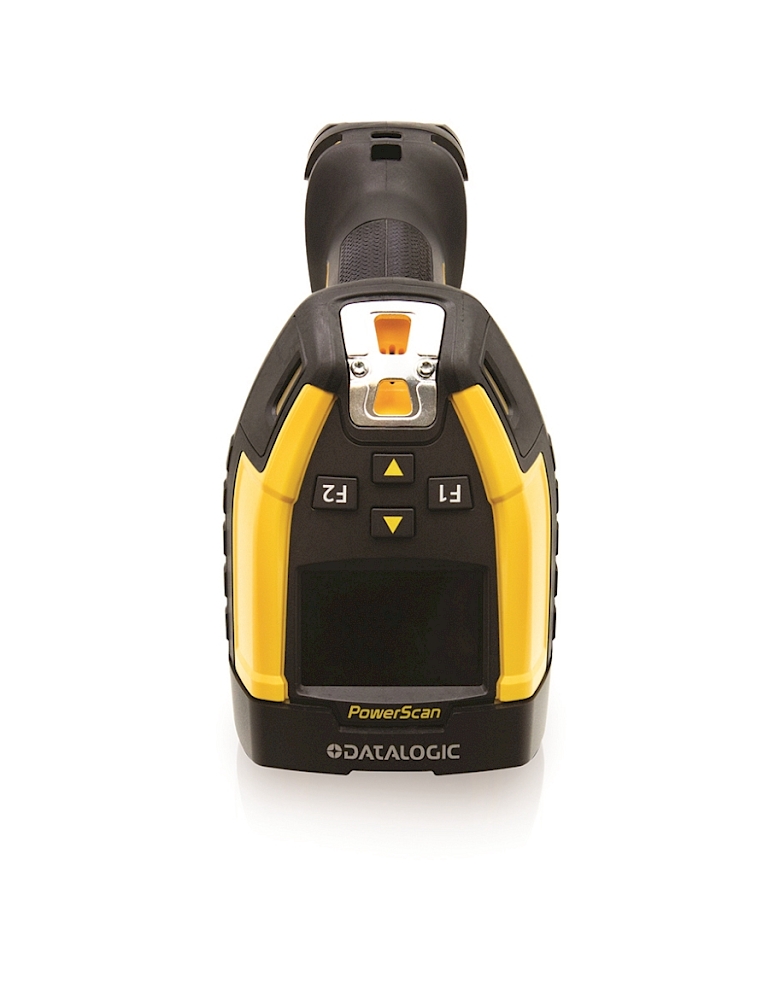

Interactive Display
The 4-key keypad allows operators to interact with the host system for basic confirmations (OK, Cancel) directly from the device.
Rugged STAR Wireless
Proprietary 433MHz radio frequency provides superior range and reliability in metal-heavy plant floors.
IP67 Extreme Sealing
Completely dust-tight and submersible in water, built to withstand 2.5m (8.2 ft) drops to concrete.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Full Industrial Handheld Wireless Scanner Kit |
| Optics Technology | Area Imager (HP - High Performance) |
| User Interface | Graphic Display + 4 Functional Keys |
| Kit Interface | USB (Kit); RS232 (Optional) |
| Wireless Protocol | Datalogic STAR Wireless (433 MHz) |
| Protection Rating | IP65 / IP67 (Fully Ruggedized) |
| Operating Temp. | -20°C to +50°C |
Target Applications
- Automotive & Electronics: Traceability of high-density component markings and DPM codes.
- WIP Tracking: Real-time production monitoring where operators confirm steps via the display interface.
- Logistics & Warehousing: High-speed shipping, receiving, and pallet management with server-side validation.
- Heavy Industry: Material tracking in high-vibration, oily, or dusty environments.
