Datalogic PM9600-DDPX433RK20 DPX 4 KEY RS232 Kit Full Industrial Handheld Barcode Scanner
Datalogic PowerScan PM9600-DDPX433RK20
Ultra-Industrial Wireless DPM Kit | 4-Key Display | RS232 Serial Interface | IP67
Unrivaled DPM Performance for Industrial Connectivity
The Datalogic PowerScan PM9600-DPX is the premier cordless solution for capturing Direct Part Marking (DPM) in heavy-duty industrial settings. Featuring specialized DPM optics and high-performance HP imaging technology, it resolves laser-etched, dot-peened, or chemically-etched codes on complex surfaces like shiny metal, cast iron, or curved plastic.

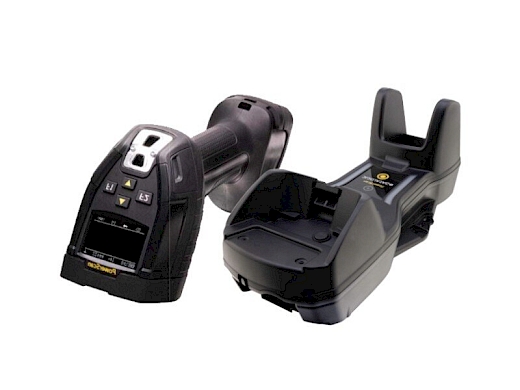

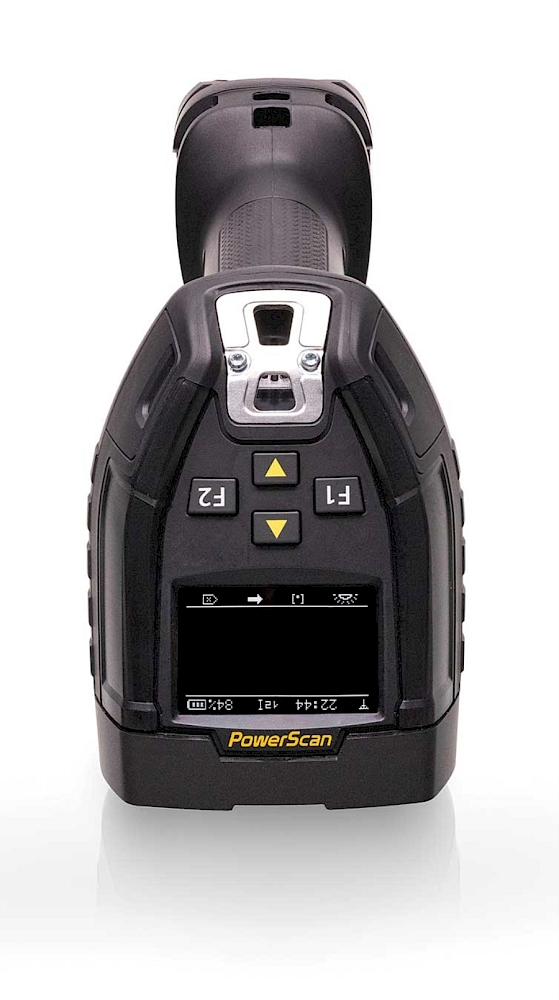

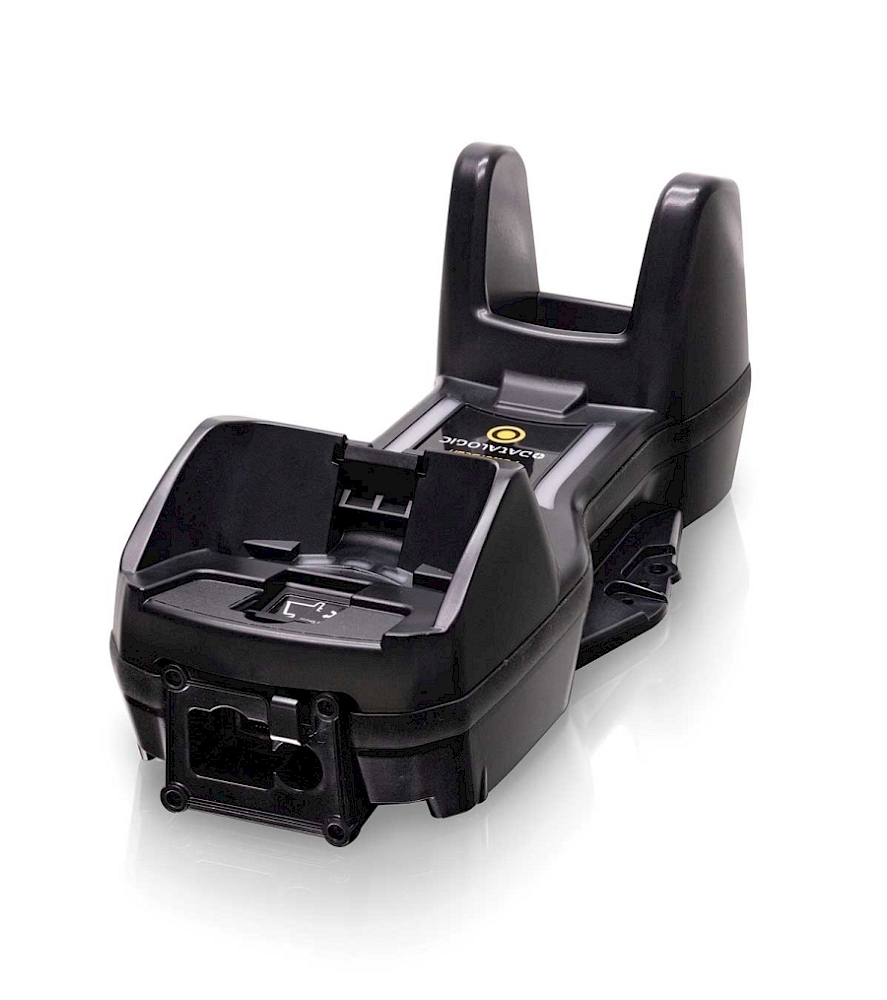

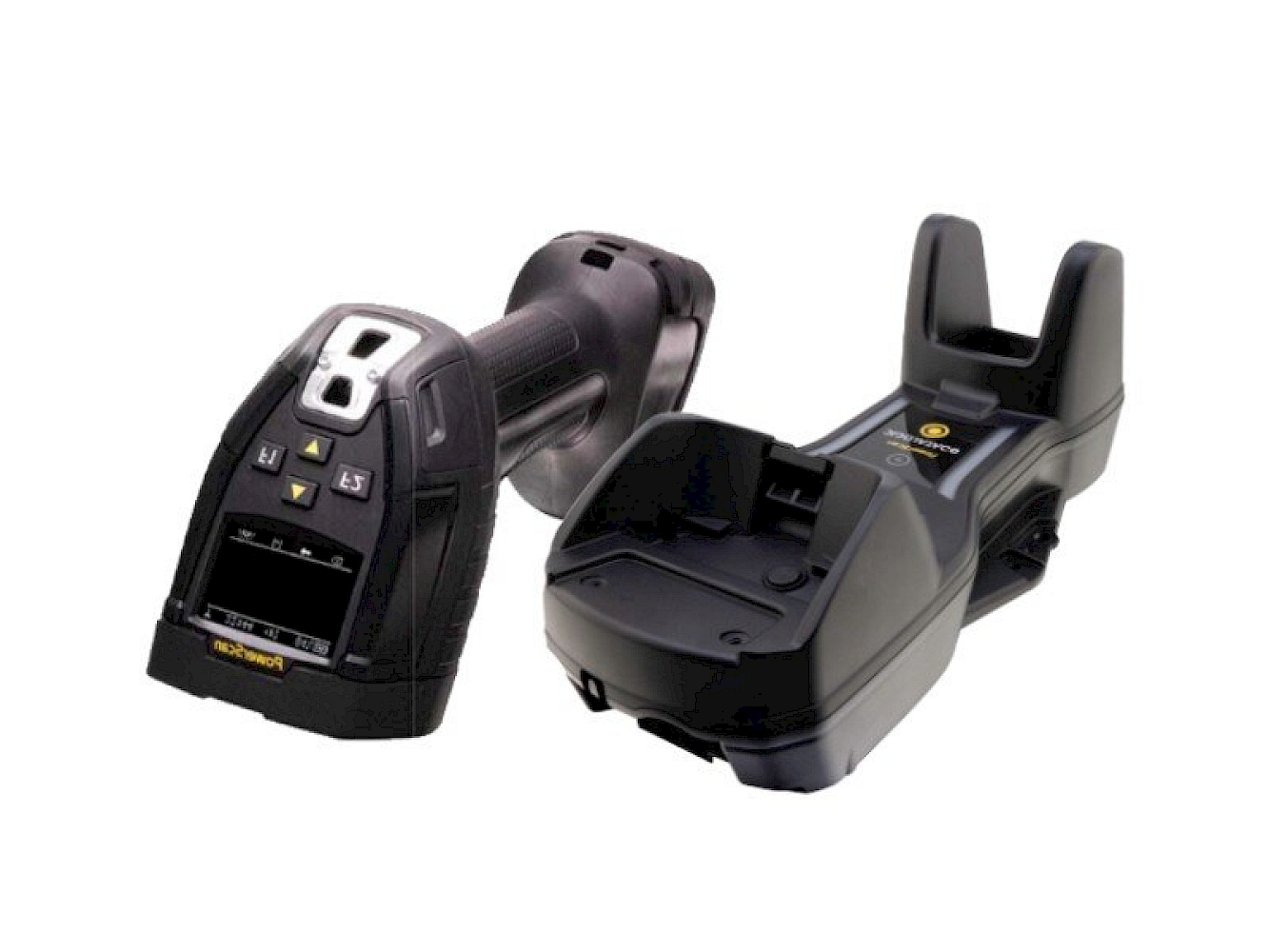

This kit includes a 4-key functional keypad and display for real-time status updates and simple data interaction. The communication cradle is equipped with an RS232 Serial interface, making it an ideal "Plug & Play" choice for manufacturing floors that integrate directly with PLCs, CNC machinery, or legacy terminal systems.
Key Advantages of the PM9600-DPX RS232 Kit

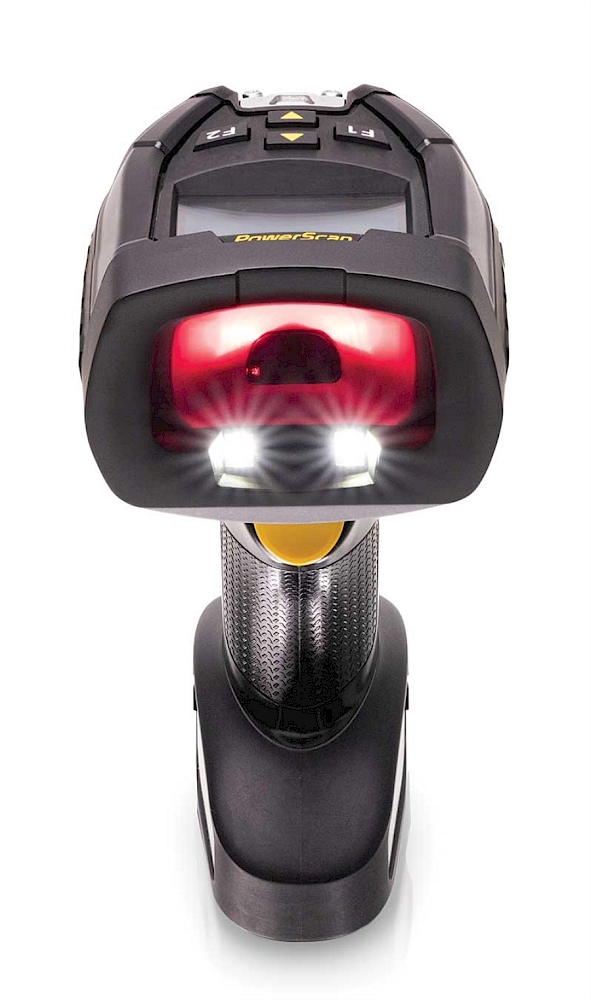

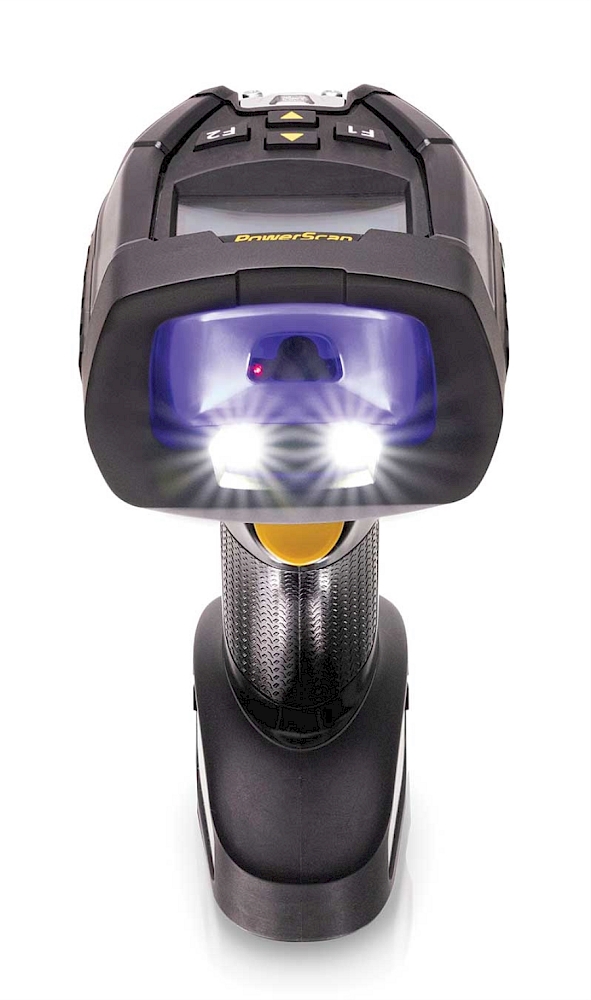

Advanced DPM Optics
Optimized lighting system to capture low-contrast markings and eliminate glare from reflective metallic components.
STAR Wireless Liberty
433MHz STAR radio technology ensures a stable, long-range connection that penetrates industrial obstacles better than Bluetooth.
IP67 Ruggedness
Completely dust-tight and submersible in water, ensuring longevity in oily or damp production environments.
Universal Compatibility
Reads all standard 1D and 2D codes alongside specialized DPM marks without switching devices.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Ultra-Industrial Cordless Handheld DPM Scanner |
| Scanning Technology | Area Imager (DPX Optimized Optics) |
| Supported Codes | 1D, 2D, & DPM (QR, DataMatrix, PDF417, etc.) |
| Wireless Technology | Datalogic STAR Wireless (433 MHz) |
| Kit Interface | RS232 (Serial); USB (Optional) |
| Protection Rating | IP65 / IP67 (Total Industrial Sealing) |
| Operating Temp. | -20°C to +50°C |
Core Applications
- Automotive & Powertrain: Scanning etched VINs, chassis numbers, and engine components.
- Aerospace Assembly: Capturing critical DPM marks for high-precision part traceability.
- Electronics Production: Decoding microscopic DataMatrix codes on high-density PCBs.
- Industrial Maintenance: Reading permanent marks on equipment in high-vibration or oily zones.
