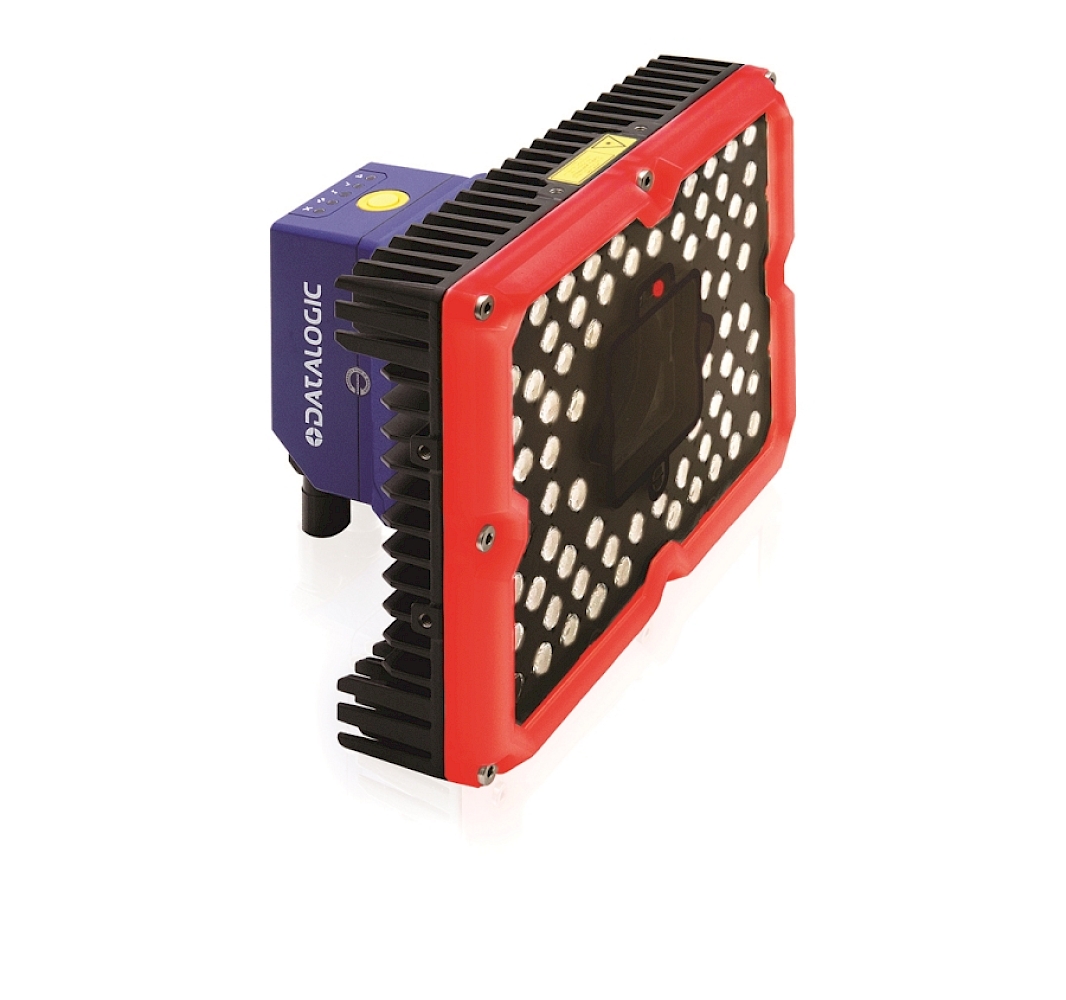

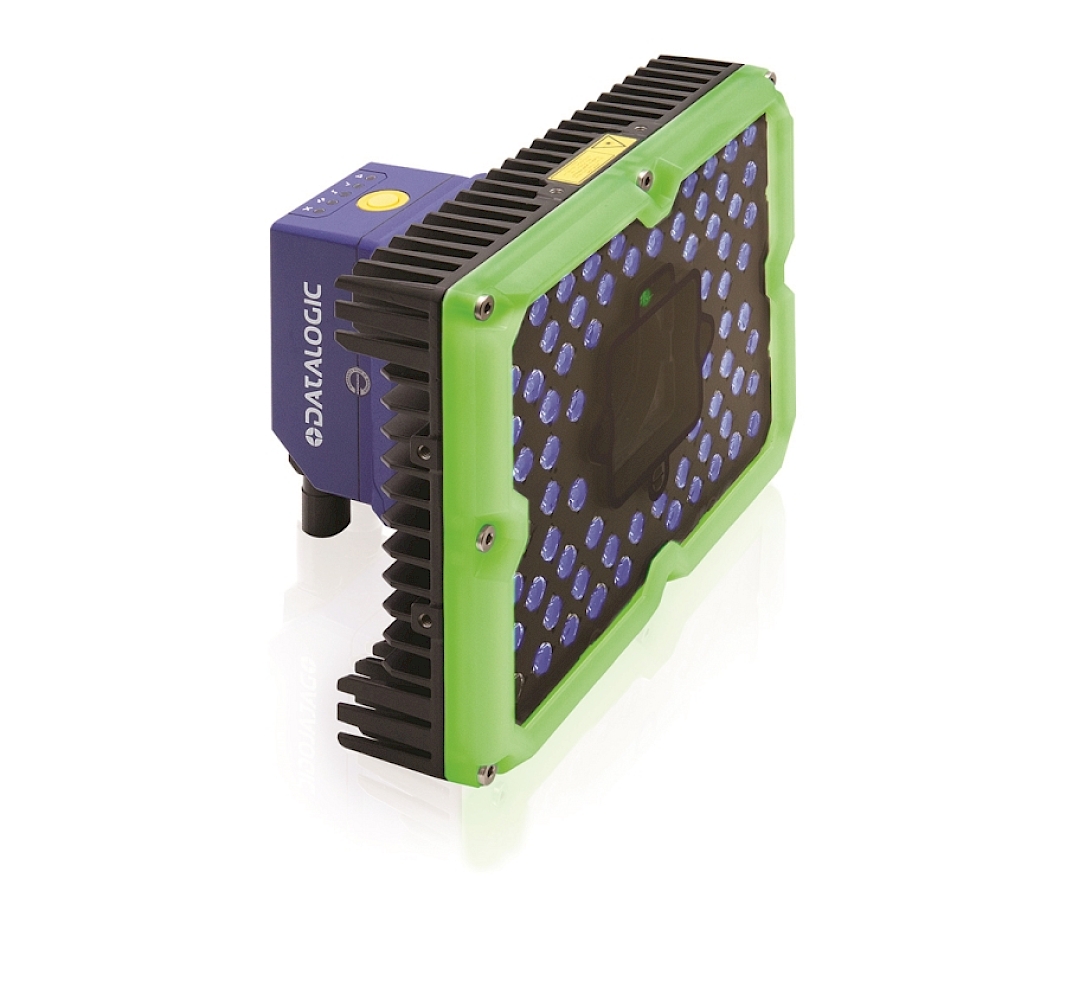

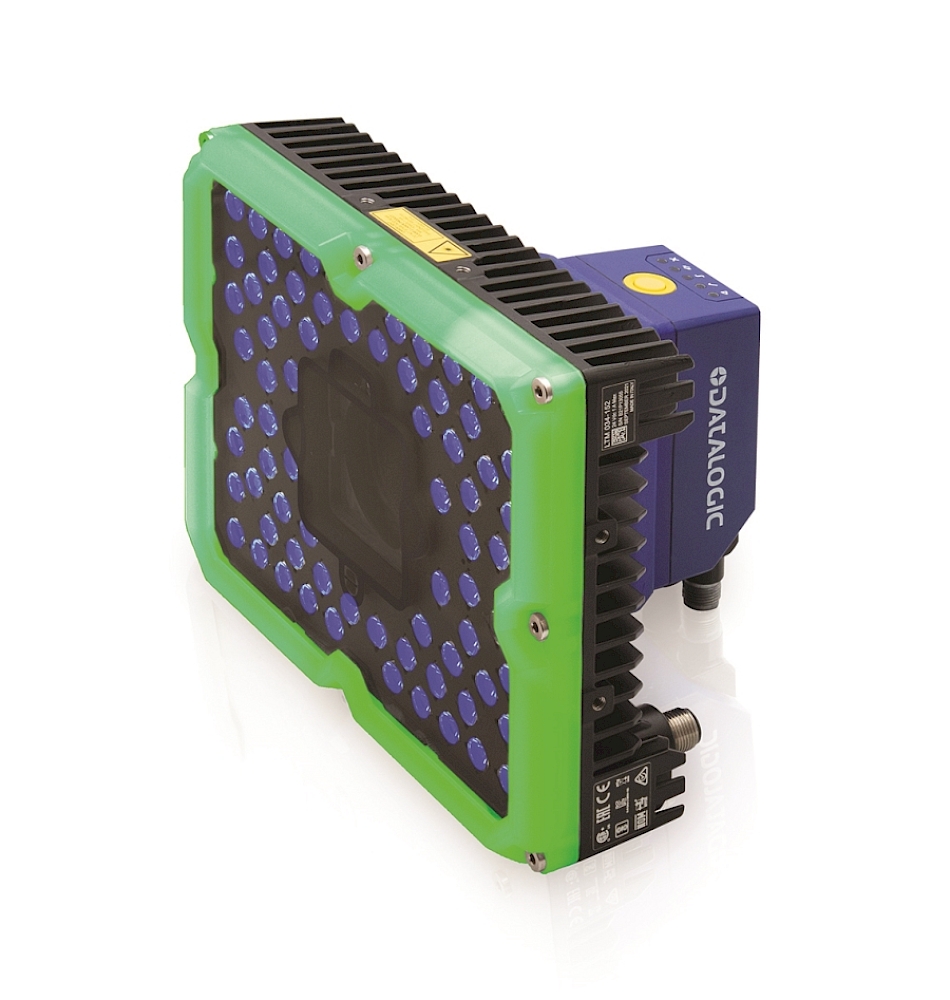

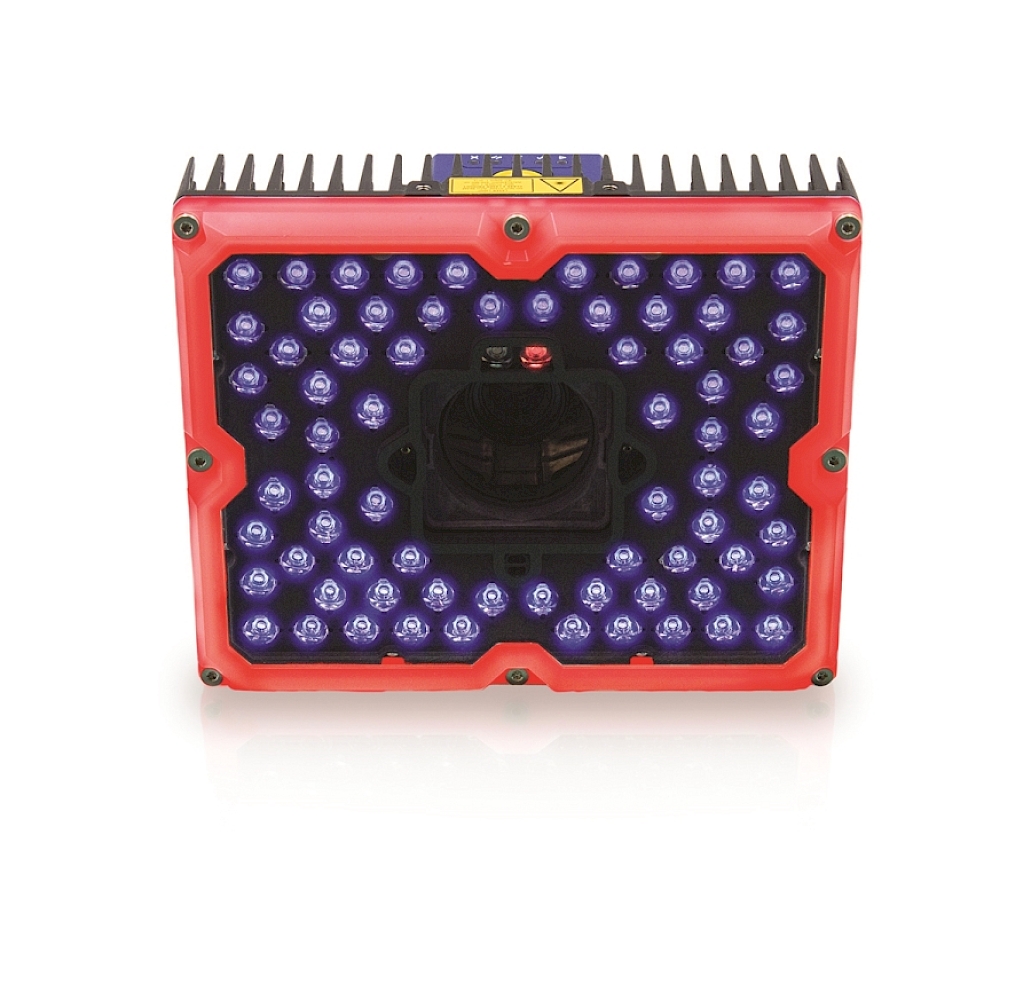

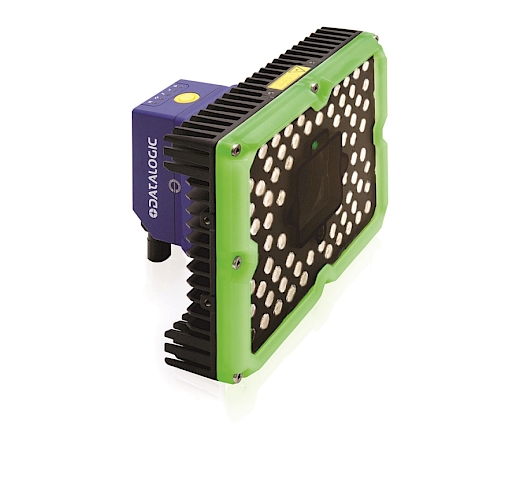

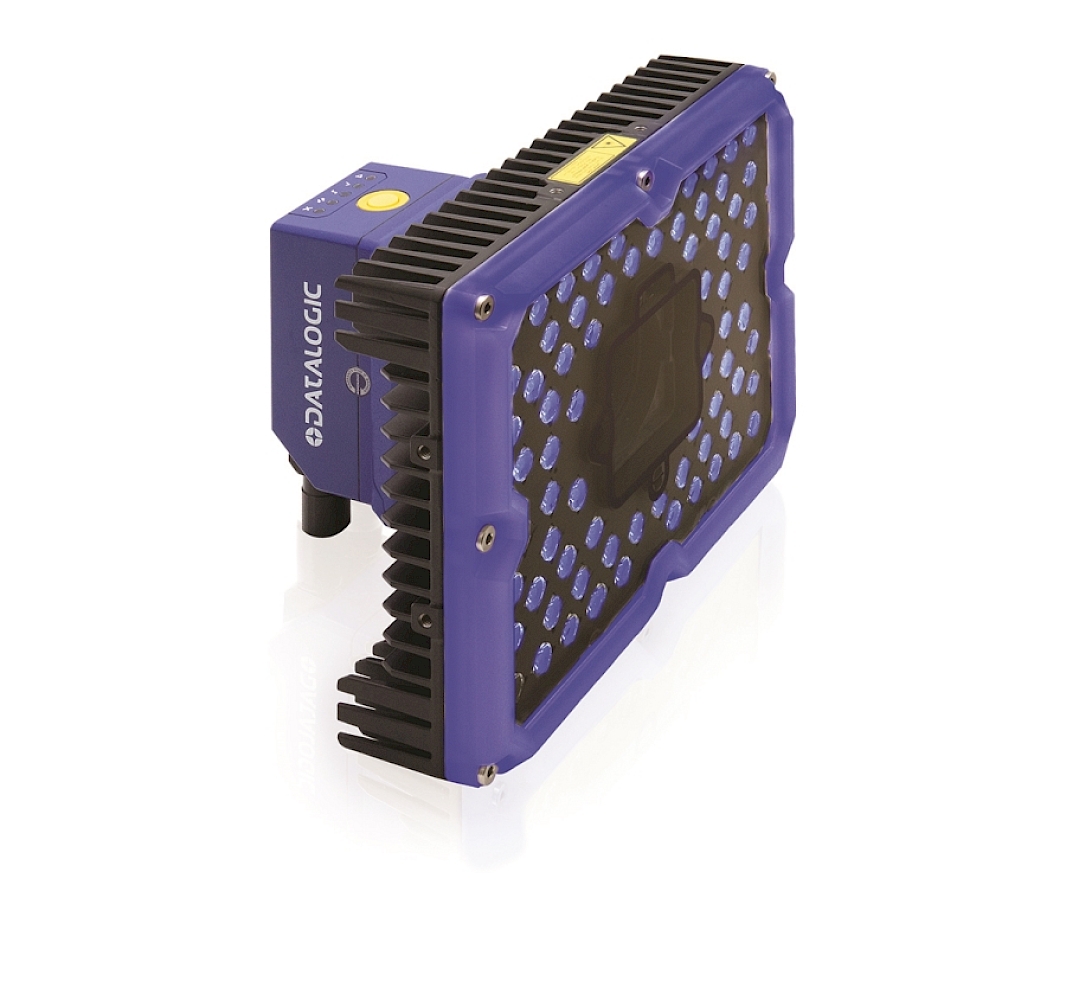

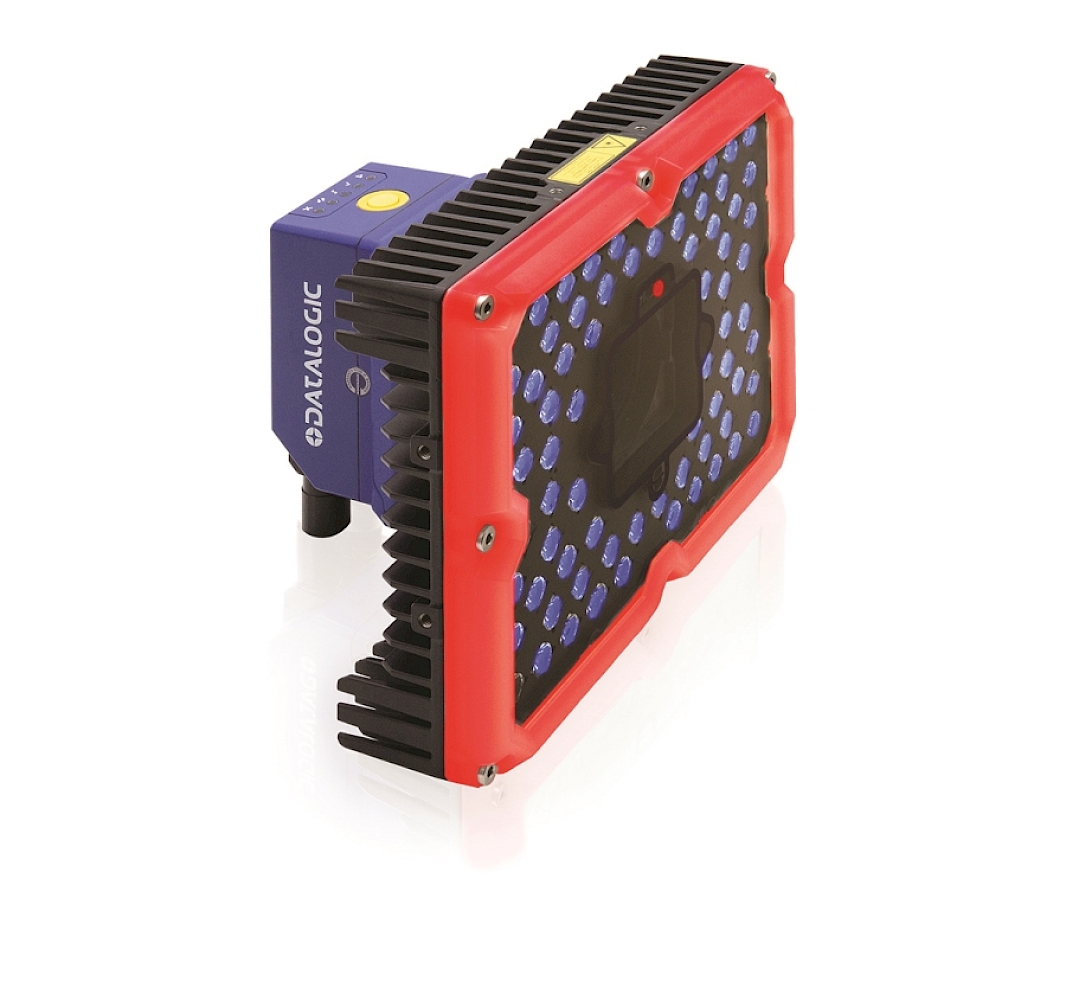

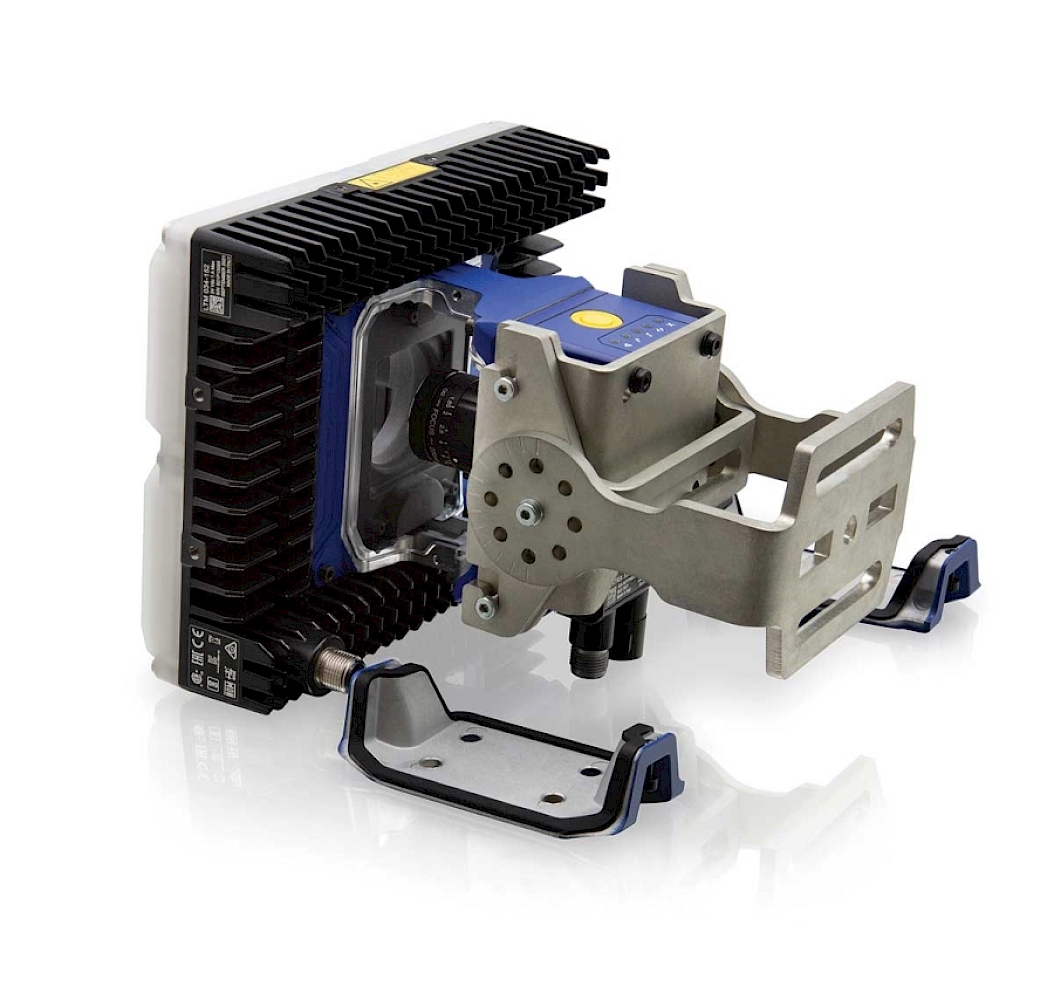

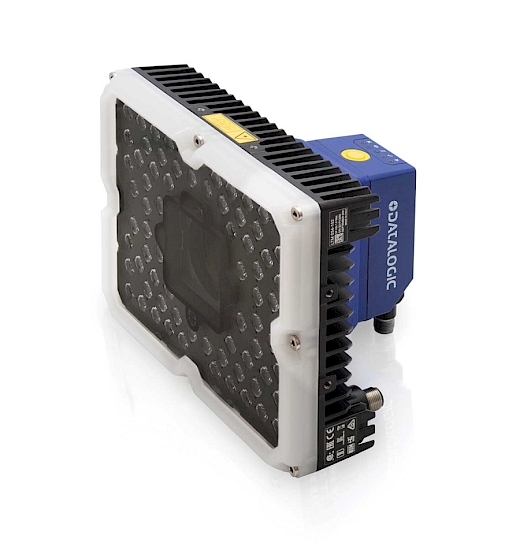

Datalogic Matrix 320 800-030 CM 5.0MP 1/2 X Fixed Industrial Code Reader
Datalogic Matrix 320 5MP
High-Resolution Full Industrial 2D Stationary Barcode Reader
High Speed and Maximum Precision for Advanced Production Lines
The Datalogic Matrix 320 5MP is an ultra-high-resolution stationary industrial 1D/2D barcode reader. Designed for the most demanding imaging tasks, it provides uninterrupted reading performance in harsh industrial environments. Its 5-megapixel sensor makes it the ideal choice for applications requiring a wide field of view or the decoding of extremely small codes.
Utilizing professional C-Mount lens technology, it offers unmatched optical flexibility. Whether dealing with low-contrast, faint, worn, or high-speed barcodes, the Matrix 320 5MP delivers superior reading success through customizable optics and illumination.
Why Datalogic Matrix 320 5MP?
Extreme Resolution
5 Mpx sensor allows for reading multiple codes simultaneously or micro-codes in large areas.
Modular Optics
C-Mount support enables the use of specialized lenses for any distance or magnification.
Industrial Ruggedness
IP65/67 rated protection against dust and water in harsh manufacturing plants.
Gigabit Connectivity
Fast data transfer with 1000 Mbit/s Ethernet and advanced Fieldbus protocols.
Technical Specifications
| Parameter | Value |
|---|---|
| Scanning Technology | Area Imager (C-Mount Optics) |
| Resolution | 2560 x 1936 Pixels (5.0 Mpx) |
| Lens Support | User-selectable C-Mount Lenses |
| Supported Codes | 1D, 2D (QR, DataMatrix, PDF417, etc.), DPM |
| Communication | PROFINET, EtherNet/IP, Modbus TCP, OPC UA, Serial |
| Protection Class | IP65 / IP67 |
Target Applications
- Electronics: High-precision tracking of micro-PCBs and laser-marked components.
- Automotive: Direct Part Marking (DPM) verification on large engine components.
- Pharmaceutical: High-speed UDI verification and multi-code carton scanning.
- Packaging & Logistics: Broad-area reading on high-speed sorting systems.
