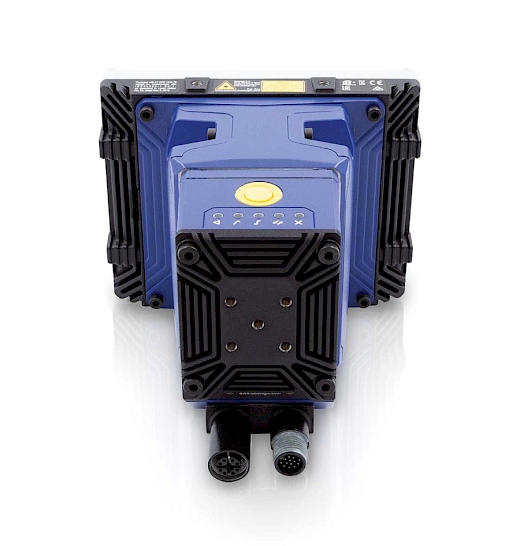

Datalogic Matrix 320 722-330 LL9 36L 45D WHT X Fixed Industrial Code Reader
Datalogic Matrix 320
Full Industrial 2D Stationary Barcode Reader - 9mm White LED Edition
High Speed and Maximum Precision for Production Lines
The Datalogic Matrix 320 is a stationary industrial 1D/2D barcode reader engineered for high-speed, uninterrupted reading performance in challenging environments. Its compact and rugged build makes it ideal for production lines, automation systems, and intralogistics applications.
Equipped with Advanced LQL (Liquid Lens) imaging technology, it delivers superior reading success even on low-contrast, faint, worn, or high-speed moving barcodes. The 9mm lens provides a wide field of view, while the 2.07 Mpx resolution ensures every detail is captured.
Why Datalogic Matrix 320?
Seamless Automation
Consistent reading performance on high-speed conveyors and dynamic product lines.
Industrial Durability
Rugged IP65/67 construction built to withstand dusty and harsh factory floors.
Superior Decoding
High precision for complex 1D & 2D codes, including micro-DPM and high-density labels.
Easy Integration
Rapid commissioning with PROFINET, EtherNet/IP, Modbus TCP, and OPC UA protocols.
Technical Specifications
| Parameter | Value |
|---|---|
| Scanning Technology | Area Imager (LQL Optics) |
| Resolution | 1920 x 1080 Pixels (2.07 Mpx) |
| Lens / Lighting | 9mm LQL (Liquid Lens) / White Lighting |
| Interface | Gigabit Ethernet, PROFINET, EtherNet/IP, OPC UA |
| Protection Rating | IP65 / IP67 |
| Operating Temp. | -20°C to +50°C |
Primary Application Areas
- Manufacturing: WIP tracking, micro barcode reading, and quality verification.
- Automotive & Electronics: PCB tracking, component validation, and DPM reading.
- Pharmaceutical: UDI tracking and high-density DataMatrix applications.
- Food & Packaging: High-speed sorting and end-to-end product traceability.
