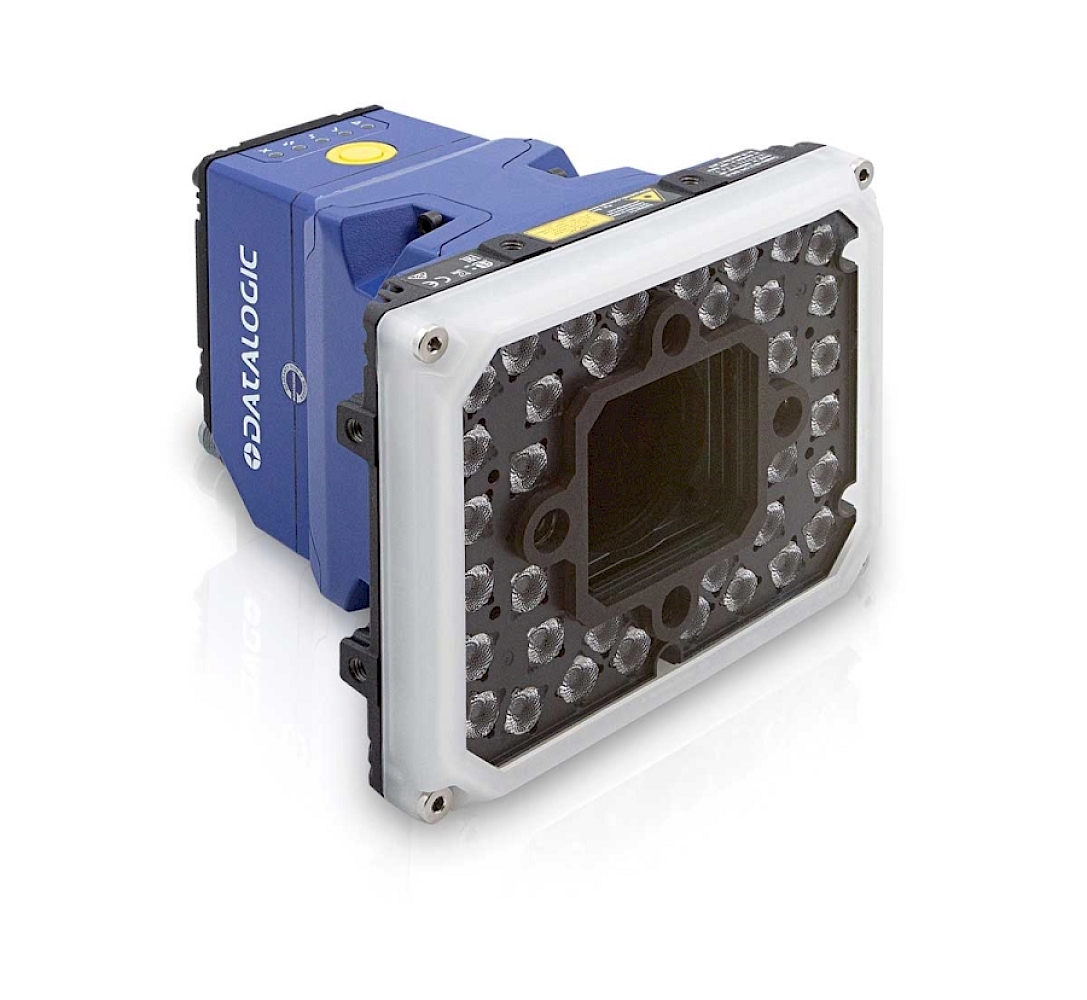

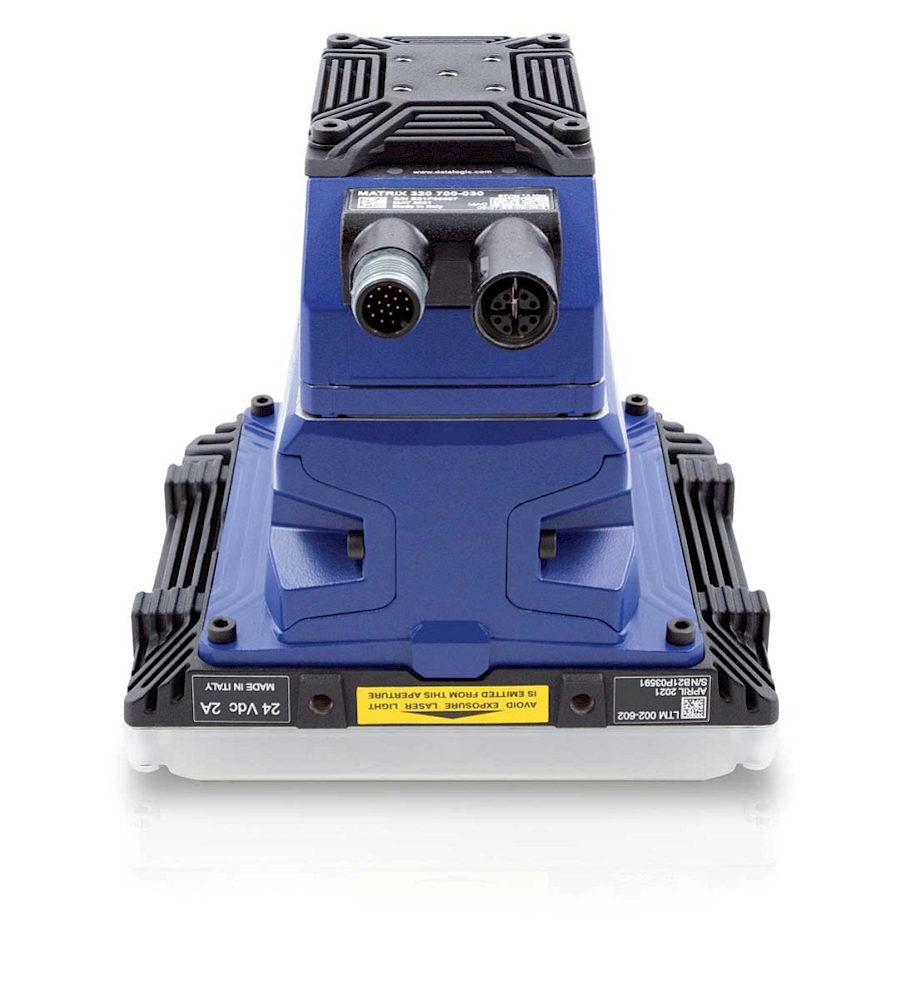

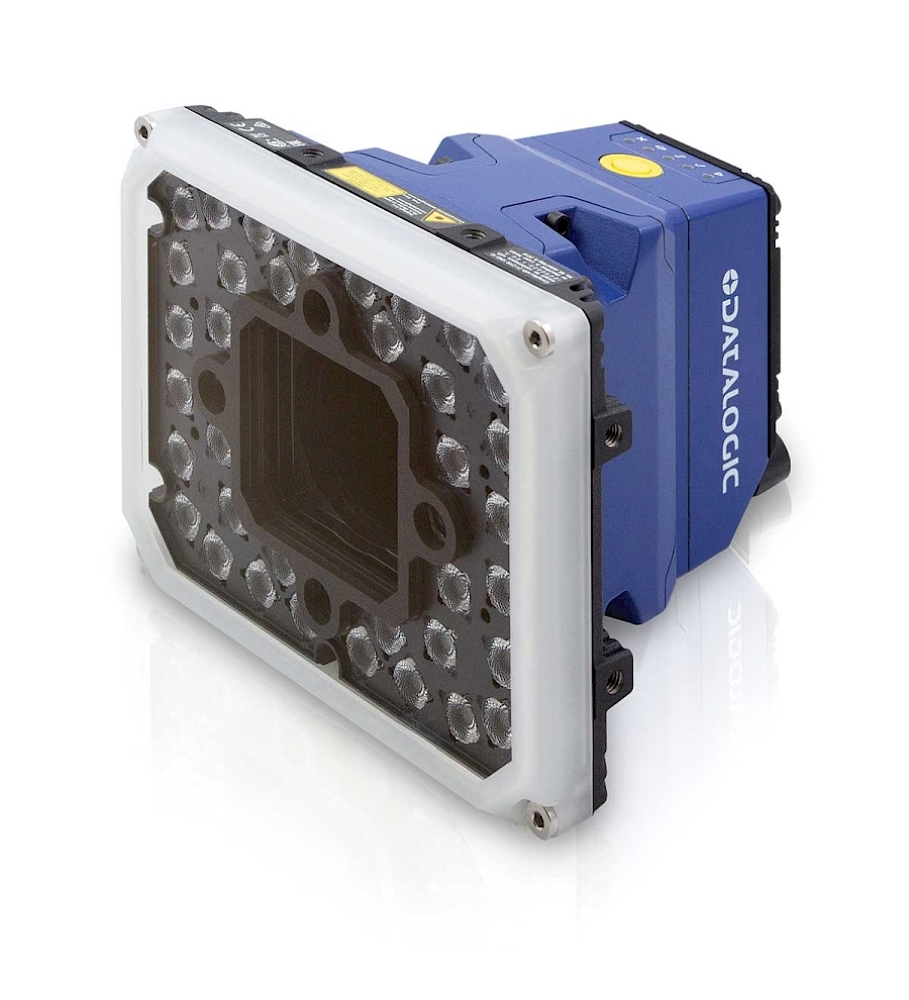

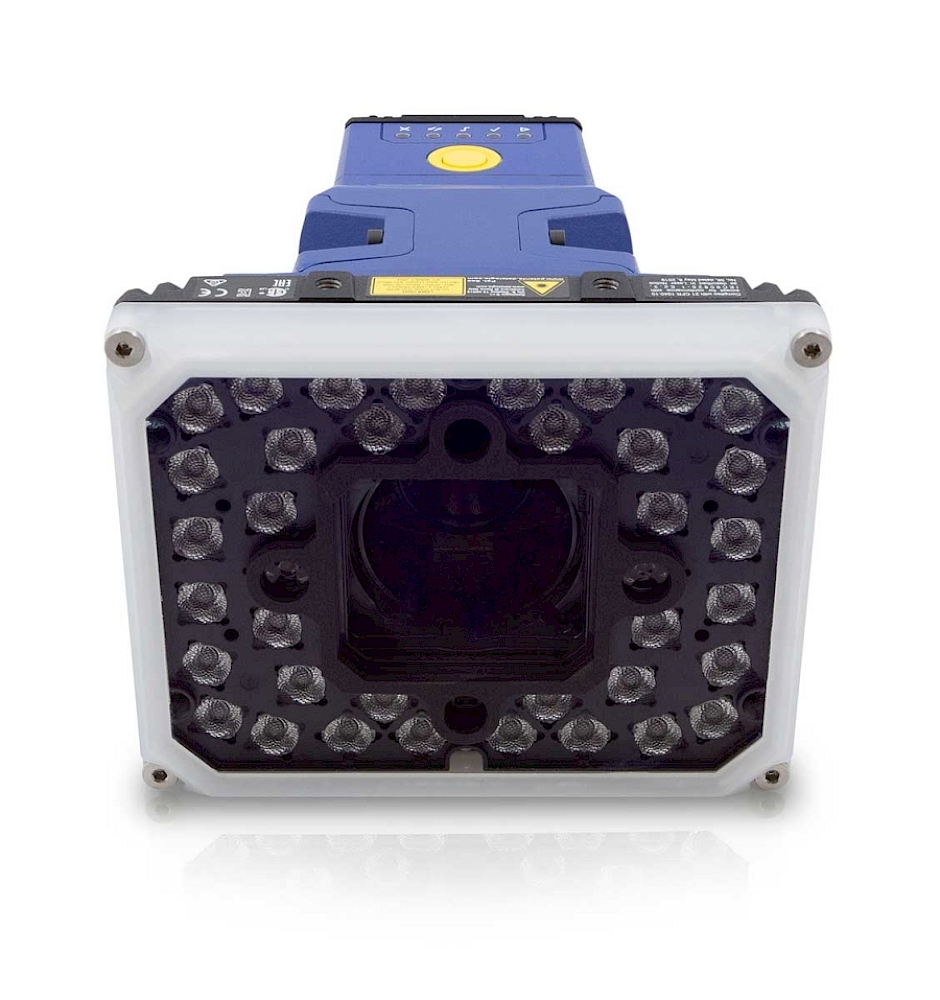

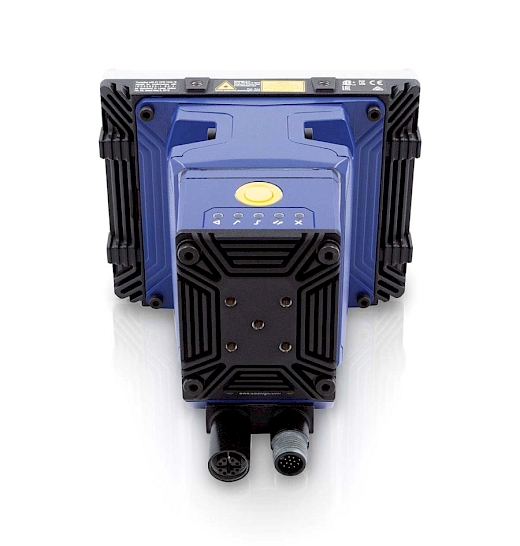

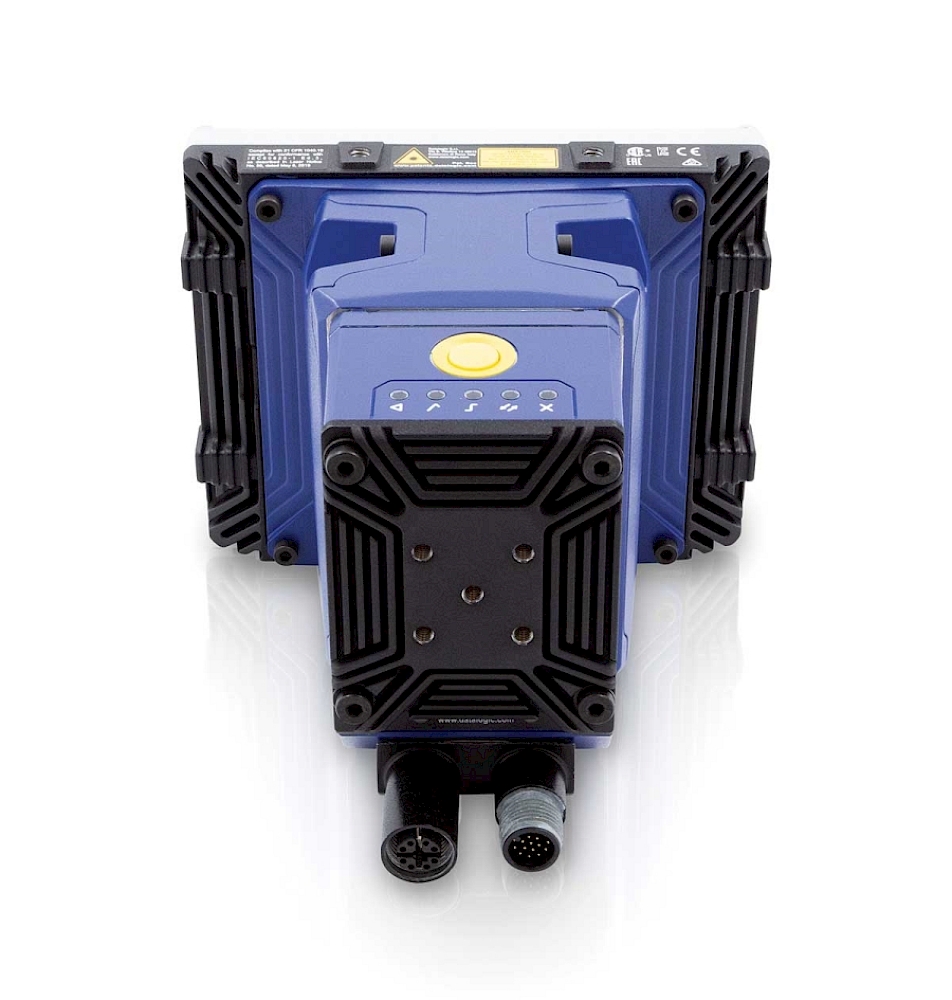

Datalogic Matrix 320 721-330 LL9 36L 45D RED X Fixed Industrial Code Reader
Datalogic Matrix 320
Full Industrial 2D Stationary Barcode Reader - High-Speed Performance
Precision and Velocity for Modern Production Lines
The Datalogic Matrix 320 is a stationary industrial 1D/2D barcode reader engineered for high-speed, uninterrupted reading performance in challenging environments. Its compact and rugged design ensures reliability across production lines, automated systems, and intralogistics applications.
Featuring advanced LQL (Liquid Lens) technology, it excels at decoding low-contrast, faint, worn, or high-speed moving barcodes. With a wide field of view and flexible mounting, it maximizes operational efficiency.
Why Choose Datalogic Matrix 320?
Seamless Automation
Stable reading on high-speed conveyors and moving products without data loss.
Industrial Durability
IP65/67 rated rugged housing built for dusty and harsh manufacturing environments.
Superior Decoding
Maximum sensitivity for 1D and 2D codes including QR, DataMatrix, and DPM.
Easy Integration
Rapid deployment with PROFINET, EtherNet/IP, Modbus TCP, and OPC UA protocols.
Technical Highlights
- LQL Imaging: Superior performance on faint or damaged codes via electronic focus.
- Wide Field of View: High-resolution 2.07 Mpx sensor reduces barcode alignment requirements.
- Compact Mounting: Designed for flexible installation in tight industrial spaces.

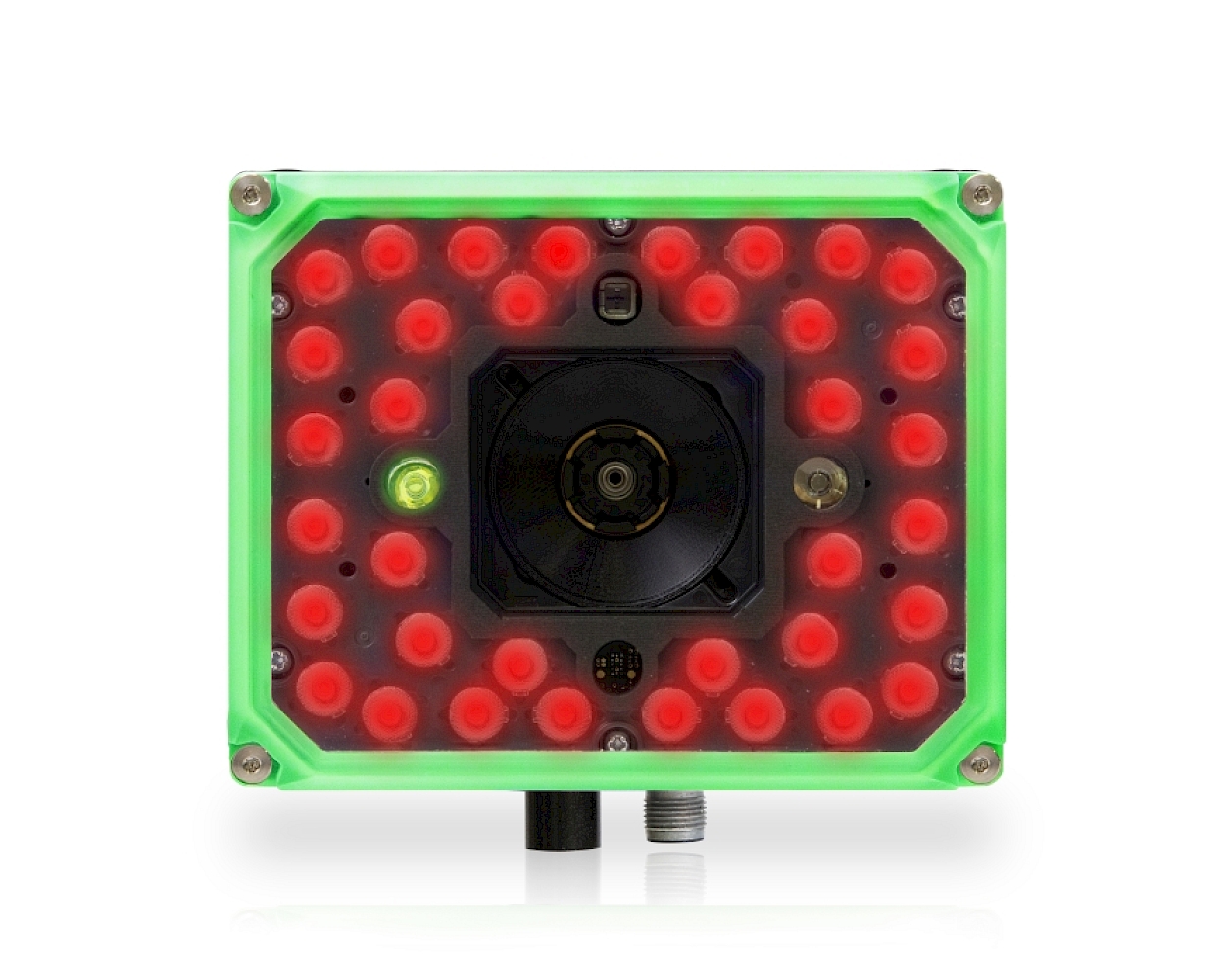

- Red LED Lighting: Optimized for high-contrast reading on standard industrial labels and materials.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Full Industrial Stationary Reader |
| Scanning Tech | Area Imager (LQL Optics) |
| Resolution | 1920 x 1080 Pixels (2.07 Mpx) |
| Lens / Lighting | 9mm LQL (Liquid Lens) / Red Lighting |
| Interface | Gigabit Ethernet, PROFINET, OPC UA, Serial |
| Protection Class | IP65 / IP67 |
Primary Application Areas
- Automotive & Electronics: PCB tracking and component serial number verification.
- Manufacturing: Work-In-Progress (WIP) tracking and automated quality control.
- Pharmaceutical: UDI tracking and high-density DataMatrix applications.
- Packaging: High-speed sorting and broad-area product verification.
