Datalogic Matrix 320 706-330 LL9 14L 45D WHT X Fixed Industrial Code Reader

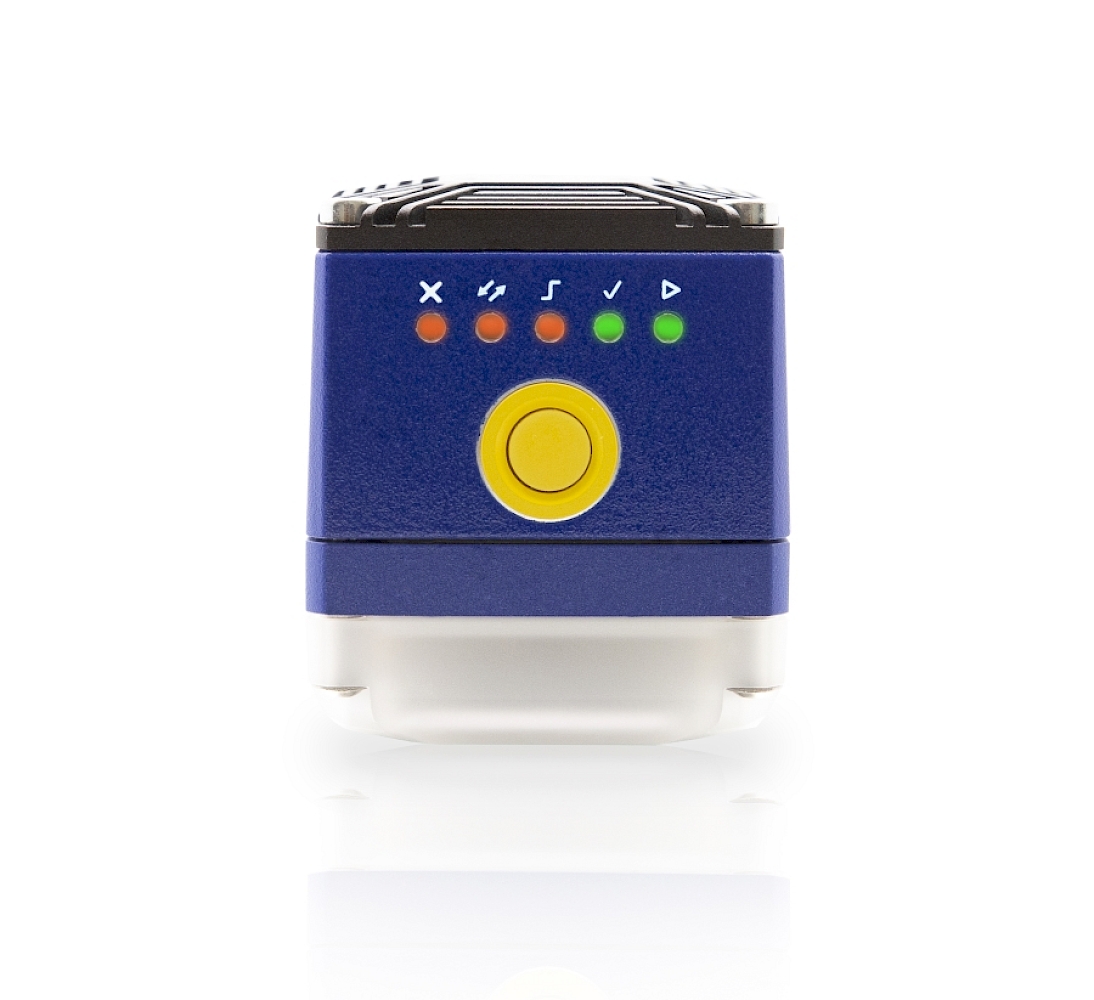

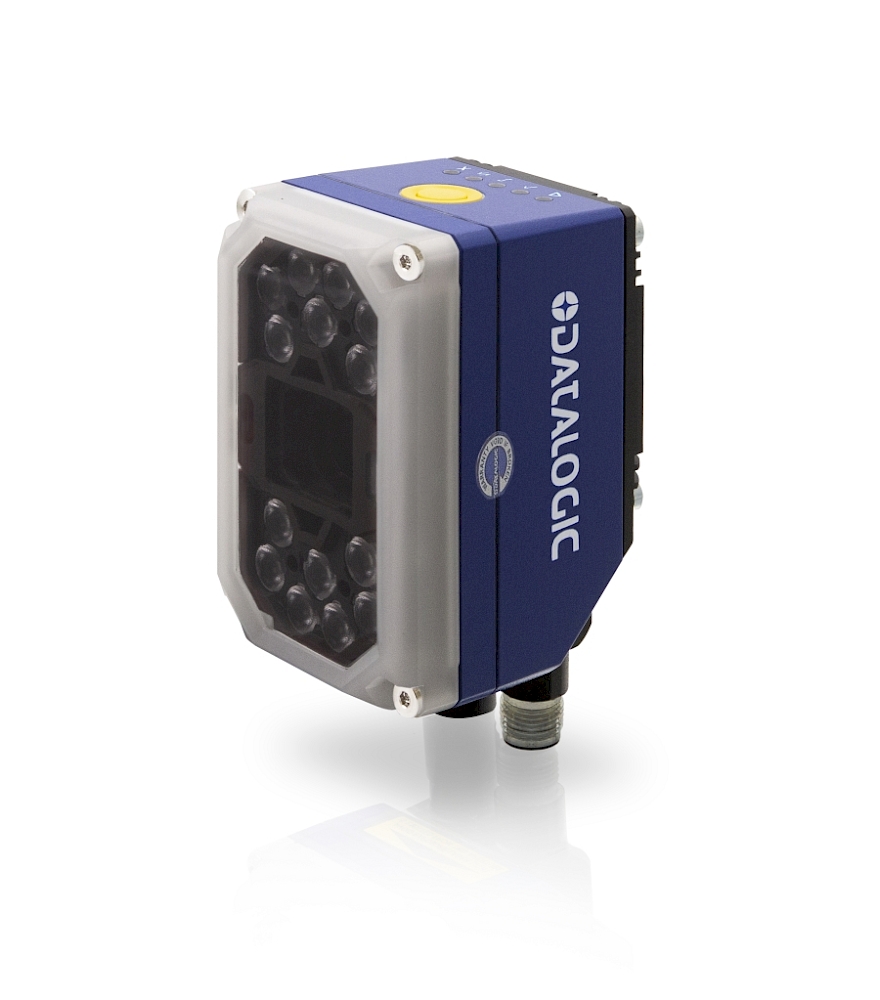

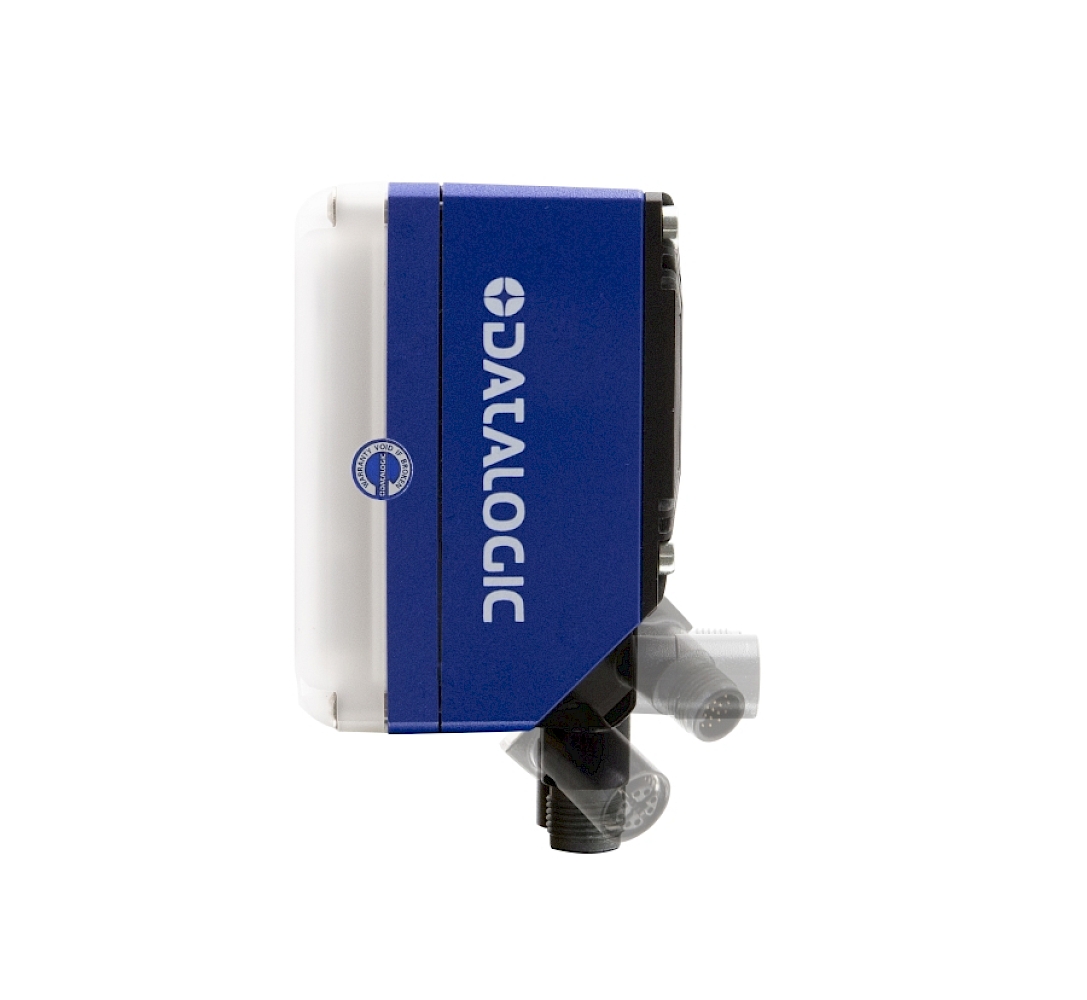

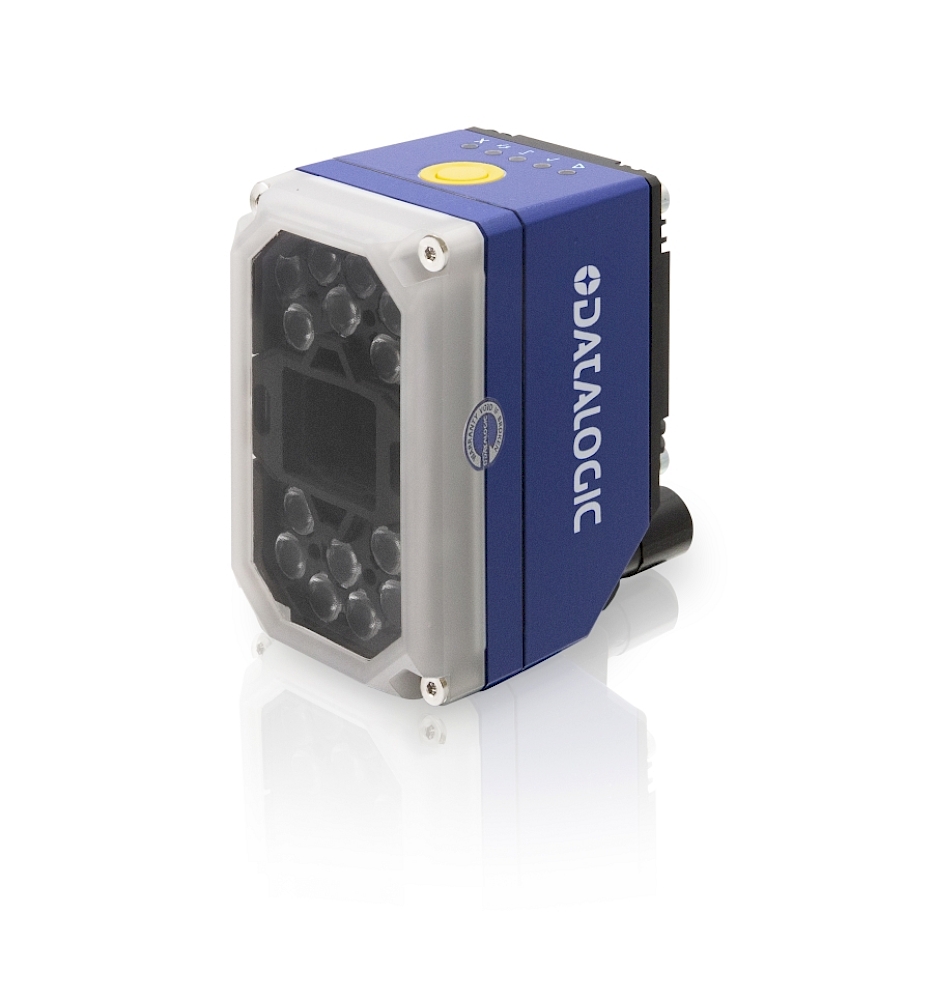

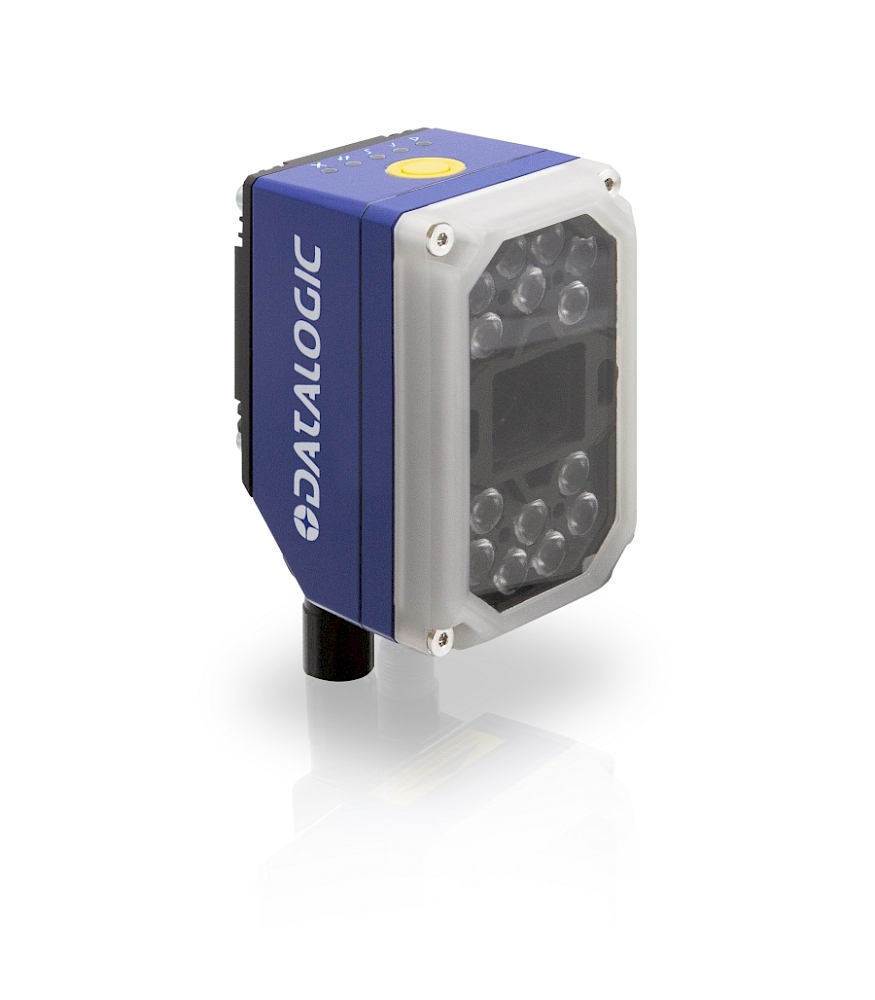

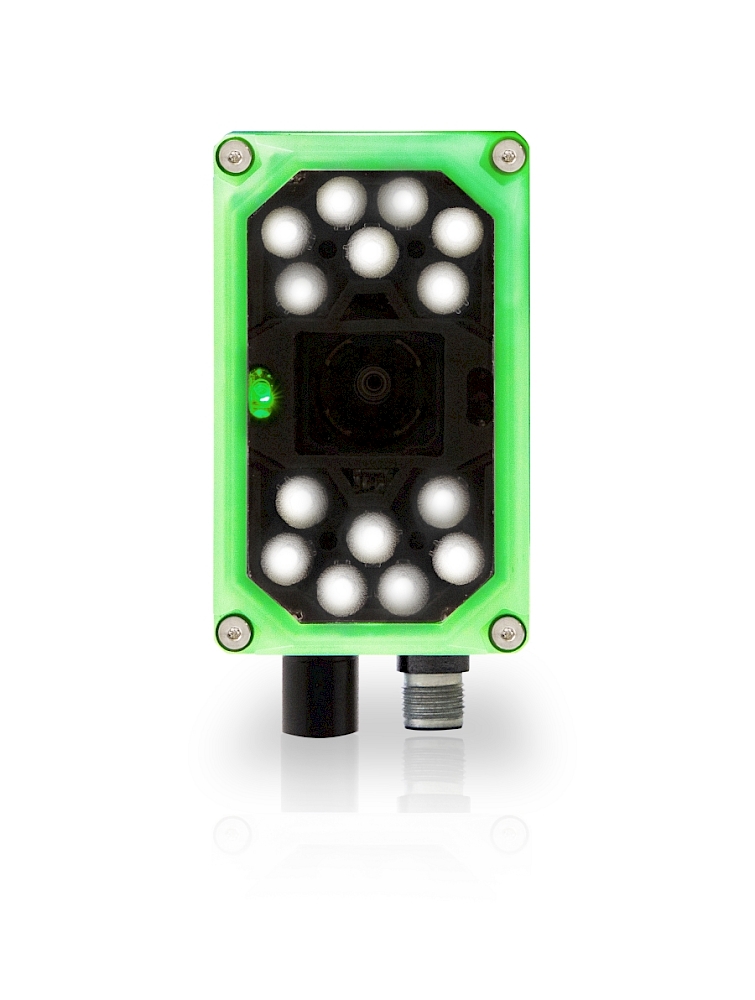

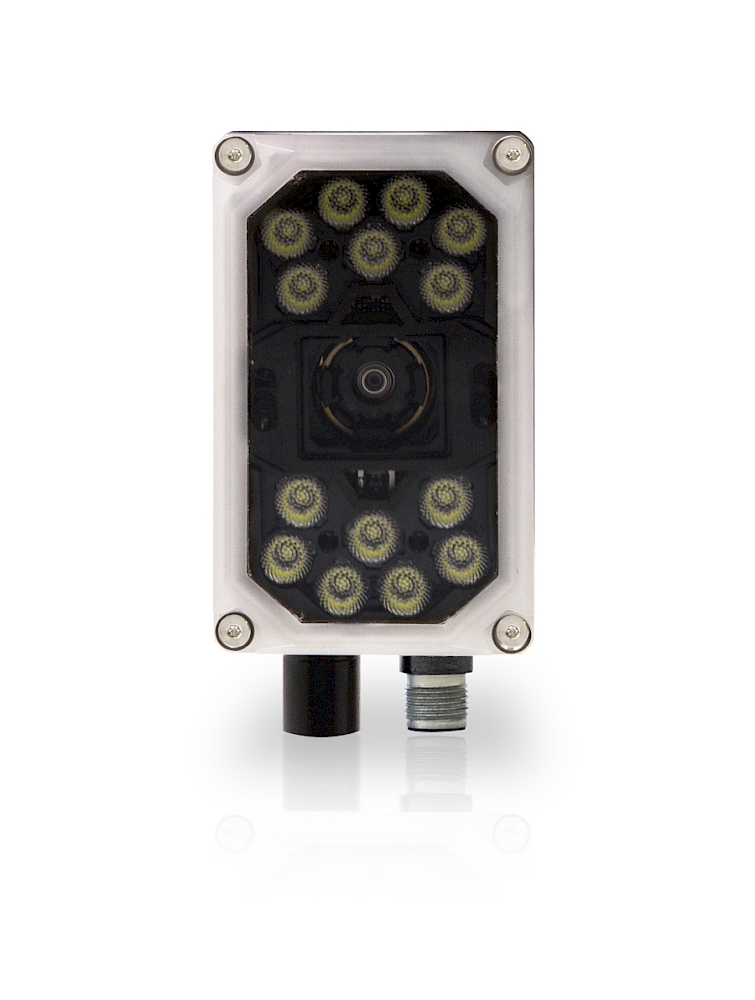

Datalogic Matrix 320
Flagship Industrial 2D Stationary Reader - 9mm Liquid Lens & White LED
Maximum Precision and High-Speed Performance
The Datalogic Matrix 320 is a state-of-the-art industrial 1D/2D stationary barcode reader engineered to deliver high-speed, uninterrupted scanning in the most demanding production environments. Its robust construction and modular design make it a premier choice for advanced automation, assembly lines, and complex intralogistics.
This configuration features a 2.07 Megapixel high-resolution sensor and Liquid Lens (LQL) technology with a 9 mm wide-angle focal length. The White Illumination provides a neutral light source, making it exceptionally versatile for reading color-coded labels, varied packaging, and low-contrast codes without the frequency interference sometimes found with colored LEDs.
Why Choose Matrix 320?
Liquid Lens Agility
Electronic focus allows the reader to adapt instantly to different distances without moving parts.
Extreme Durability
Robust IP67 housing designed to withstand vibration, dust, and washdown environments.
Superior FOV
Large field of view reduces the need for precise barcode alignment on high-speed belts.
IIoT Connectivity
Supports OPC UA, PROFINET, and EtherNet/IP for smart factory and Industry 4.0 standards.
Technical Specifications
| Parameter | Value |
|---|---|
| Resolution | 1920 x 1080 Pixels (2.07 Mpx) |
| Optical / Focus | 9 mm Liquid Lens (LQL) Electronic Focus |
| Illumination | High-Intensity White LED |
| Industrial Interfaces | Gigabit Ethernet, PROFINET, Modbus TCP, OPC UA, RS-232 |
| Environmental Seal | IP65 / IP67 Rating |
| Operating Temp. | -20°C to +50°C |
Target Industries & Uses
- Automotive & Electronics: Verification of DPM (Direct Part Marking) and small PCB codes.
- Pharma & Medical: High-density DataMatrix decoding and UDI (Unique Device Identification) tracking.
- Food & Packaging: High-speed sorting and expiration date verification on diverse packaging.
- Logistics: Automated sorting, label verification, and palletizing.
