Datalogic Matrix 220 395-110 XAI DPM-B 12MM Fixed Industrial Code Reader
Datalogic Matrix 220 XAI
Compact AI-Powered Industrial 2D Stationary Barcode Reader
Fast, Reliable, and High-Precision Scanning for Production Lines
The Datalogic Matrix 220 (M220) is a compact 1D/2D stationary industrial barcode reader specifically developed for production lines and automation applications with limited installation space. Thanks to its high reading speed and AI-accelerated performance, it is the ideal solution for intralogistics, assembly lines, and traceability applications.
With its advanced imaging technology and motorized focus, it offers superior reading success even on low-contrast, small, or faint barcodes. The compact design ensures easy integration into tight spaces while significantly increasing operational efficiency.
Why Choose Datalogic Matrix 220?
Compact & Efficient
Easy mounting in narrow spaces with no compromise on performance.
Stable Reading Performance
Reliable decoding of products moving at high speeds on conveyors.
Advanced Decoding
Maximum sensitivity for challenging 1D and 2D barcode symbols.
Fast Integration
Simplified commissioning via industrial communication protocols.
Technical Highlights

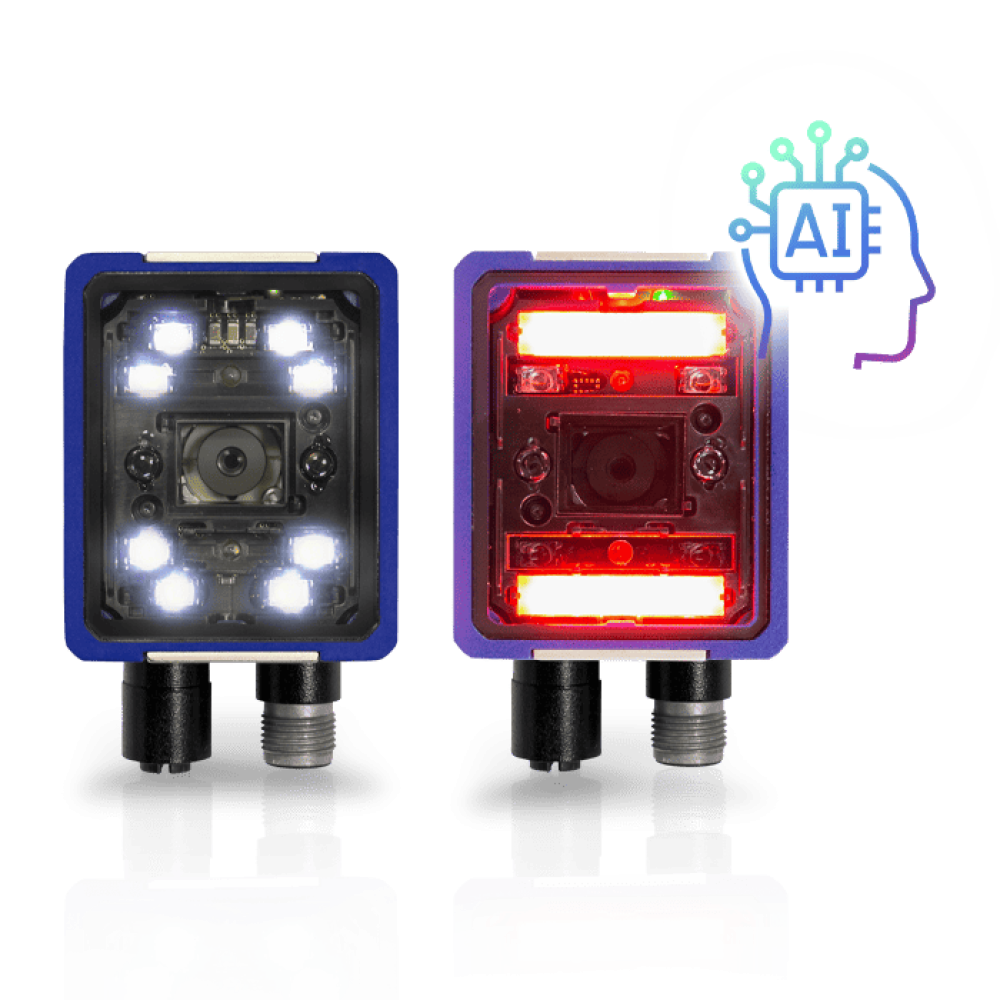

- AI-Powered Processing: Enhanced decoding speed for micro-codes and damaged labels.
- Motorized S-Mount Lens: Remote focus control eliminates the need for manual adjustments.

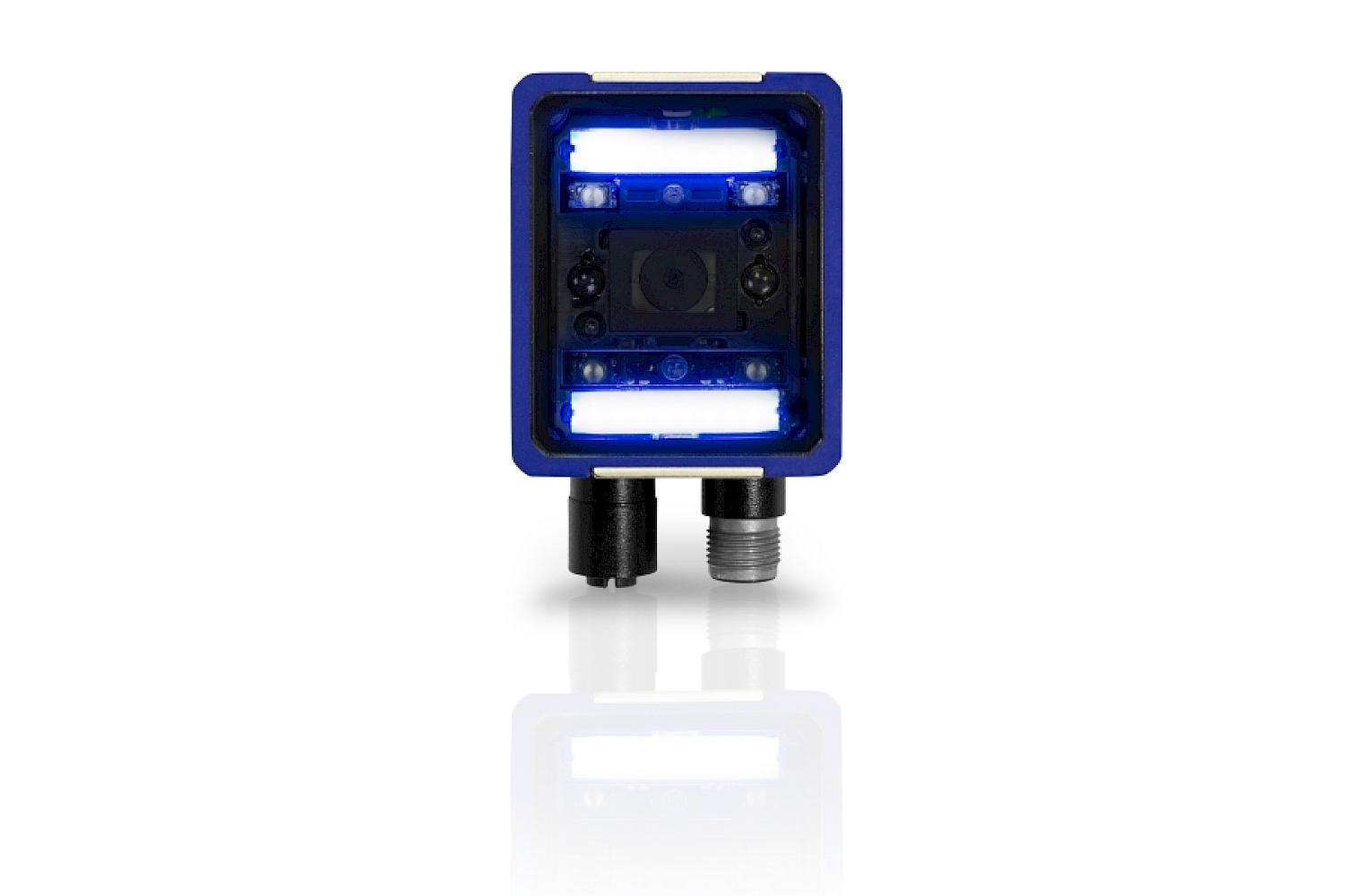

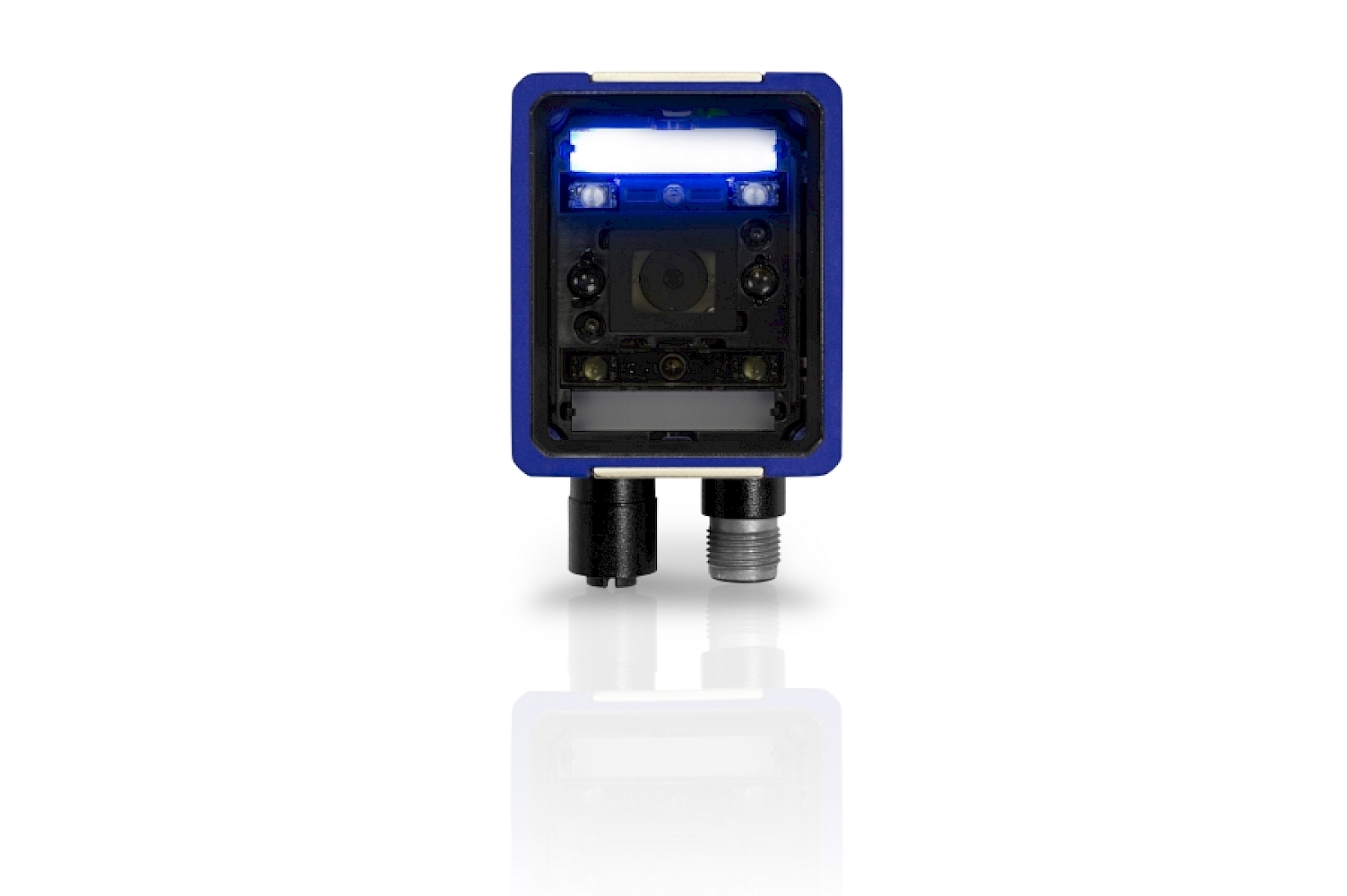

- Blue Lighting: Optimized for high-contrast reading on metallic or reflective surfaces.
- Rugged Construction: IP65/67 rating ensures longevity in oily or dusty environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Full Industrial Stationary Reader (AI-Enabled) |
| Scanning Technology | Area Imager (Motorized S-Mount) |
| Resolution | 1280 x 960 Pixels (1.2 Mpx) |
| Lens / Lighting | 12 mm Motorized / Blue LEDs |
| Interface | Gigabit Ethernet, PROFINET, Modbus TCP, RS-232/422 |
| Protection Class | IP65 / IP67 |
Primary Application Areas
- Automotive & Electronics: PCB tracking and component verification.
- Manufacturing: Work-In-Progress (WIP) tracking and automated quality gates.
- Pharmaceutical: UDI tracking and high-density DataMatrix applications.
- Food & Packaging: Product verification on high-speed bottling and packaging lines.
