Datalogic Matrix 220 385-110 XAI DPM-R 12MM Fixed Industrial Code Reader
Datalogic Matrix 220 XAI
Compact AI-Powered Industrial 2D Stationary Reader - 12mm Red LED
High-Speed, Reliable, and Precise Reading for Production Lines

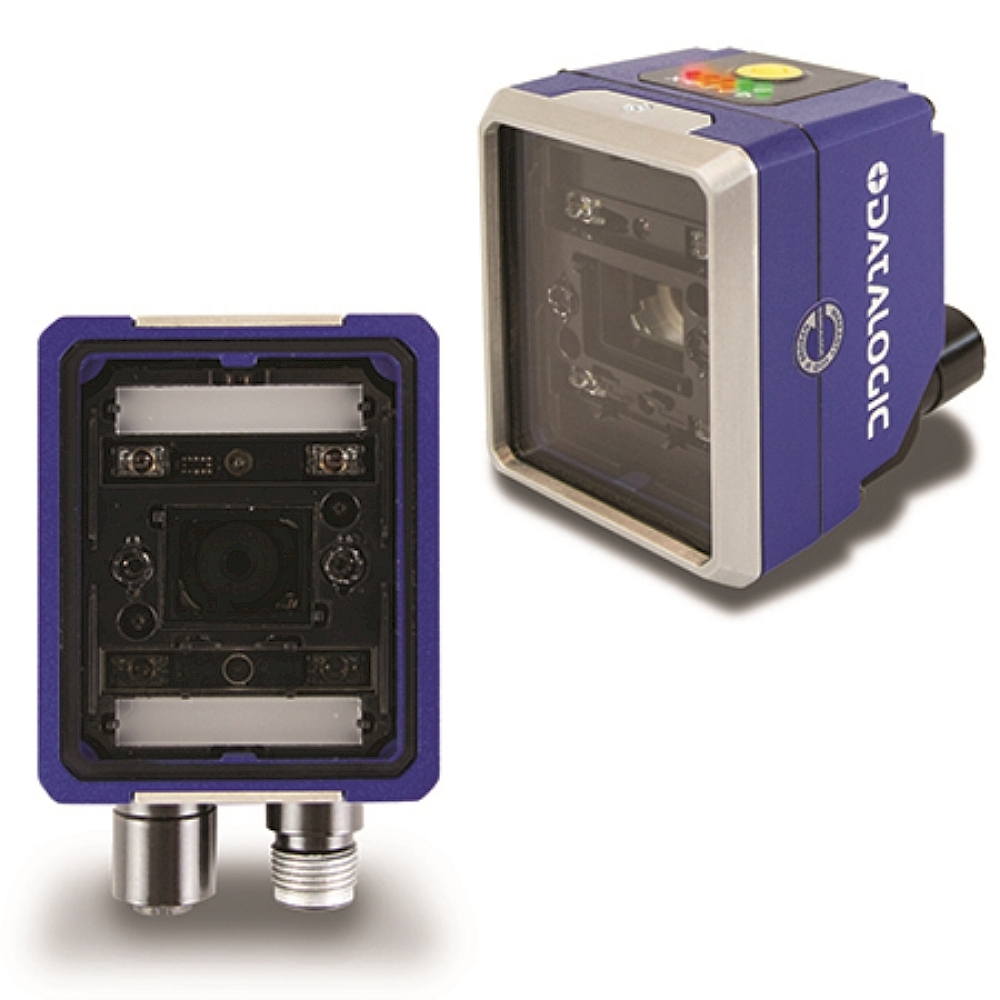

The Datalogic Matrix 220 (M220) is an ultra-compact stationary industrial barcode reader designed for production lines and automation environments where space is at a premium. Powered by Artificial Intelligence (XAI), it delivers exceptional 1D and 2D decoding performance for intralogistics, assembly lines, and high-speed traceability.

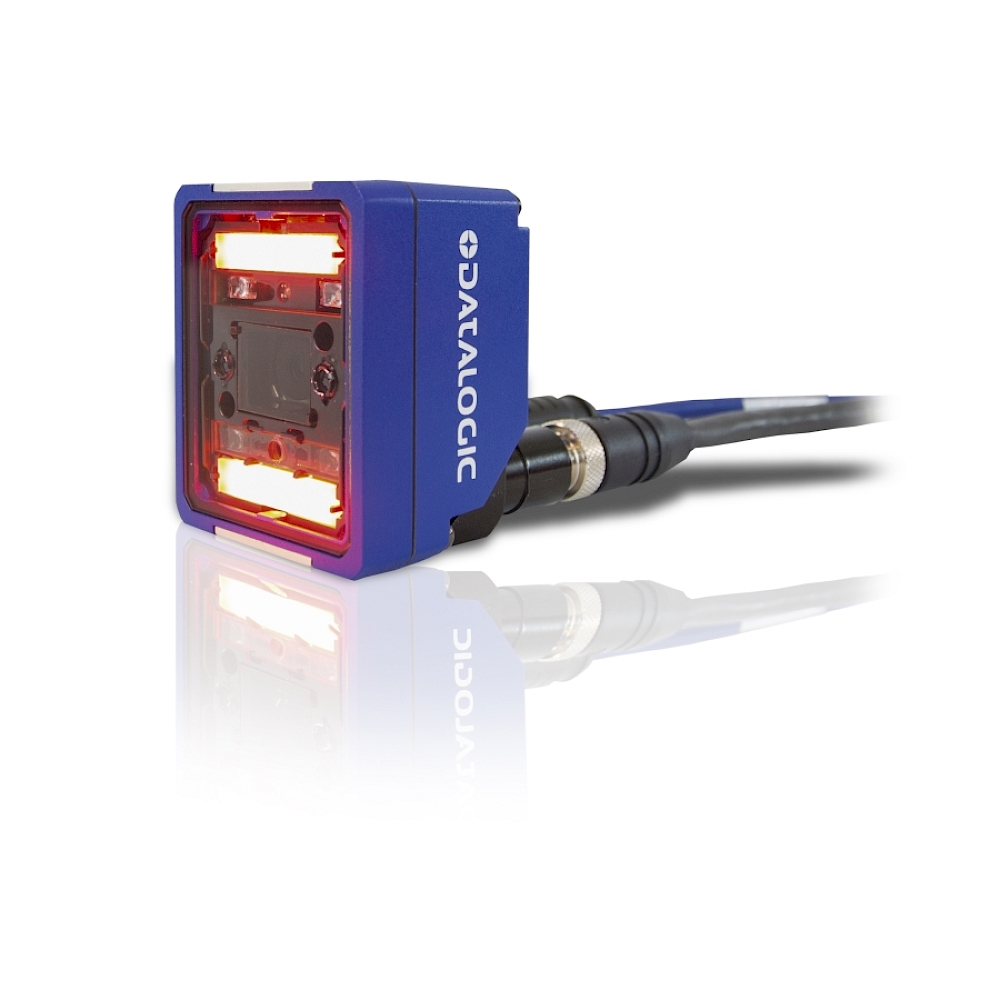

This configuration features a 12 mm motorized S-Mount lens paired with Red Illumination, providing superior performance on standard printed labels and high-speed conveyors. The motorized focus allows for remote electronic adjustments, ensuring sharp images without manual intervention.
Why Choose Datalogic Matrix 220 XAI?
Compact & Efficient
Engineered to fit into tight machine compartments and narrow conveyor setups.

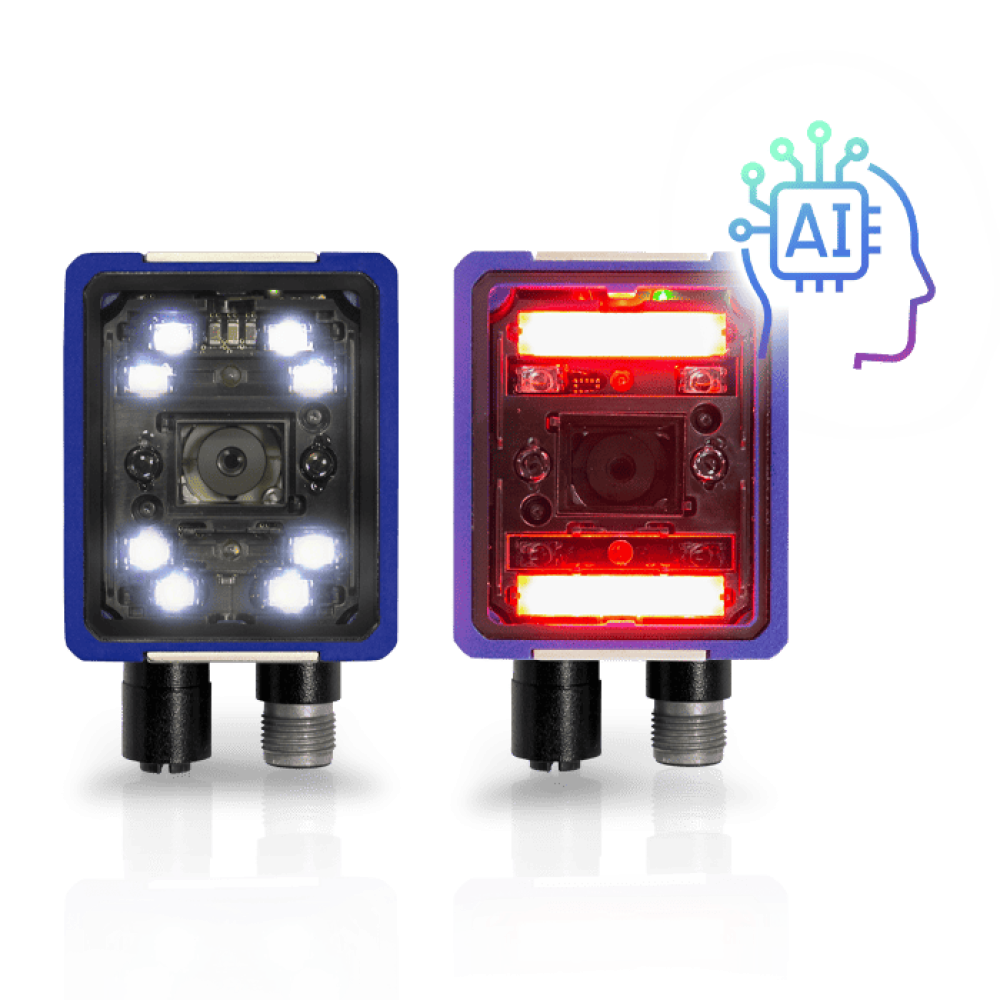

AI-Driven Decoding
Leverages machine learning to decode highly distorted, smudged, or faint codes instantly.
Motorized Focus
The 12mm lens allows for remote setup and automatic adjustment for different product heights.
Industrial Connectivity
Full support for PROFINET, EtherNet/IP, and Modbus TCP protocols.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Full Industrial Stationary Reader (AI-Powered) |
| Resolution | 1280 x 960 Pixels (1.2 Mpx) |
| Lens Configuration | 12 mm S-Mount (Motorized Control) |
| Illumination | Red LED (Optimized for standard labels) |
| Interface | Gigabit Ethernet, PROFINET, Modbus TCP, RS-232/422 |
| Protection Rating | IP65 / IP67 |
Target Industries
- Electronics: Tracking small PCBs and high-density components.
- Automotive: Verifying VIN codes and part numbers on assembly lines.
- Pharmaceutical: UDI tracking and high-speed blister pack verification.
- Food & Beverage: High-speed sorting and expiration date code verification.
