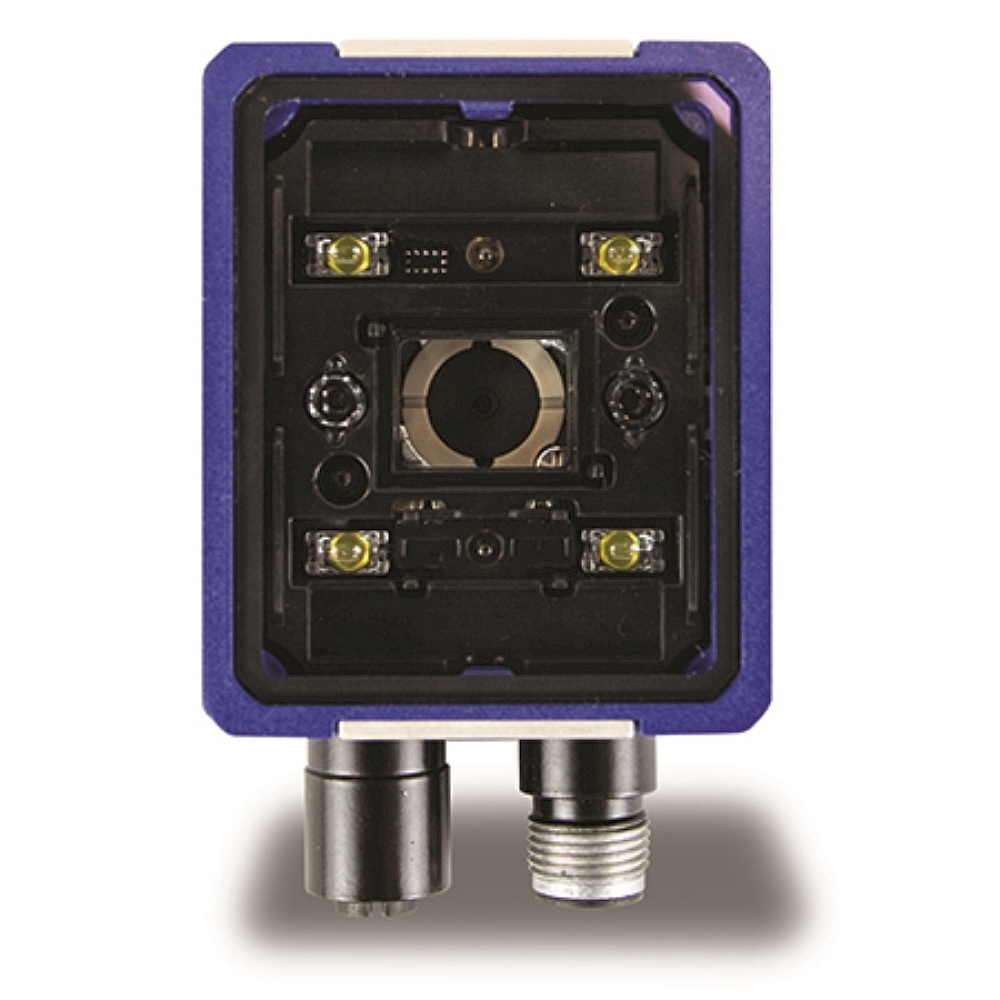

Datalogic Matrix 220 352-010 1.2MP STD-W 7MM X Fixed Industrial Code Reader
Datalogic Matrix 220
Compact Industrial 2D Stationary Barcode Reader - 7mm White LED
Fast, Reliable, and High-Precision Scanning for Production Lines
The Datalogic Matrix 220 (M220) is an ultra-compact 1D/2D stationary industrial barcode reader developed for production lines and automation applications where space is at a premium. Its high reading speed and robust performance make it an ideal solution for intralogistics, assembly lines, and traceability.
Equipped with advanced imaging technology, it delivers superior results even on low-contrast, small, or smudged barcodes. The 7 mm motorized S-Mount lens provides a wide field of view and remote focus adjustment, significantly increasing operational flexibility and efficiency.
Why Choose Datalogic Matrix 220?
Compact & Efficient
Designed for easy mounting in tight compartments with maximum performance.
Stable Reading
Reliable decoding of products moving at high speeds on conveyors.
Motorized Focus
The electronic focus adjustment eliminates manual tuning during setup.
Fast Integration
Direct support for PROFINET, EtherNet/IP, and Modbus TCP protocols.
Technical Specifications
| Feature | Value |
|---|---|
| Product Type | Full Industrial Stationary Reader |
| Resolution | 1280 x 960 Pixels (1.2 Mpx) |
| Lens Configuration | 7 mm S-Mount (Motorized) |
| Illumination | White LED (Neutral general purpose) |
| Interface | Gigabit Ethernet, PROFINET, Modbus TCP, RS-232/422 |
| Environmental Rating | IP65 / IP67 |
Target Applications
- Electronics & Automotive: PCB tracking and serial number verification.
- Manufacturing: Work-In-Progress (WIP) tracking and automated quality gates.
- Pharmaceutical: High-density DataMatrix codes and UDI tracking.
- Food & Beverage: Label verification on high-speed packaging lines.
