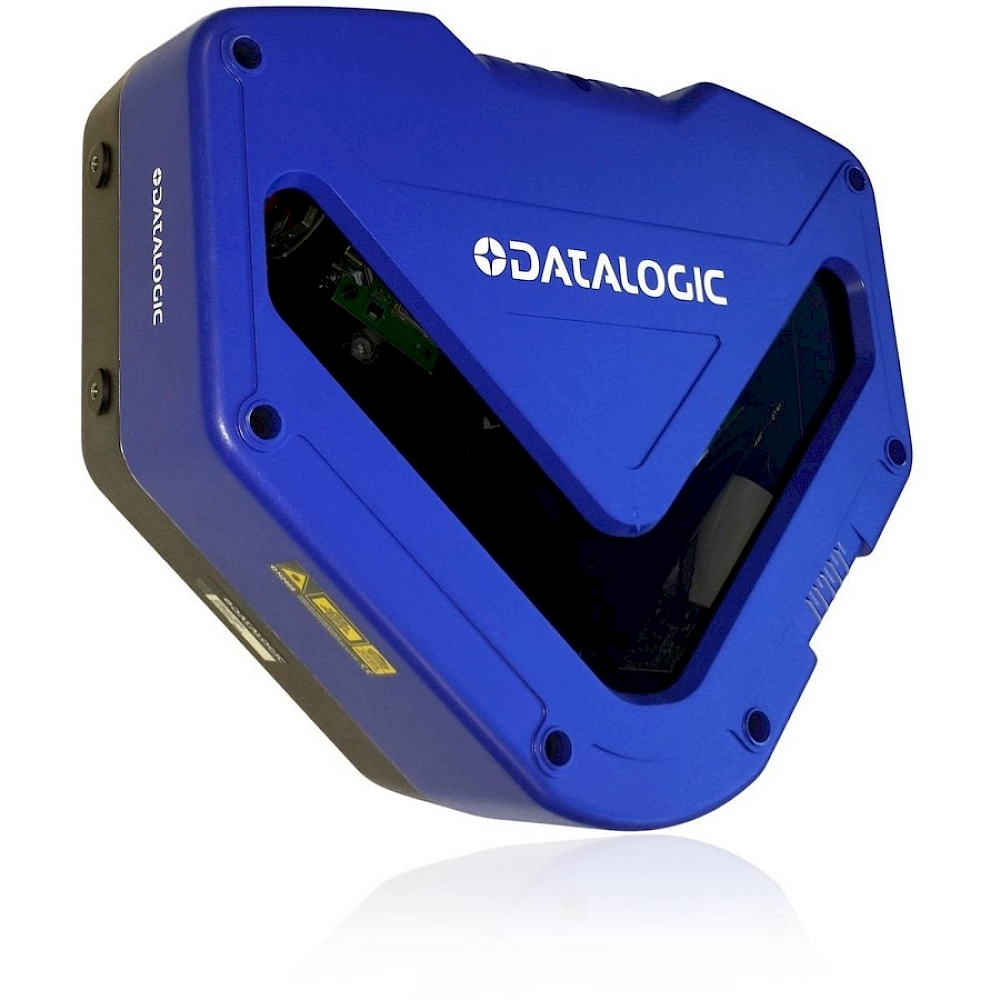

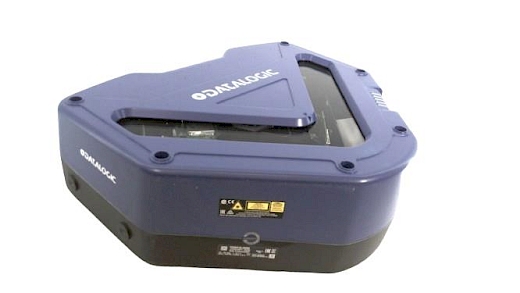

Datalogic DX8210-4200 High Resolution Extended Fixed Type Industrial Barcode Scanner
Product Code
936300004
Brands
The Datalogic fixed code reader family is fully customizable with different reader types and resolution options, easily adapting to any application. You can always reach us between 08:00 - 18:00 on weekdays regarding your needs and demands.
Scanning Method
Laser
Compatible Device Types
DS/DX Series
Communication Types
Ethernet IP
Communication Types
Modbus TCP
Communication Types
Profinet
Communication Types
RS232
Communication Types
RS422
Communication Types
TCP/IP
Communication Types
NTP
Device IP Class
IP65
Manual Code Reader Integration
Yes
Master-Slave Build Support
Yes
Readable Code Types
1D
Readable Code Types
Postal
Optical Scanning Head Orientation
Double
Min. Code Resolution
0.25 MM
Product Description
Datalogic DX8210-4200
High Resolution 1D Laser Barcode Scanner (Extended Range)
| Specification | Value |
|---|---|
| Product Type | 1D Laser Barcode Scanner |
| Technology | ASTRA™ G3 (Electronic Focusing) |
| Depth of Field (DOF) | 600 mm - 1850 mm (23 - 72 in) |
| Resolution (Min/Max) | Min: 0.25 mm (10 mils) / Max: 1.0 mm (40 mils) |
| Supported Symbologies | 22 symbologies including 2/5 family, Code39, Code93, Code128, EAN/UPC, EAN128, ISBN128 |
| Communication Interfaces | 2 x Ethernet TCP/IP, RS232/RS422, Embedded EtherNet/IP, PROFINET-IO, PROFIBUS-DP |
| Protection Class | IP65 / IP67 |
| Operating Temperature | -20°C to +50°C |
| Warranty | 2 Years against manufacturing defects |
