Datalogic CM9680 TCP/IP - Profinet IP40 Communication Module

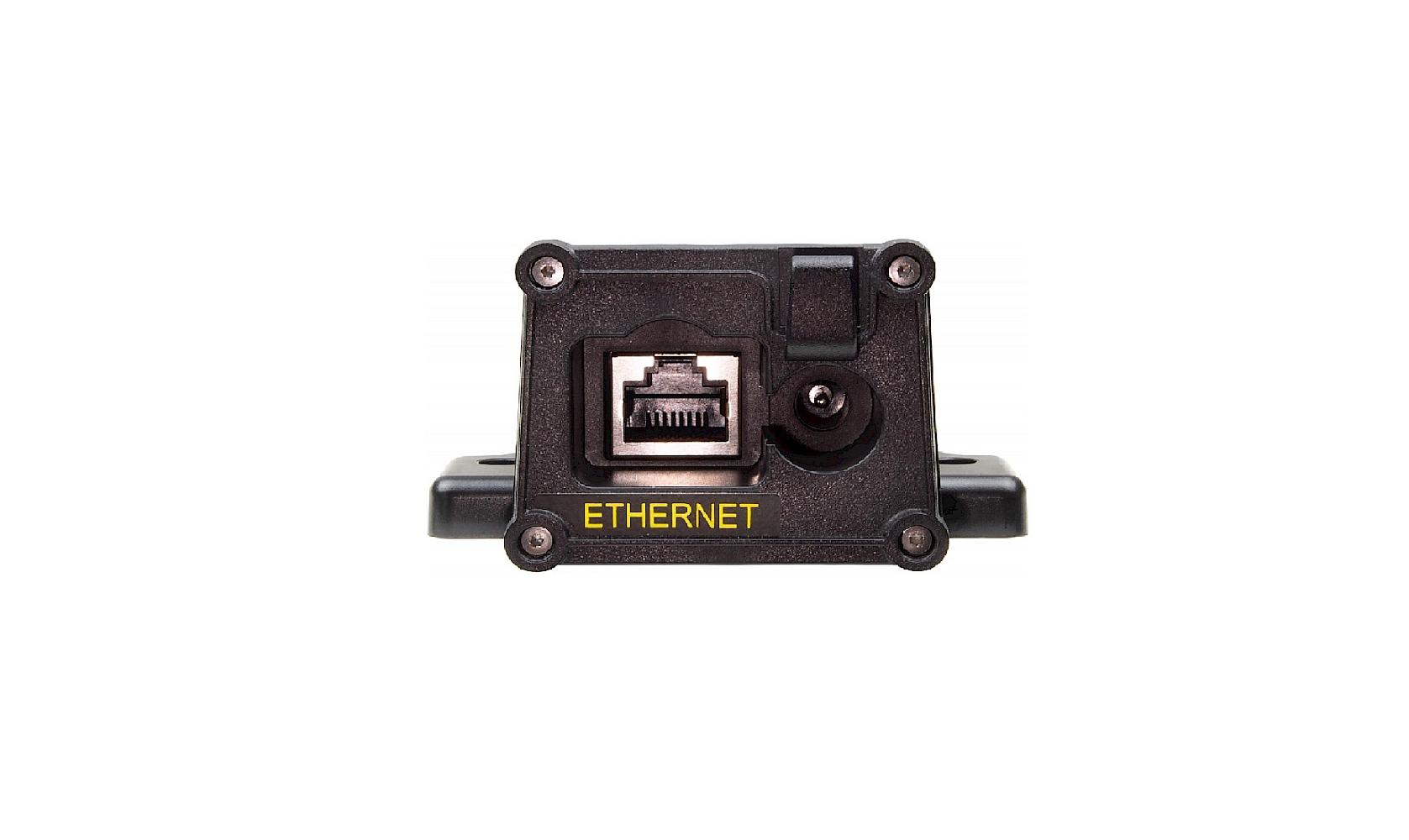

Datalogic CM9680
Industrial Profinet & TCP/IP Communication Module - IP40
Streamlined Industrial Networking for PowerScan 9600
The Datalogic CM9680 is a high-performance communication interface designed specifically for the PowerScan PM9600 base stations. It enables direct connectivity to Profinet (Layer-C) and Standard TCP/IP networks, allowing handheld scanners to function as native nodes within an industrial automation architecture.
With an IP40 protection rating, this module is optimized for indoor industrial applications, such as assembly stations and distribution centers, where equipment is protected from liquid ingress but requires reliable, high-speed data throughput to PLCs and host systems.
Key Advantages
Profinet Layer-C
Supports advanced industrial Ethernet standards for real-time deterministic communication.
Cost-Effective Integration
The IP40 design offers a more economical solution for environments that don't require washdown protection.
Enterprise Support
Full support for TCP/IP protocols including FTP and SFTP for secure data file transfers.
Plug-and-Play
Modular architecture allows for immediate recognition by the BC9600 base station upon installation.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | Industrial Communication Module |
| Supported Protocols | Profinet (Layer-C), TCP/IP, UDP, FTP |
| Compatible Devices | Datalogic PM9600 / PBT9600 Base Stations |
| Protection Rating | IP40 (Standard Indoor Protection) |
| Operating Temp. | -20°C to +50°C |
| Warranty | 2 Years |
Typical Applications
- Automotive Assembly: Connecting handheld scanners to Siemens S7-series PLCs via Profinet.
- Logistics & Warehousing: Real-time inventory updates over standard TCP/IP Ethernet networks.
- Electronics Manufacturing: Component tracking and Work-In-Progress (WIP) reporting to MES.
- Control Cabinet Mounting: Ideal for base stations mounted inside protective enclosures or clean environments.
