Datalogic CAB-433 RS232 Communication Cable
Datalogic CAB-433

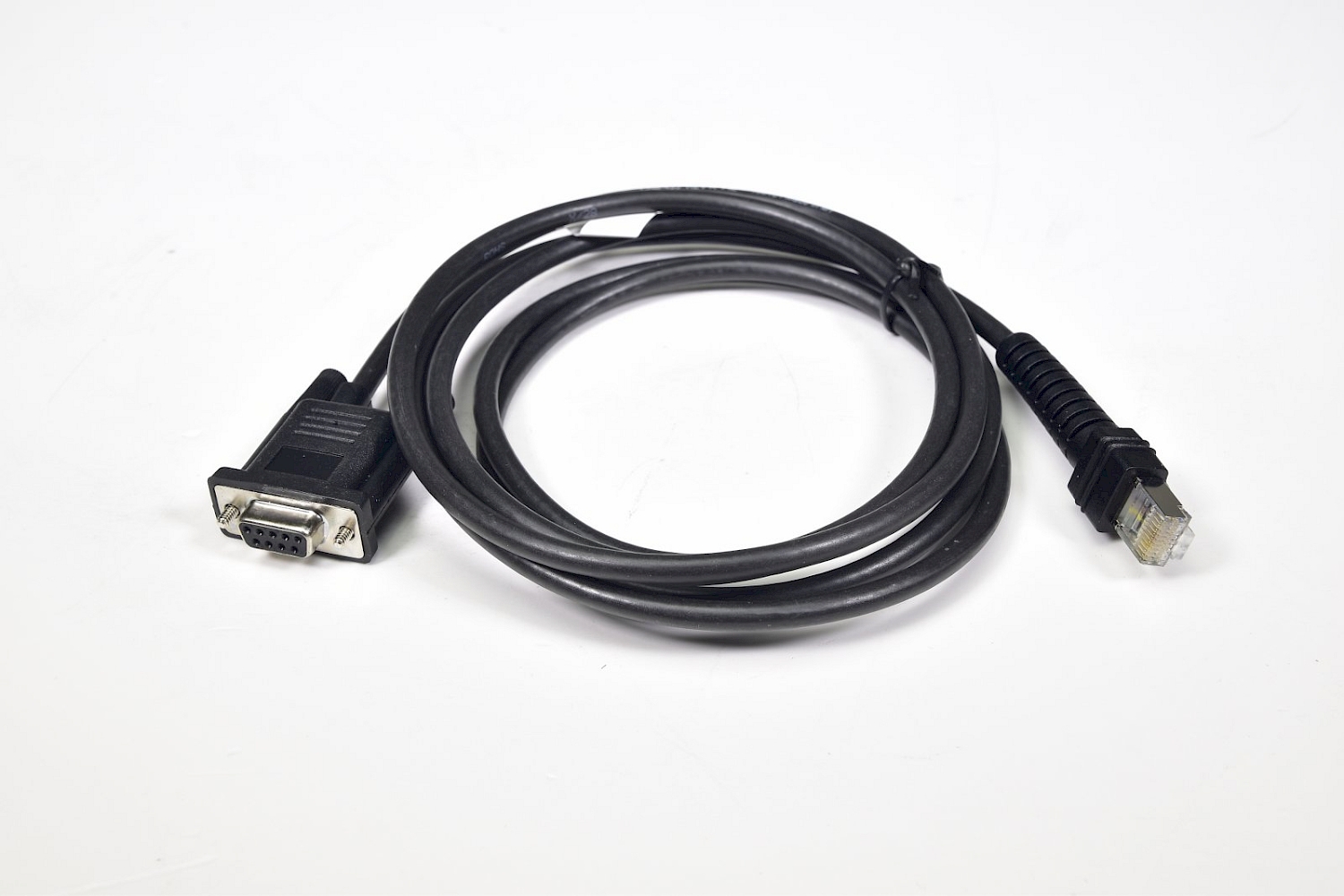

Industrial RS232 Serial Communication Cable - RJ45 to DB9 Female
Rugged Serial Connectivity for Industrial Automation
The Datalogic CAB-433 is a high-performance RS232 communication cable engineered for the PowerScan 9600 series. It bridges the gap between the scanner's base station (via a secure 10-pin RJ45 modular connector) and the host system using a standard DB9 Female serial interface.
This cable is designed to maintain the IP65/IP67 environmental sealing of the PowerScan system when properly installed. It is the ideal solution for environments where long-distance data transmission or direct PLC interfacing is required, providing a stable, interference-resistant signal.
Key Advantages
External Power Input
Features a DC power jack for external supply, essential for charging cordless models over RS232.
Heavy-Duty Shielding
High-grade internal shielding prevents data loss from electromagnetic interference (EMI).
Extreme Durability
Reinforced connectors and industrial-grade jacket withstand oils, chemicals, and mechanical stress.
Cold/Heat Resistant
Operates reliably in extreme temperatures ranging from -20°C to +50°C.
Technical Specifications
| Parameter | Description |
|---|---|

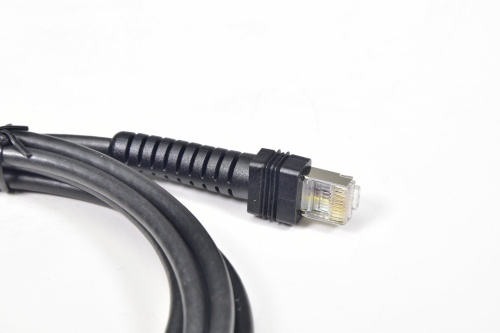

| Connector A | RJ45 (10-Pin Modular) |

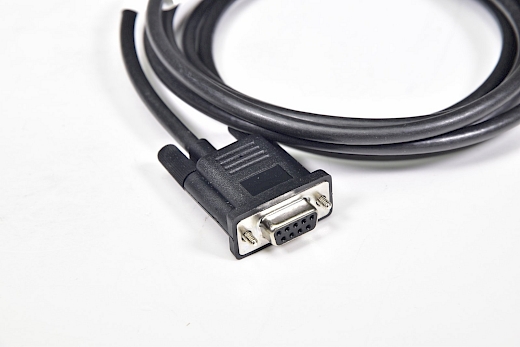

| Connector B | DB9 Female (RS232) |
| Supported Devices | Datalogic PM9600, PD9600, PBT9600 Cradles |
| Environmental Rating | IP65 / IP67 (Dust & Water Resistant) |
| Operating Temp. | -20°C to +50°C |
| Warranty | 2 Years |
Target Applications
- PLC Integration: Direct serial communication with industrial controllers.
- Retail & POS: Interfacing with older cash register systems and specialized terminals.
- Warehouse Automation: Long-distance cable runs where serial communication is more stable than USB.
- Outdoor & Harsh Zones: Sealing protection for use in environments prone to dust or rain.
