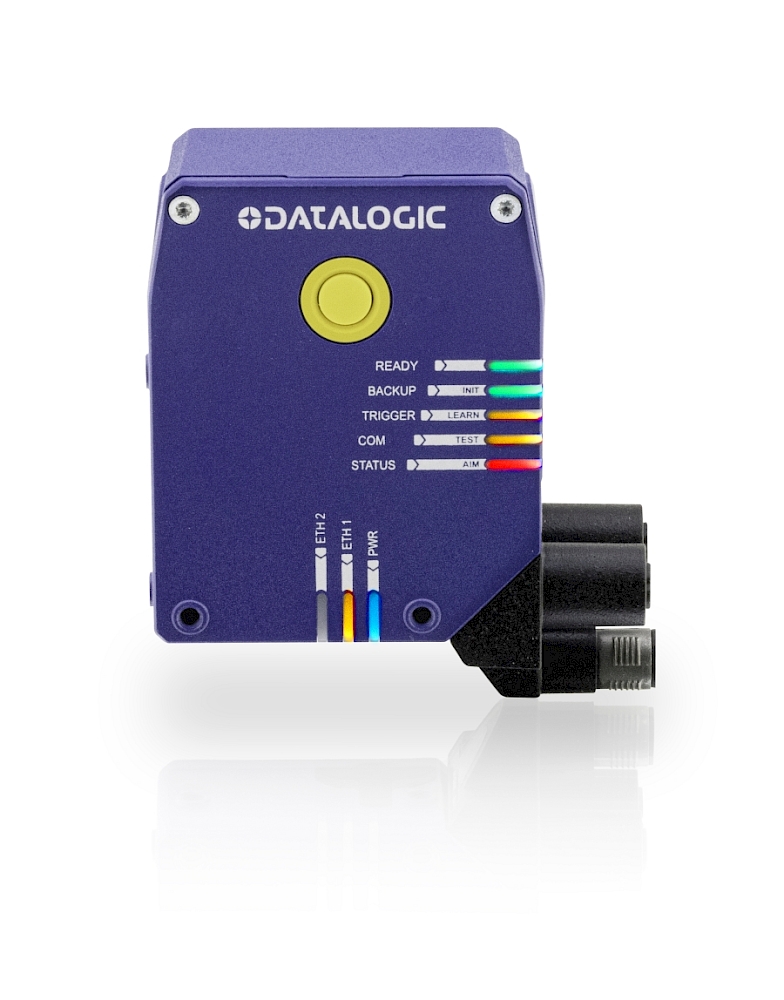

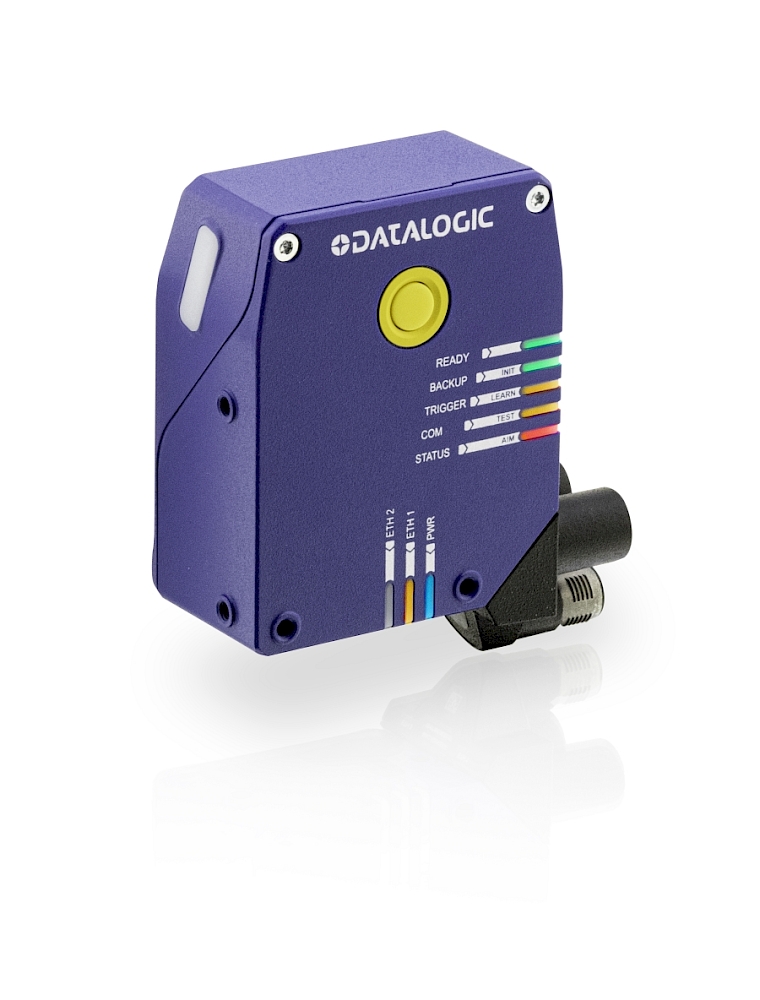

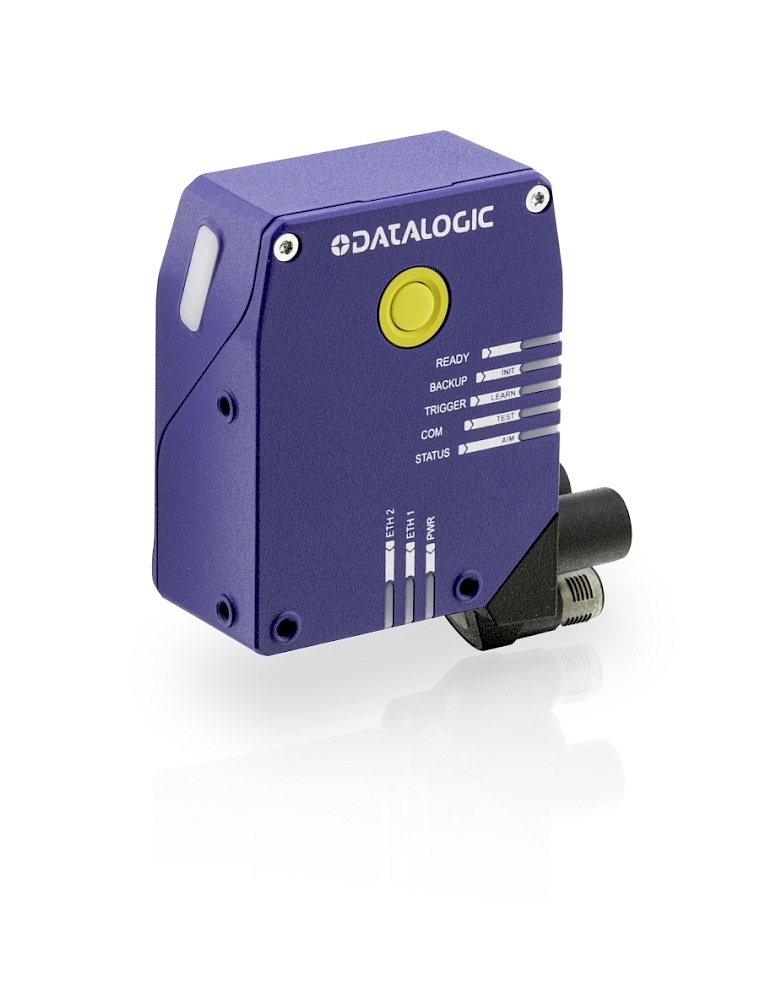

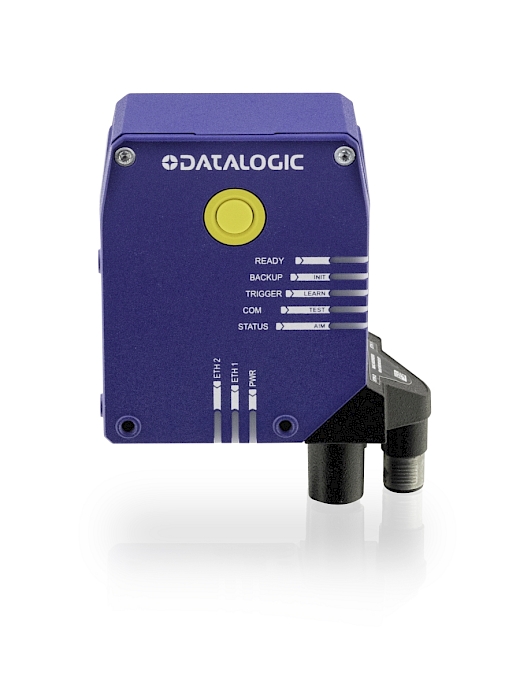

Datalogic Blade 200-1301 Fixed Industrial Scanner
Product Code
930190012
Brands
The Datalogic fixed code reader family is fully customizable with different reader types and resolution options, easily adapting to any application. You can always reach us between 08:00 - 18:00 on weekdays regarding your needs and demands.
Communication Types
Ethernet IP
Communication Types
Dual Profinet (x2)
Communication Types
RS232
Communication Types
RS422
Communication Types
TCP/IP
Communication Types
NTP
Device IP Class
IP65
Internal Program Support
Java Script
Lens Type
TOF Imager
Manual Code Reader Integration
Yes
Master-Slave Build Support
Yes
Readable Code Types
1D
Product Description
Datalogic Blade 200-1301 PNET SIDE
High-Performance 1D Industrial Imager Barcode Reader
| Specification | Value |
|---|---|
| Product Type | 1D Imager Barcode Reader |
| Imager / Resolution | CMOS // 2000 x 128 Px (0.25 Mpx Linear) |
| Depth of Field (DOF) | 100 mm - 600 mm |
| Reading Width | 400 mm (at Max DOF: 600 mm) |
| Supported Symbologies | Code I2 of 5, Code 39, Code 93, Code 128, EAN/UPC, GS1 128, Codabar, Pharmacode, Plessey, ISBT128 |
| Communication Protocols | Dual Port PROFINET (Conformance Class B) or Dual Port Ethernet/IP |
| Protection Class | IP65 / IP67 |
| Operating Temperature | -20°C to +50°C |
| Warranty | 2 Years against manufacturing defects |
