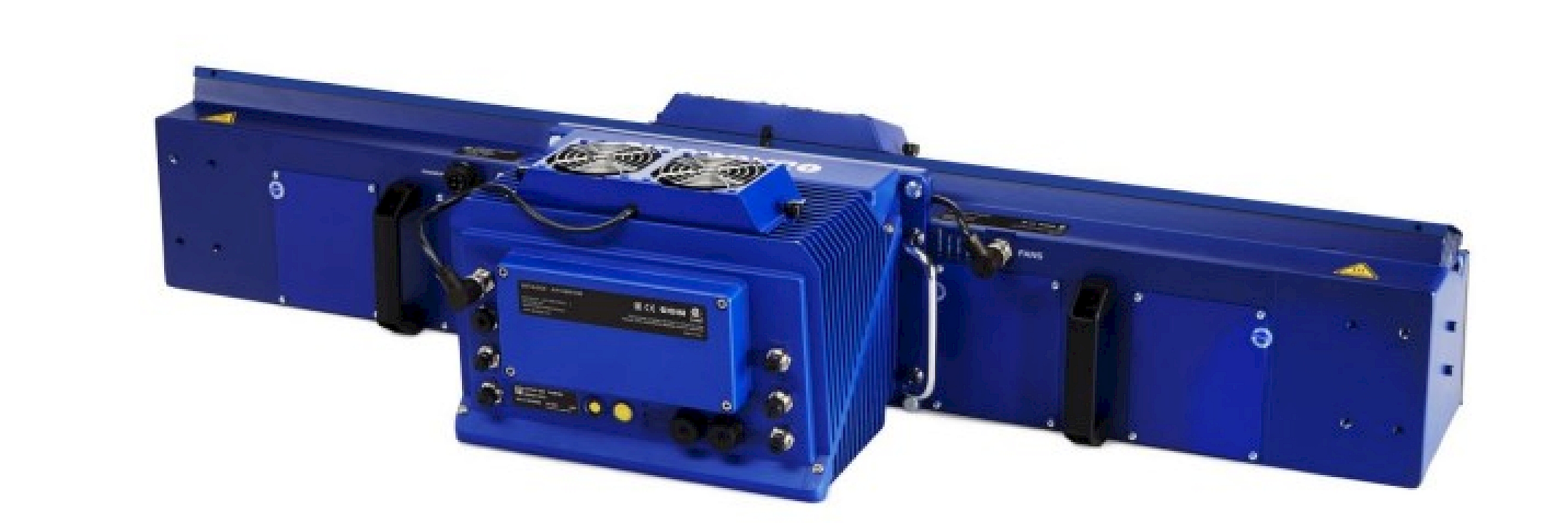

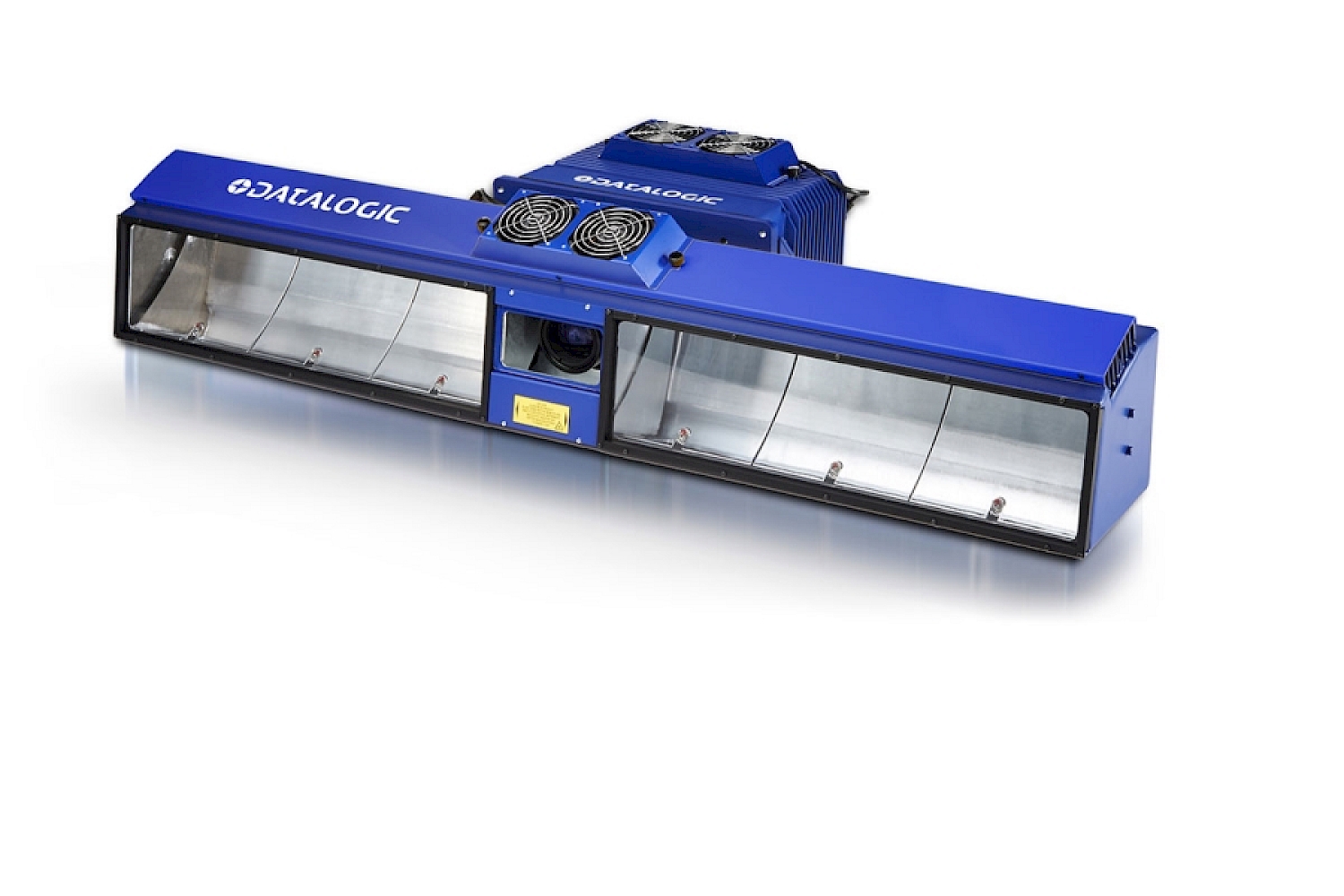

Datalogic AV7000-2200 12k 80mm f/8 Line Scan Code Reading System (12K)
Product Code
934002200
Brands
The Datalogic logistics code reader family is fully customizable with different reader types and resolution options, easily adapting to any application. You can always reach us between 08:00 - 18:00 on weekdays regarding your needs and demands.
Communication Types
Ethernet IP
Communication Types
FTP
Communication Types
Modbus TCP
Communication Types
OPC UA
Communication Types
Profinet
Communication Types
RS232
Communication Types
RS422
Communication Types
SFTP
Communication Types
TCP/IP
Communication Types
UDP
Communication Types
NTP
Communication Types
SLMP
Communication Types
HMS
Device IP Class
IP67
Internal Program Support
Java Script
Kit
No
Lens Size
80 mm
Readable Code Types
1D
Readable Code Types
2D
Readable Code Types
OCR
Readable Code Types
Postal
Readable Code Types
Stacked
Programmable
Yes
Resolution
12k
Product Description
Datalogic AV7000-2100
12K High-Speed Line Scan Logistics Code Reading System
| Specification | Value |
|---|---|
| Product Type | 12K Line Scan Logistics Code Reader |
| Imager / Resolution | High-Speed CMOS Line Scan (12,288 pixels) 12K |
| Lens / Illumination | 80mm f/5.6 / Red Light |
| Scan Rate / Focus | Up to 40,000 scans/s (40kHz) / Up to 1600 mm (63 in) |
| Min. Code Resolution | 0.17 mm (10 mils) |
| Decoding Symbologies | All standard 1D, 2D (Data Matrix, QR), Postal, and Stacked codes |
| Connectivity | 2 x Gigabit Ethernet (Data/Image), RS232/RS485 Opto-isolated |
| Protection Class | IP65 / IP67 |
| Operating Temp. | -20°C to +50°C |
| Warranty | 2 Years against manufacturing defects |
