Datalogic AV7000-2100 12k 100mm f/5.6 Line Scan Code Reading System (12K)
Product Code
934002100
Brands
The Datalogic logistics code reader family is fully customizable with different reader types and resolution options, easily adapting to any application. You can always reach us between 08:00 - 18:00 on weekdays regarding your needs and demands.
Communication Types
Ethernet IP
Communication Types
FTP
Communication Types
Smart SDK
Communication Types
OPC UA
Communication Types
Profinet
Communication Types
RS232
Communication Types
RS422
Communication Types
SFTP
Communication Types
TCP/IP
Communication Types
UDP
Communication Types
NTP
Communication Types
SLMP
Communication Types
HMS
Device IP Class
IP67
Internal Program Support
Java Script
Kit
No
Lens Size
100 mm
Readable Code Types
1D
Readable Code Types
2D
Readable Code Types
OCR
Readable Code Types
Postal
Readable Code Types
Stacked
Programmable
Yes
Resolution
12k
Product Description

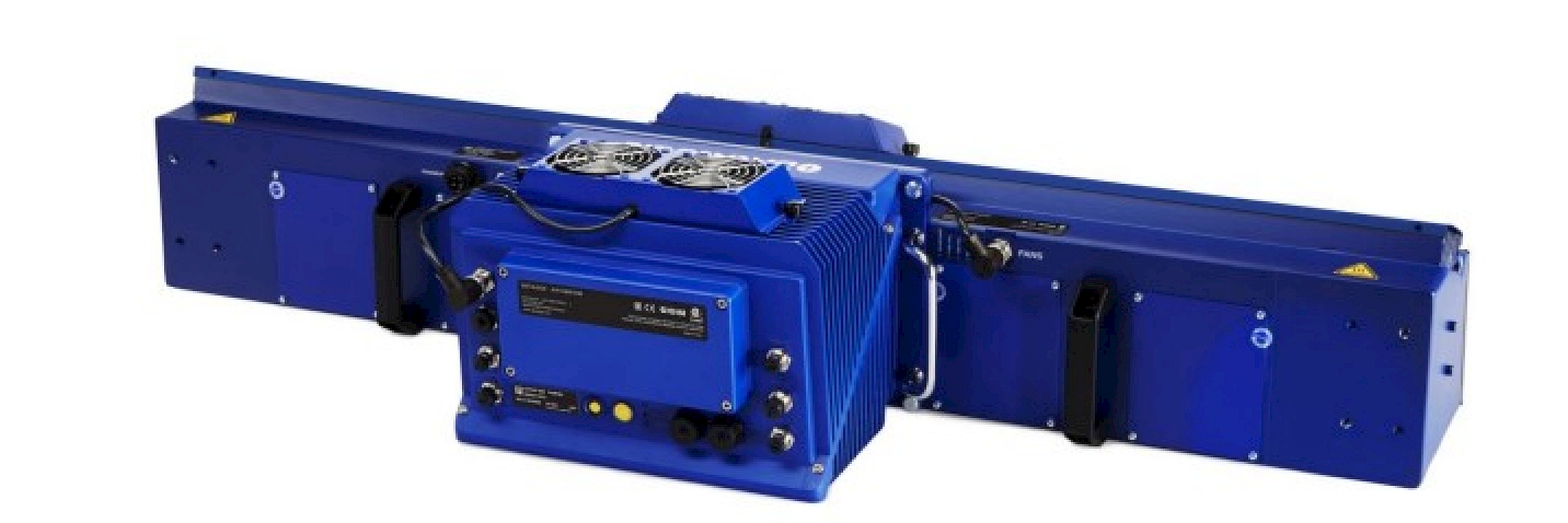

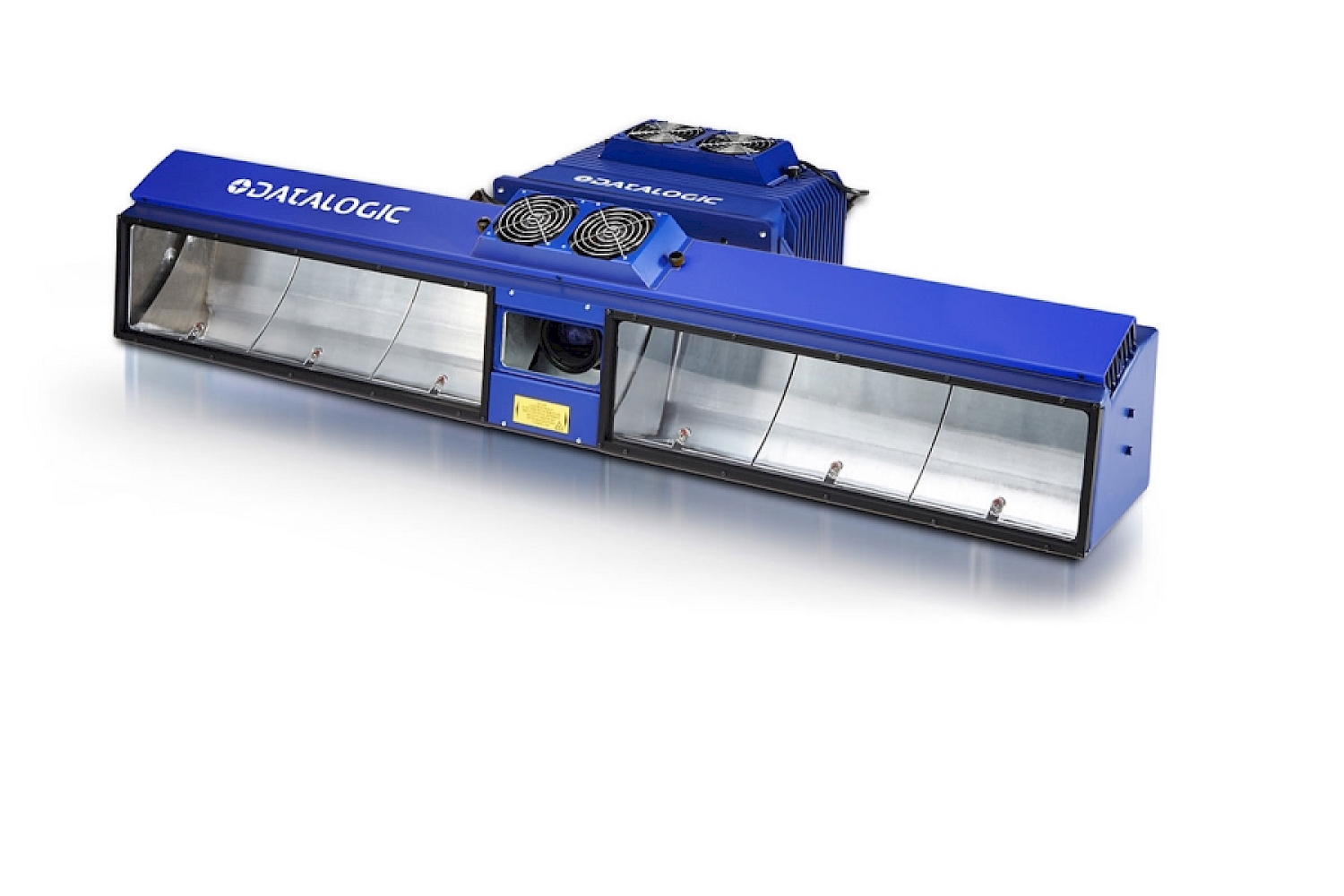

Datalogic AV7000-2100
12K High-Resolution Line Scan Logistics Reading System
| Specification | Value |
|---|---|
| Product Type | 12K Line Scan Logistics Code Reader |
| Imager / Resolution | High Speed CMOS Line Scan (12,288 pixels) 12K |
| Lens / Illumination | 100mm f/5.6 / Red Lighting |
| Scan Rate / Focus | Up to 40,000 scans/sec (40kHz) / Up to 1600 mm (63 in) |
| Code Resolution | Min: 0.17mm (10mils) / Max: 1.0mm (40mils) |
| Symbologies | Extensive 1D, 2D (Data Matrix, QR), Stacked (PDF417), and Postal Codes |
| Communication | Dual 1GbE (Data/Image), RS232/RS485FD Opto-isolated |
| Protection Class | IP65 / IP67 |
| Operating Temp. | -20°C to +50°C |
| Warranty | 2 Years against manufacturing defects |
