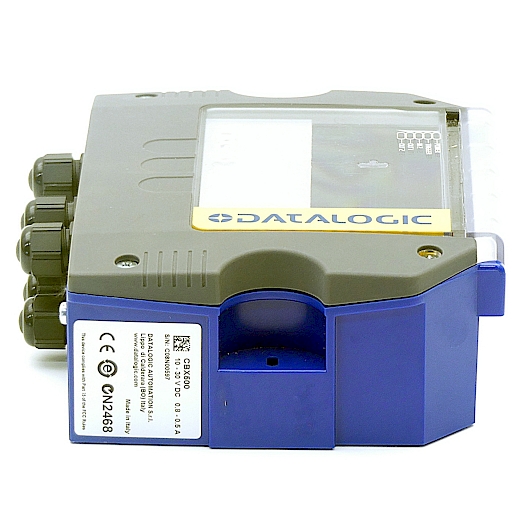

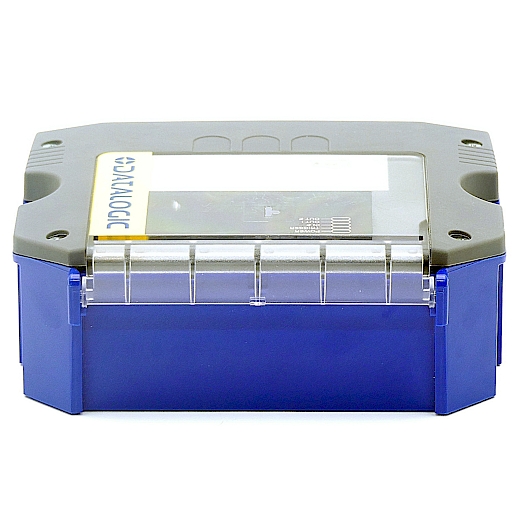

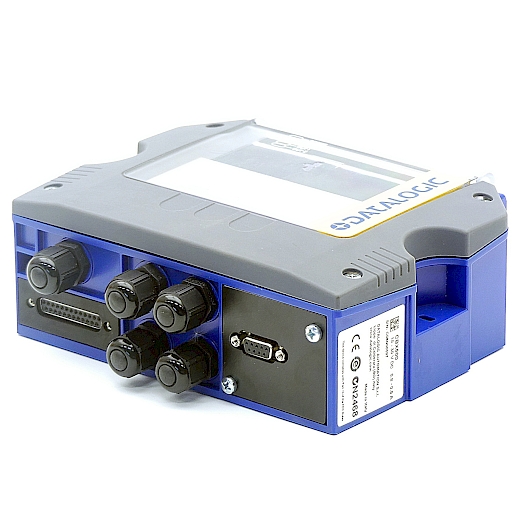

Connection Box for Datalogic Matrix Series (CBX500 CONNECTION BOX MODULAR)
Datalogic Matrix 320
High-Performance Industrial Imaging & Modular Connectivity
The Datalogic Matrix 320 is a flagship industrial 2D stationary imager, engineered to provide unrivaled reading performance on high-speed production lines. Its standout feature is the Liquid Lens (LQL) technology, which allows for electronic, remote focus adjustment—ideal for lines with varying package heights. This modular platform supports a wide range of lighting and lens options, ensuring maximum flexibility for complex traceability tasks.
Technical Specifications
| Product Category | Industrial Stationary 2D Reader |
| Imaging Sensor | 2.0 Megapixel (16:9) Global Shutter |
| Focus Control | LQL (Liquid Lens) Electronic Focus |
| Connectivity Accessory | Dedicated Industrial Connection Box |
| Industrial Protocols | PROFINET, EtherNet/IP, Modbus TCP, OPC UA |
| Networking Speed | 10/100/1000 Mbit/s (Gigabit Ethernet) |
| Protection Class | IP65 / IP67 |
| Operating Temp. | -20°C to +50°C |
Enhanced Integration: Connection Box Accessory
The Connection Box is a critical accessory for Matrix series readers. It simplifies wiring by providing dedicated terminals for power, serial communication (RS-232/485), and digital I/O triggers. It ensures reliable signal integrity in noisy electrical environments and facilitates rapid device replacement without rewiring the main cabinet.
Core Strengths
- High Frame Rate: Captures barcodes on ultra-fast conveyors.
- Global Shutter: Eliminates motion blur and distortion.
- Smart Logic: Advanced algorithms for damaged/low-contrast codes.
Top Use Cases
- E-commerce: High-volume parcel and polybag sorting.
- Automotive: Direct Part Marking (DPM) traceability.
- Pharma: High-resolution UDI and DataMatrix verification.
