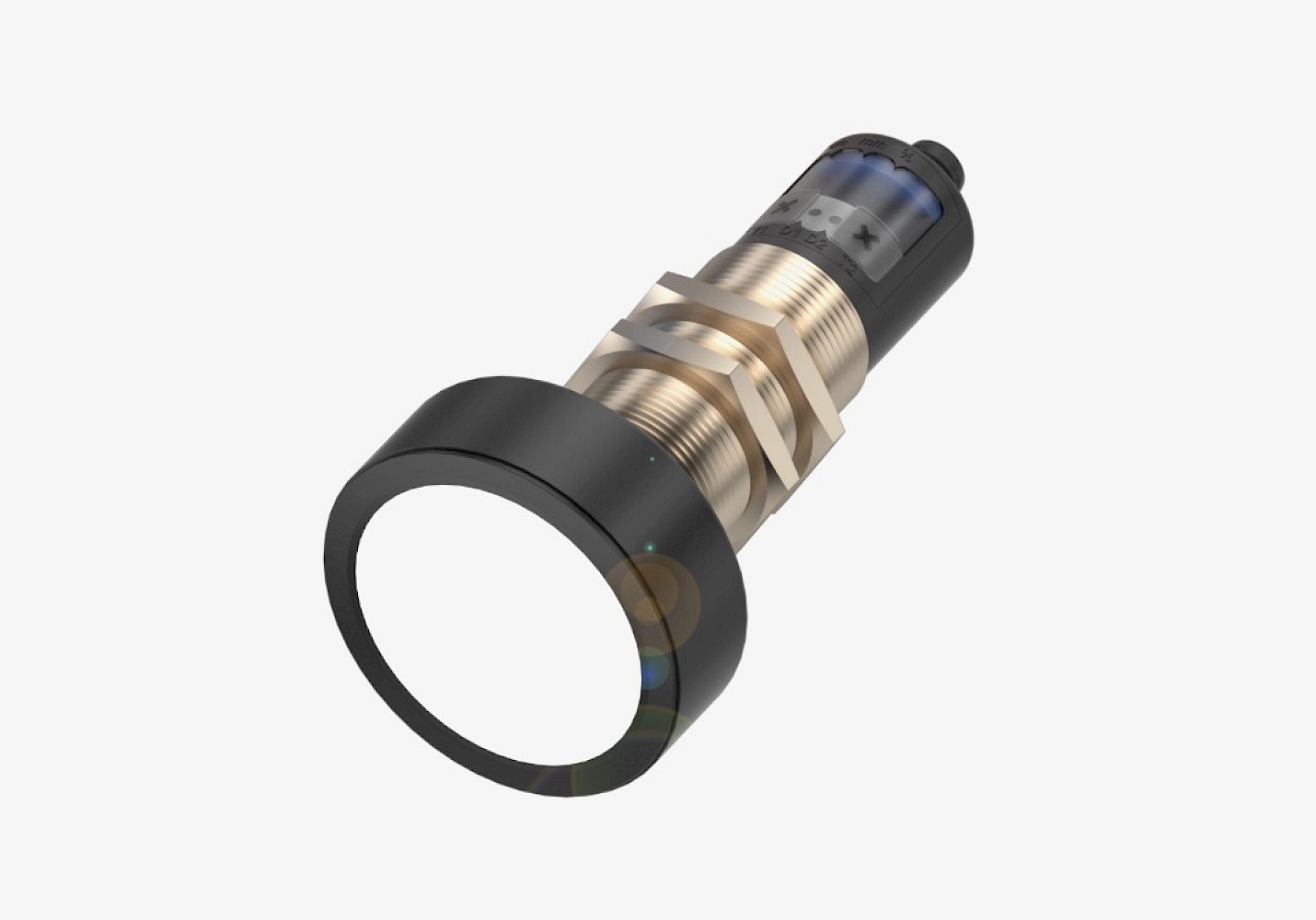

Balluff BUS0041 M30 600..8000mm M12 5 Pin Connector 0..10V/4-20mA Ultrasonic Sensor with Analog Output
Product Code
BUS0041
Brands
Ultrasonic Sensors
A-Connector Angle
Straight
A-Connector Connection
M12
Sensing Distance
8000 mm
Number of Connection Pins
5 Pin
Connection Type
With connector
Body Type
M30
Device IP Class
IP67
Sensor Type
Ultrasonic
Output Type
0-10 V Programmable
Output Type
4-20mA Programmable
Product Description
Balluff BUS0041 Technical Specifications
M30 Ultrasonic Sensor | 8m Long Range | Analog Output
| Feature | Description |
|---|---|
| Housing Size | M30x1.5 Threaded Barrel (Metal/Brass) |
| Sensing Range | 600 mm to 8000 mm (8 Meters) |
| Analog Output | Switchable 0..10V / 4..20mA |
| Operating Voltage | 9 V to 30 V DC |
| Connection | M12x1 Connector, 5-Pin (A-Coded) |
| Accuracy/Resolution | ± 0.18 mm (Resolution) |
| Protection Rating | IP67 |
| Temperature Range | -25°C to +70°C |
Product Links
Ürün Bilgi Formu
€ 336,00
18.137,44 ₺
