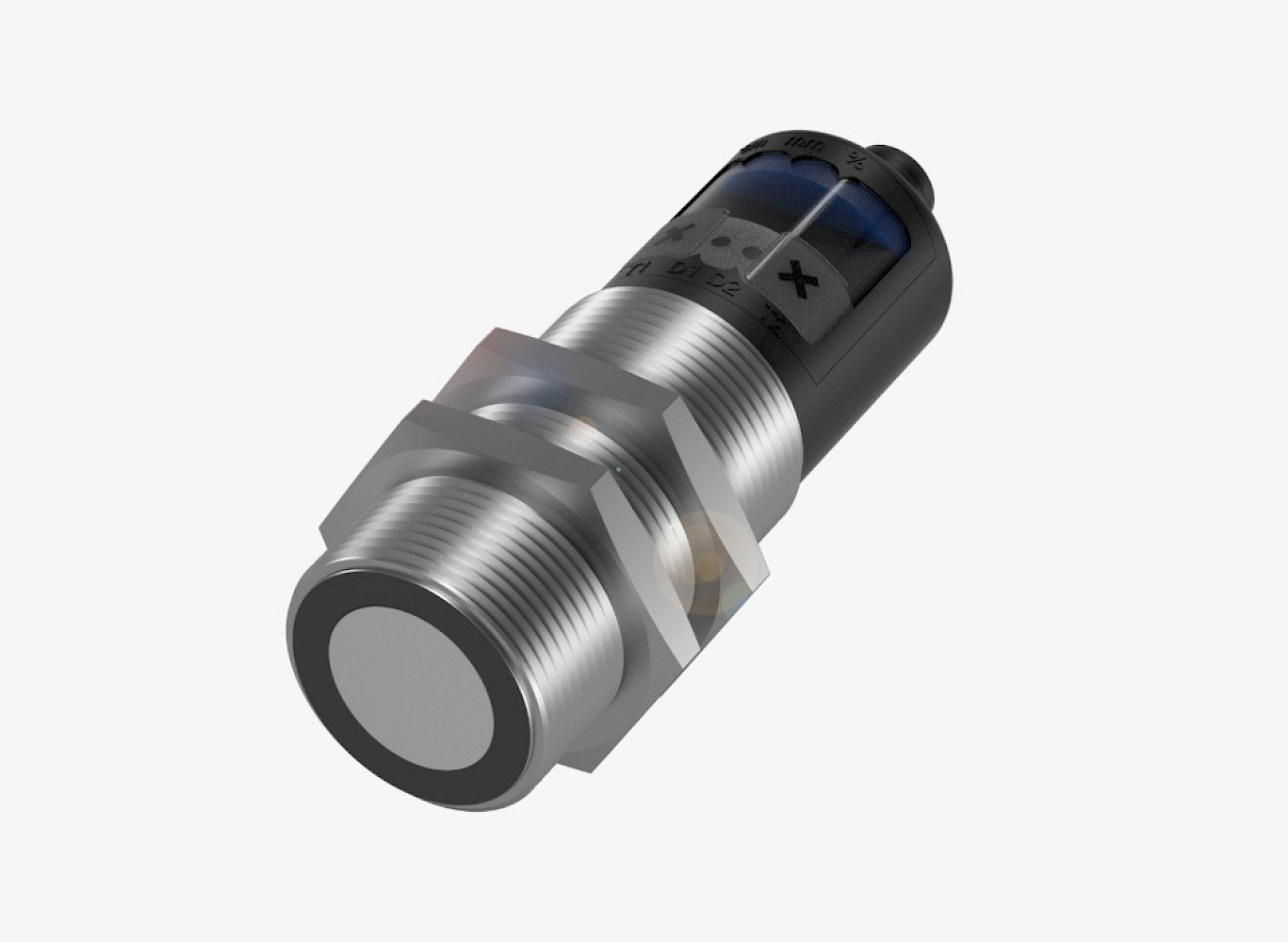

Balluff BUS003T M30 350..5000mm M12 5 Pin Connector 0..10V/4-20mA Ultrasonic Sensor with Analog Output
Product Code
BUS003T
Brands
Ultrasonic Sensors
A-Connector Angle
Straight
A-Connector Connection
M12
Sensing Distance
5000 mm
Number of Connection Pins
5 Pin
Connection Type
With connector
Body Type
M30
Device IP Class
IP67
Sensor Type
Ultrasonic
Output Type
0-10 V Programmable
Output Type
4-20mA Programmable
Product Description
Balluff BUS003T Technical Specifications
M30 Ultrasonic Sensor | 5m Range | Analog Output
| Feature | Description |
|---|---|

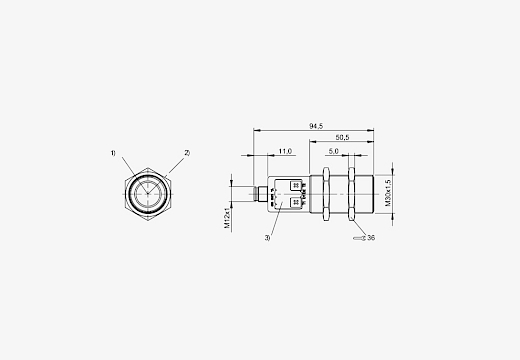

| Housing Diameter | M30x1.5 Threaded Barrel (Metal/Brass) |
| Sensing Range | 350 mm to 5000 mm (5 Meters) |
| Analog Output | Switchable 0..10V / 4..20mA |
| Operating Voltage | 9 V to 30 V DC |
| Connection | M12x1 Connector, 5-Pin (A-Coded) |
| Resolution | 0.18 mm |
| Protection Rating | IP67 |
| Operating Temperature | -25°C to +70°C |
Product Links
Ürün Bilgi Formu
€ 330,00
17.813,56 ₺
