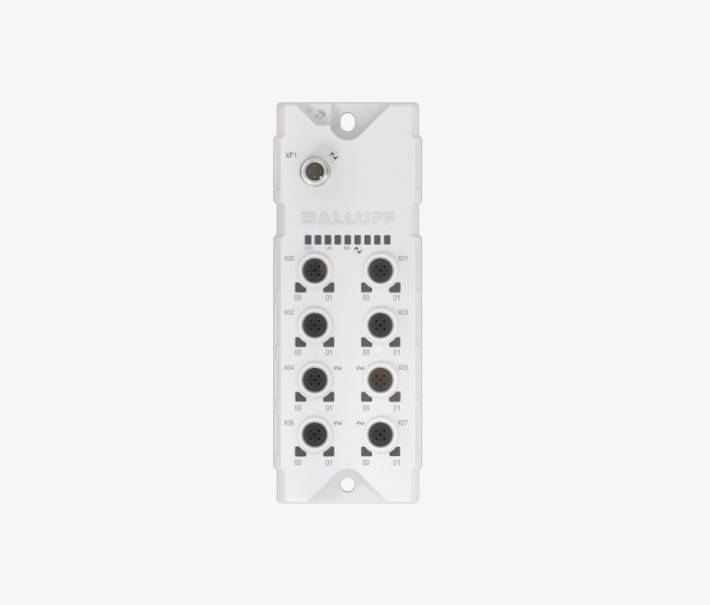

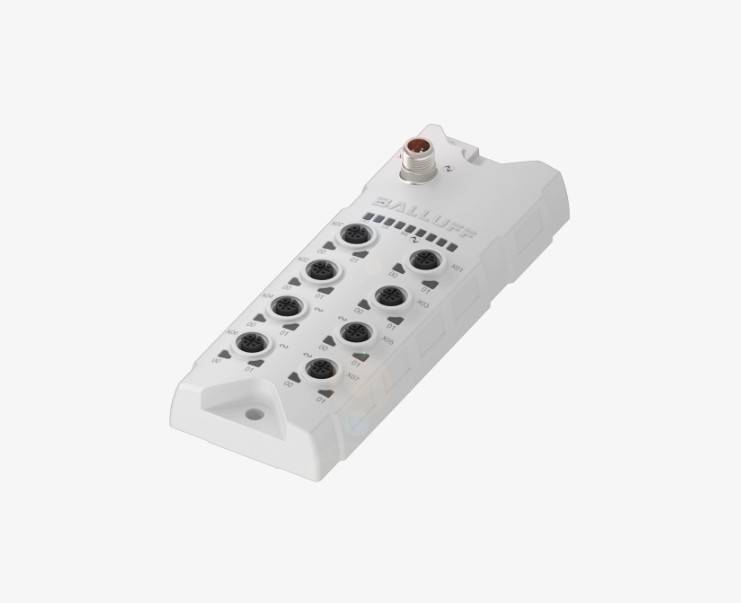

Balluff BNI00F9 8 Port M12x1 Washdown Line Plastic Housing IO Link 4x Analog Output IP69K Slave Module QMax:4A
Product Code
BNI00F9
Brands
IO Link Slave Module
Supply Connector
M12
Outer Body Material
PBT
Input Signal Type
Analog, Voltage/Analog, Current/(0... 10 V/-10... 10 V/0... 5 V/-5... 5 V/5...10 V/4... 20 mA/0... 20 mA)
Device IP Class
IP68
Device IP Class
IP69
Port Connection
M12
Output Current Per Port
4A
Number of Ports
8
Total Output Current
4A
Product Description
Balluff BNI00F9 Washdown Line IO-Link Slave Module, 8-Port M12, Multi-Analog Output, IP69K
| Feature | Description |
|---|---|
| Product Type | IO-Link Slave Module (Hub) |
| Number of Ports | 8x M12x1, 5-Pin A-Coded |
| Housing Material | Washdown Resistant Plastic (Ecolab Certified) |
| Analog Outputs | 4x Configurable Analog (Voltage: ±10V, ±5V, 0-10V, 0-5V, 5-10V / Current: 0-20mA, 4-20mA) |
| Max. Output Current per Port | 4 A |
| Total Output Current | 4 A |
| Interface | IO-Link 1.1 |
| IP Rating | IP68, IP69K (High-Pressure Washdown Resistant) |
