Balluff BNI0098 8 Port M12x1 PROFIsafe Safe Line Metal Body IO Link Slave Module QMax:8A
Product Code
BNI0098
Brands
IO Link Slave Module
Supply Connector
M12
Outer Body Material
Metal
Device IP Class
IP67
Port Connection
M12
Output Current Per Port
4.8A
Number of Ports
8
Port Class
Type 3
Total Output Current
8A
Output Type
PNP
Product Description

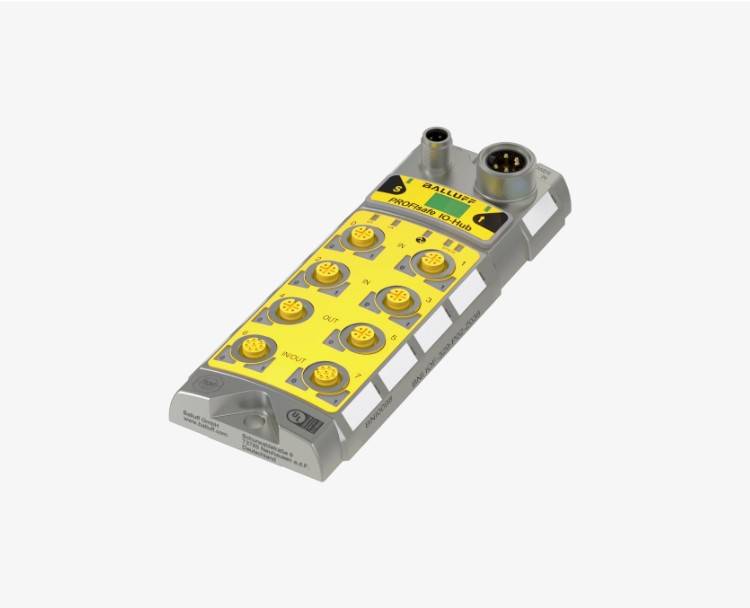

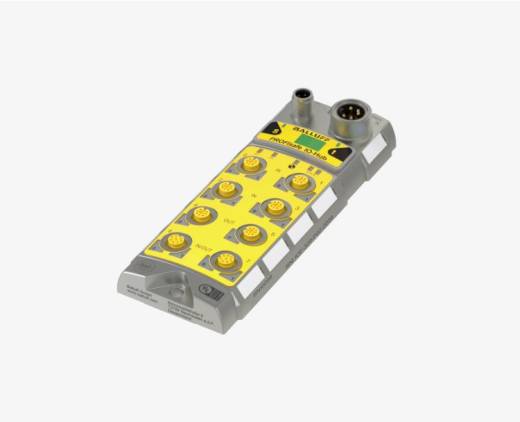

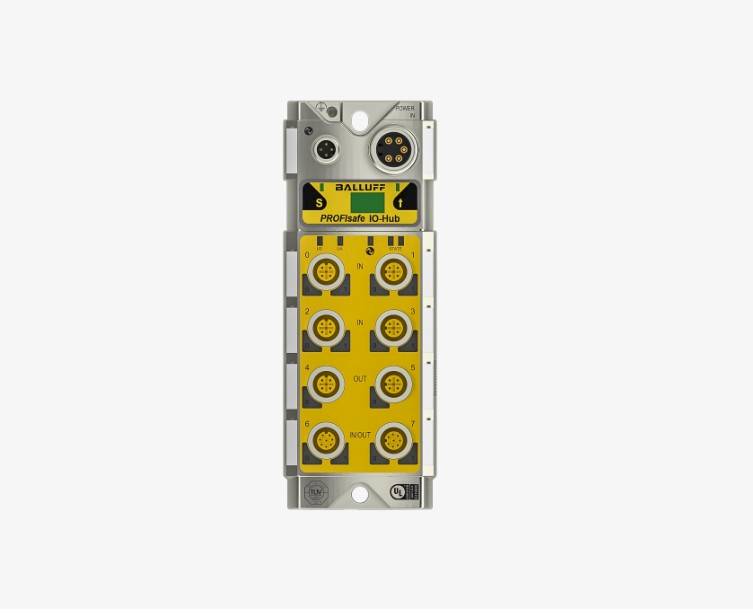

Balluff BNI0098 Safe Line IO-Link Slave Module, 8-Port M12, PROFIsafe, Metal
| Feature | Description |
|---|---|
| Product Type | PROFIsafe IO-Link Slave Module (Safety Hub) |
| Number of Ports | 8x M12x1, 5-Pin A-Coded Female |
| Housing Material | Zinc Die-Cast (Metal / Safe Line Series) |
| Digital Output | PNP (Safety-Related) |
| Max. Output Current per Port | 4.8 A (High Current Support) |
| Total Output Current | 8 A |
| Interface | IO-Link 1.1 with PROFIsafe Support |
| IP Rating | IP67 (When properly connected and screwed) |
Product Links
Ürün Bilgi Formu
€ 612,00
33.979,95 ₺
