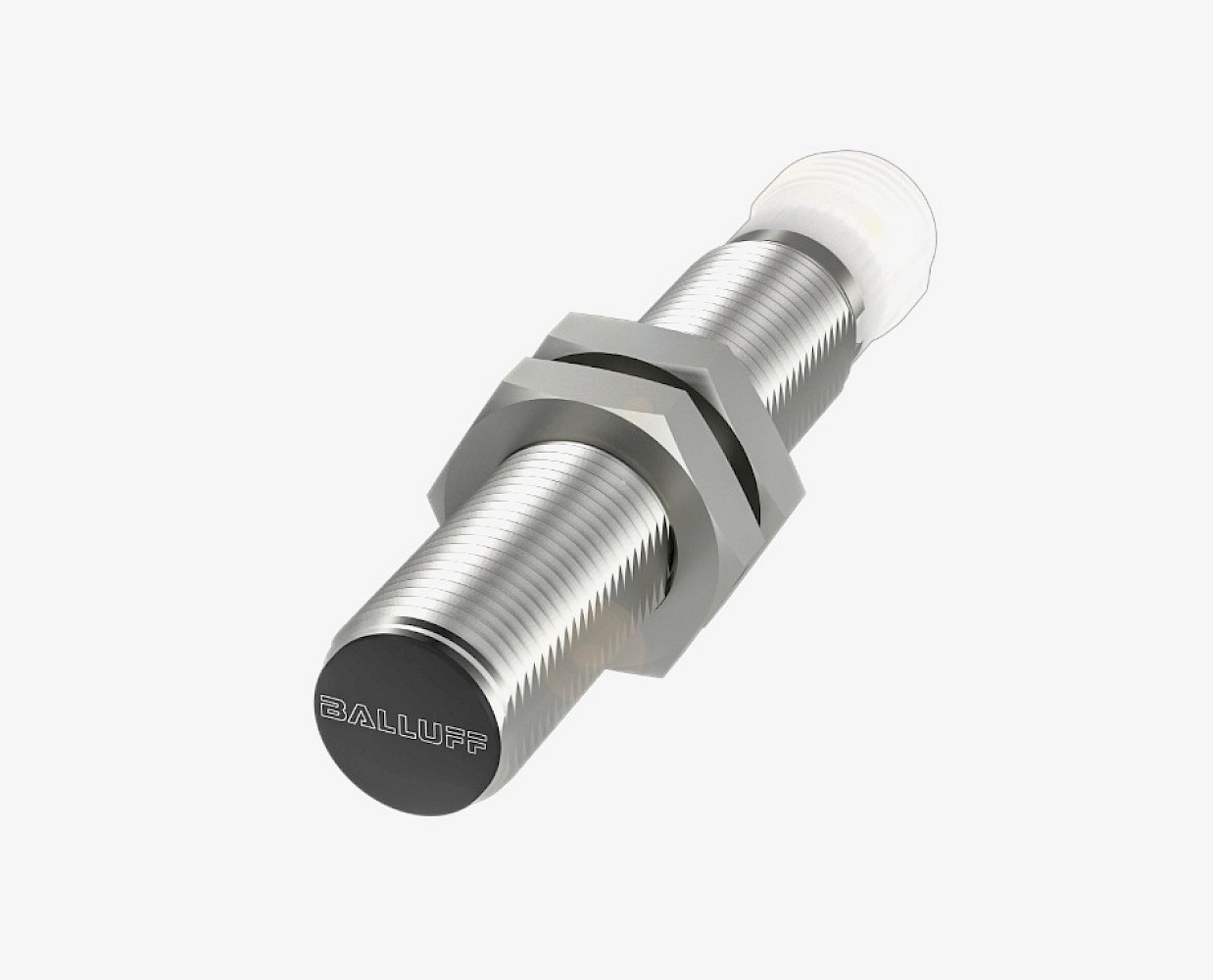

Balluff BES060U M12 4mm Flat Head PNP NO M12 Inductive Sensor with 4 Pin Connector
Balluff BES060U
Inductive M12 Proximity Sensor - Flush Mount (Shielded)
Reliable Metallic Object Detection for Industrial Automation
The Balluff BES060U is a high-precision inductive proximity sensor designed for contactless detection of metallic targets. Featuring a durable M12 cylindrical housing and a flush-mount (shielded) design, it provides a stable 4mm sensing range while remaining protected from surrounding metallic interference.
This sensor utilizes a PNP Normally Open (NO) output logic and features a standard M12 4-pin connector, ensuring rapid installation and easy replacement in high-speed production lines and automated machinery.
Key Advantages
Flush Mounting
Shielded design allows the sensor to be mounted flush with metal surfaces without false triggers.
Quick Connection
Industry-standard M12 4-pin connector reduces wiring time and simplifies maintenance.
High Accuracy
Consistent 4mm switching distance for precise part presence or position sensing.
Proven Durability
Built to Balluff’s high industrial standards for long service life in harsh environments.
Technical Specifications
| Parameter | Description |
|---|---|
| Diameter / Thread | M12 x 1 |
| Sensing Distance | 4 mm |
| Installation Type | Flush Mount (Shielded) |
| Output Type | PNP |
| Switching Function | Normally Open (NO) |
| Connection | M12 4-Pin Connector |
| Operating Temp. | -25°C to +70°C (Extended Range) |
Target Applications
- Packaging & Bottling: Detection of metal caps, foils, or containers.
- Automotive Assembly: Position sensing of metal chassis parts and robot arm end-stops.
- Machine Tooling: Tool presence detection and limit switching for linear actuators.
- Conveyor Systems: Counting metallic products and identifying carrier presence.
