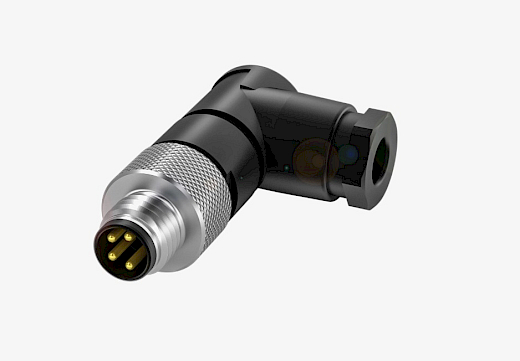

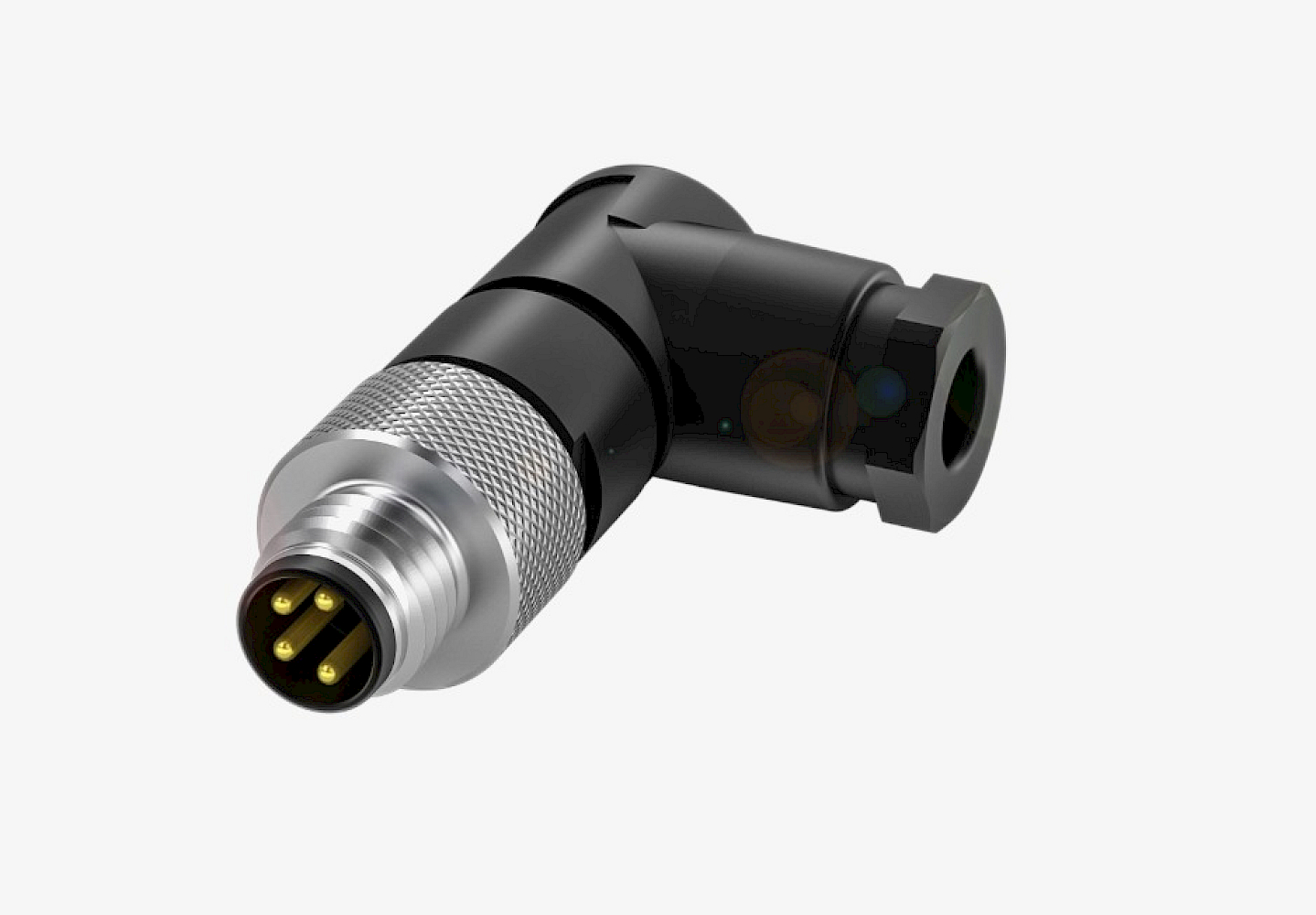

Balluff BCC0F9W M8x1 4 Pin 90° Male A-Coded Metal Connector
Product Code
BCC0F9W
Brands
Connector
Device IP Class
IP67
Connector Angle
90°
Connector Coding
A-Coded
Number of Pins
4
Socket Body Material
Metal
Socket Pin Connection Type
Brazed
Socket Type
Male
Socket Size
M8
Product Description
Balluff BCC0F9W Technical Specifications

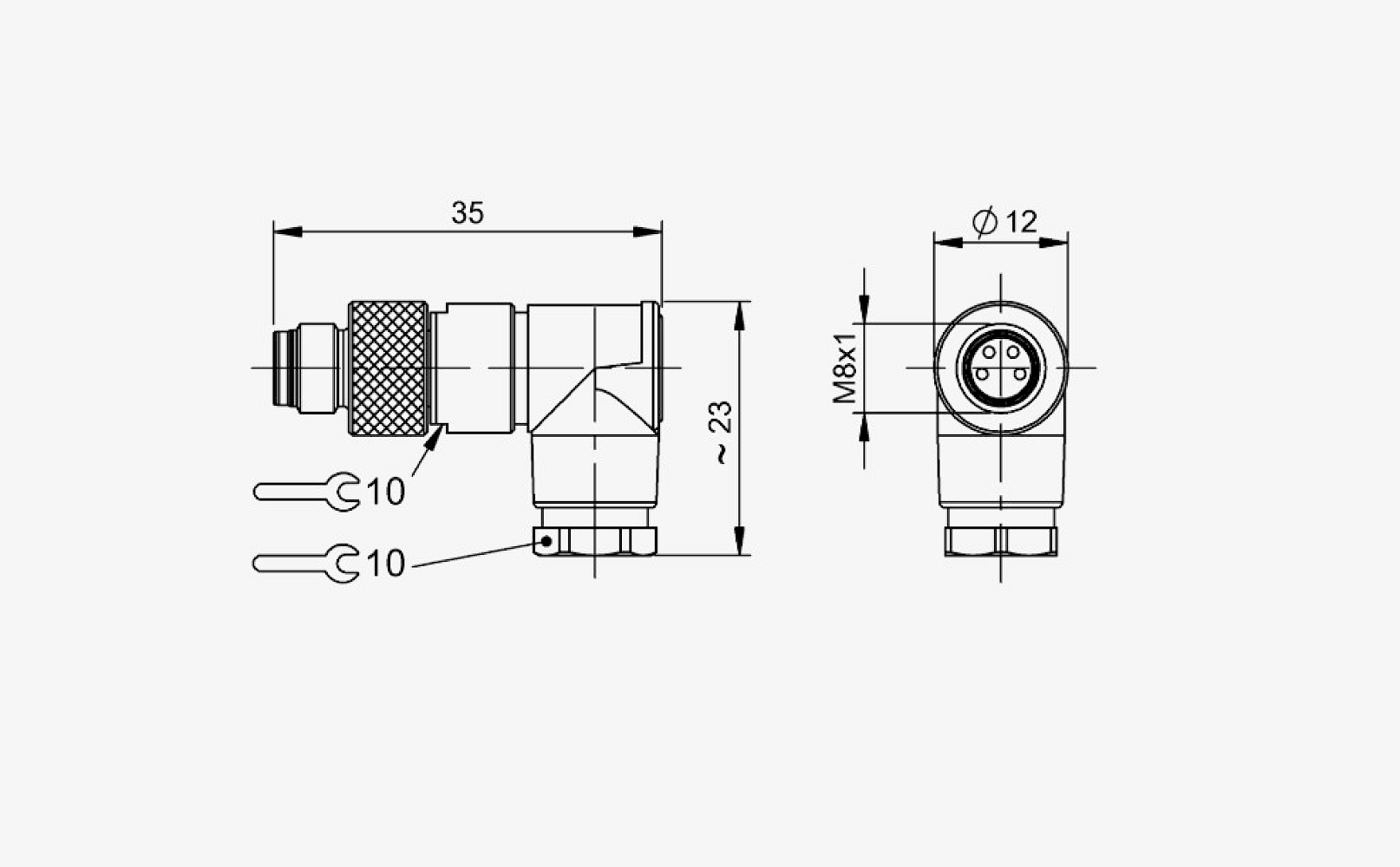

M8x1 4-Pin 90° Male A-Coded | Field Attachable Metal
| Feature | Description |
|---|---|
| Product Type | Field Attachable Connector |
| Interface | M8x1 Male, 90° Angled, 4-Pin |
| Coding | A-Coded (Standard Sensor/Actuator) |
| Connection Method | Solder Connection (Lehimli) |
| Housing Material | Zinc Die-Cast (Nickel Plated Metal) |
| Protection Rating | IP67 (When mated) |
| Operating Voltage | 30 V AC / 30 V DC |
| Rated Current | 4.0 A (at 40°C) |
Product Links
Ürün Bilgi Formu
€ 12,00
666,27 ₺
