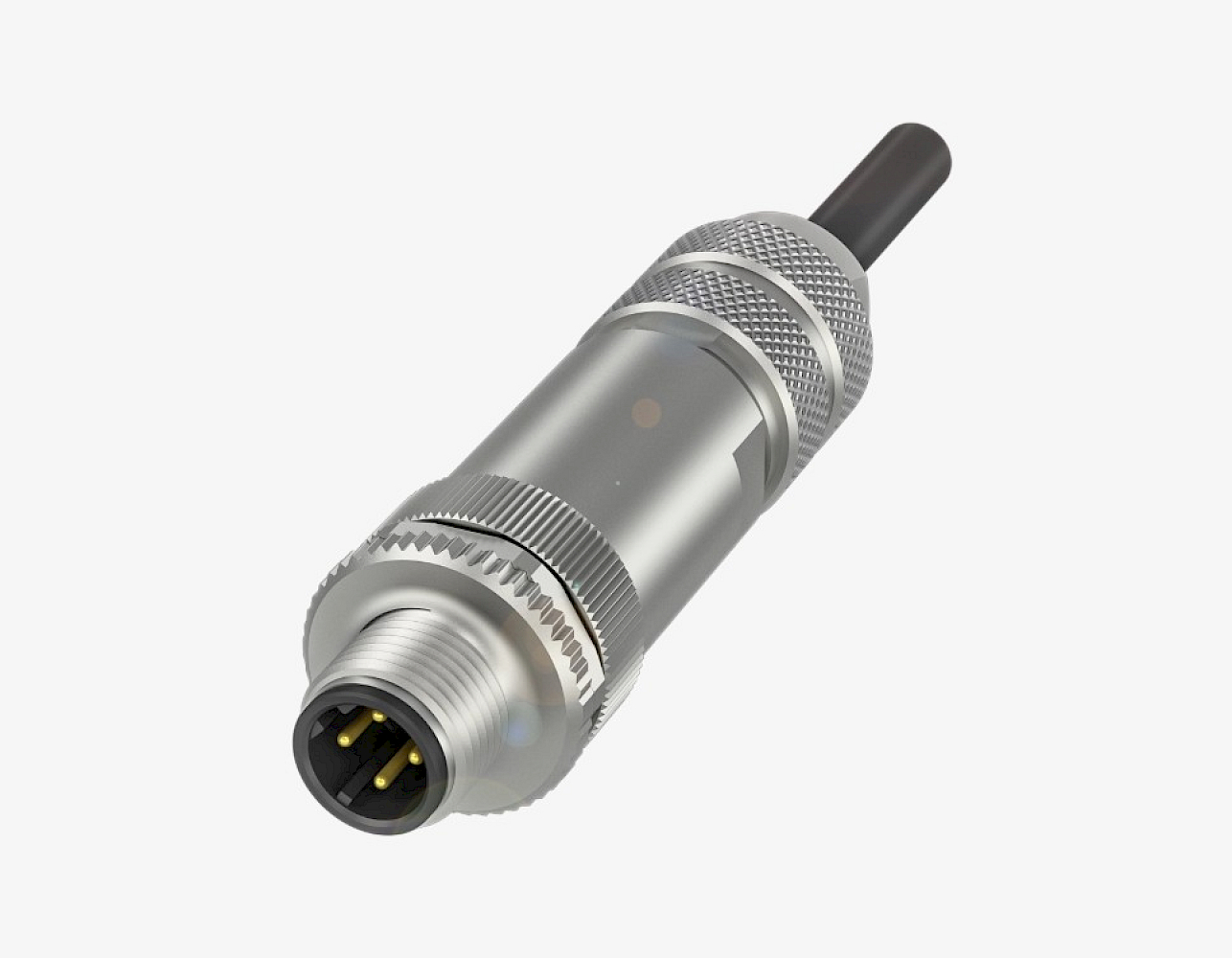

Balluff BCC03WZ M12x1 4 Pin Straight Male D-Coded Metal Connector
Product Code
BCC03WZ
Brands
Connector
Device IP Class
IP67
Connector Coding
d-Coded
Number of Pins
4
Socket Angle
Straight
Socket Body Material
Metal
Socket Pin Connection Type
Screw
Socket Type
Male
Socket Size
M12
Product Description
Balluff BCC03WZ Technical Specifications
M12x1 4-Pin Straight Male D-Coded | Field Attachable
| Feature | Description |
|---|---|
| Product Type | Field Attachable Connector |
| Interface | M12x1 Male, Straight, 4-Pin |
| Coding | D-Coded (Industrial Ethernet) |
| Data Speed | 10/100 Mbit/s (Cat5/Cat5e) |
| Mounting / Connection | Screw Terminal (Vidalı Bağlantı) |
| Housing Material | Zinc Die-Cast (Nickel Plated Metal) |
| Protection Rating | IP67 (When mated) |
| Cable Diameter | 6.0 mm to 8.0 mm |
Product Links
Ürün Bilgi Formu
€ 14,40
777,31 ₺
