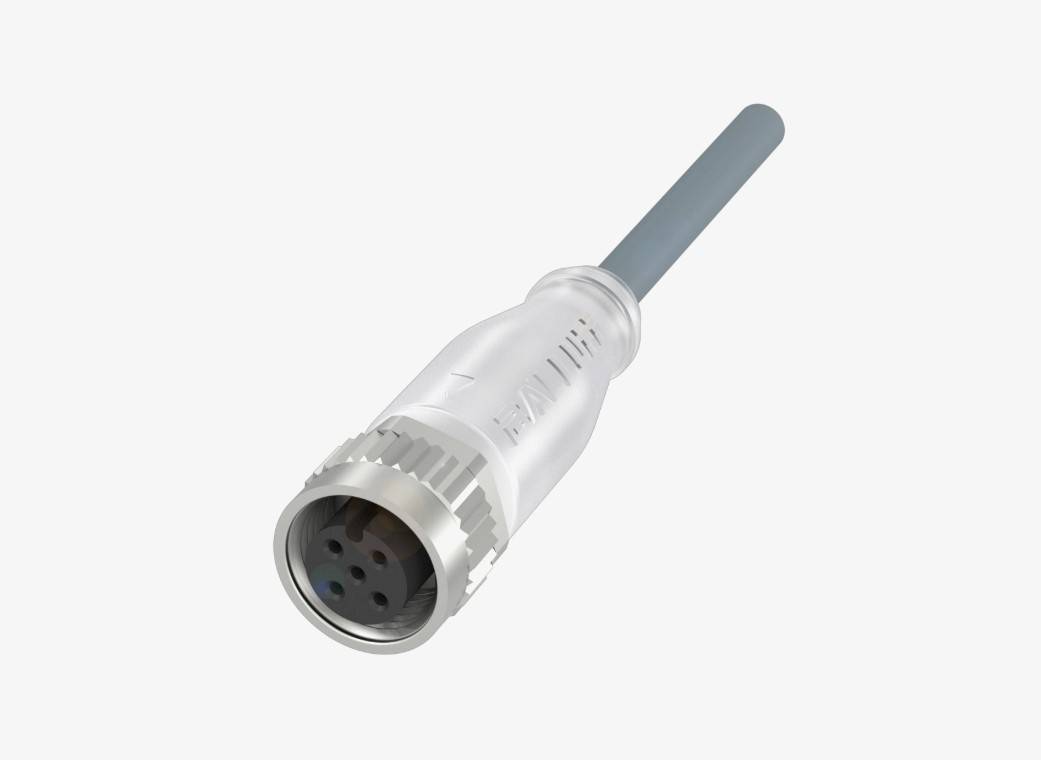

Balluff BCC0363 M12x1 4 Pin Straight Female A-Coded 10 Meter PVC Connector Led Cable
Product Code
BCC0363
Brands
Cable with Connector
Device IP Class
IP67
Device IP Class
IP69
Cable Angle
Straight
Cable Body Material
PVC
Cable Coding
A-Coded
Cable Length
10 mt
Contact Type
No/Nc
Number of Pins
4
Socket Size
M12
Output Type
PNP
Product Description
Balluff BCC0363 Technical Specifications
M12x1 4-Pin Straight Female A-Coded | LED Status | 10m PVC
| Feature | Description |
|---|---|
| Product Type | Sensor Cable with LED Indicators |
| Connection Style | M12x1 Female, Straight, 4-Pin |
| Diagnostic LEDs | Green (Power) / Yellow (Signal) |
| Switching Output | PNP (Normally Open / Normally Closed) |
| Cable Length | 10.0 Meters |
| Jacket Material | PVC (Polyvinyl Chloride) - Gray |
| Protection Rating | IP67, IP69K (When properly mated) |
| Supply Voltage | 10...30 V DC |
Status Monitoring Logic
• Green LED: Indicates the cable is receiving 24V power.
• Yellow LED: Illuminates when the sensor's switching output is HIGH (Target detected).
Product Links
Ürün Bilgi Formu
€ 16,80
932,78 ₺
