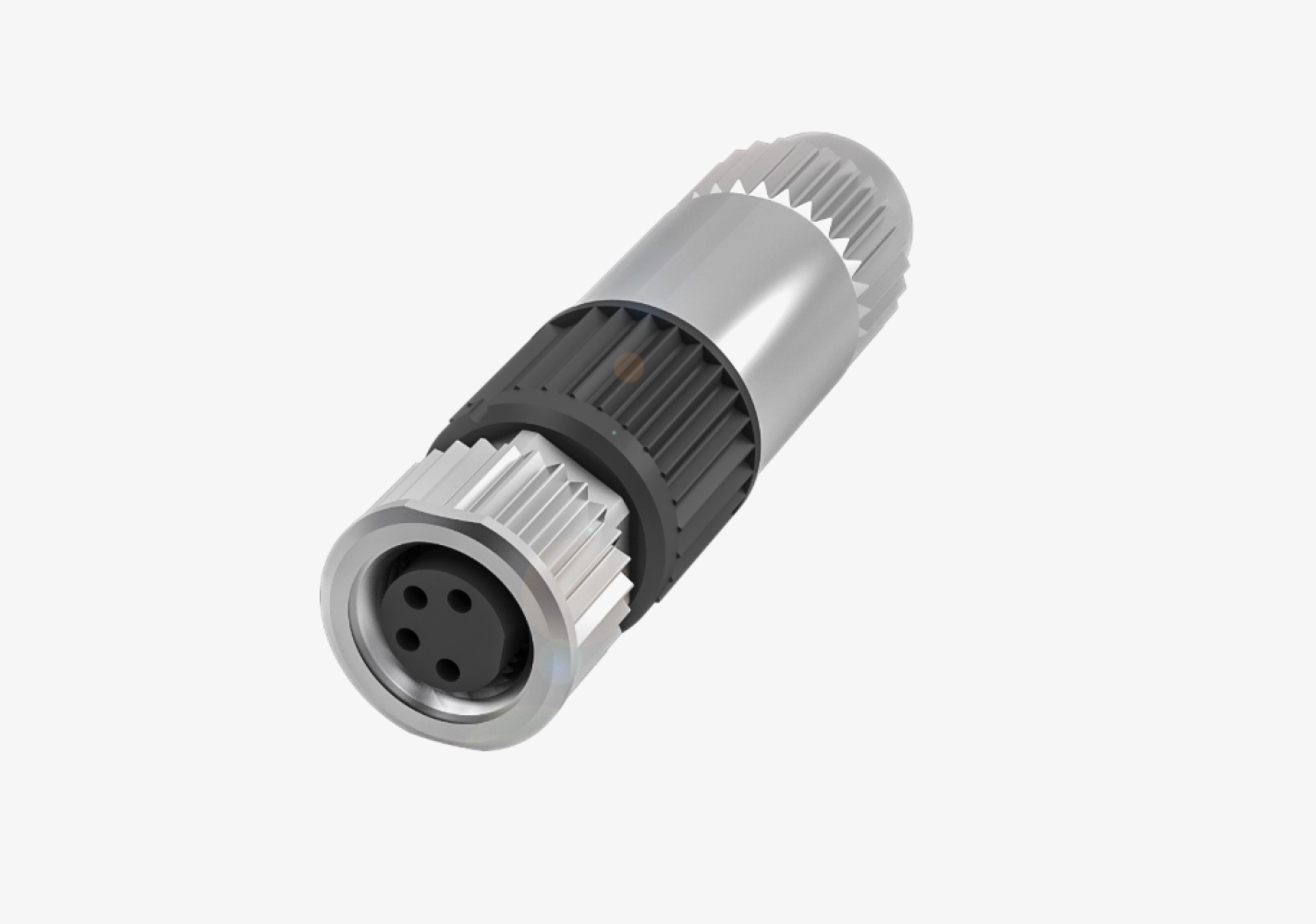

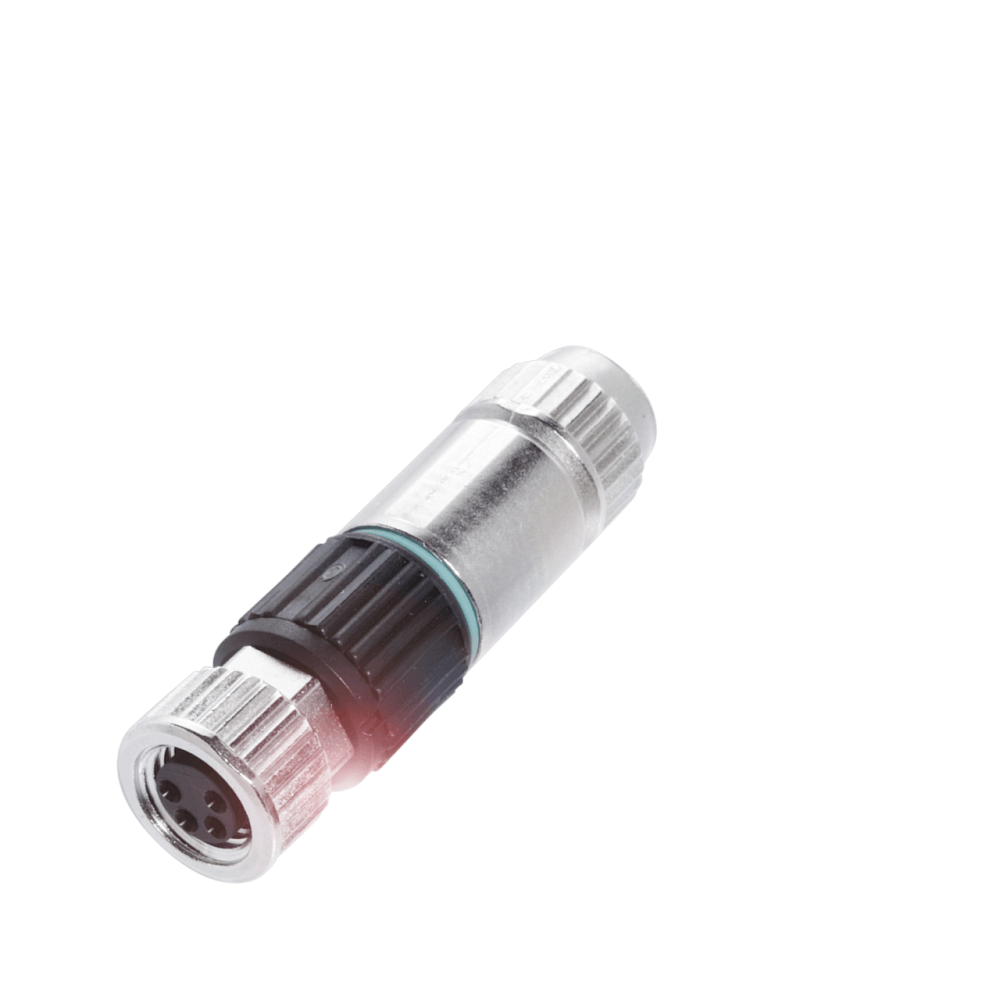

Balluff BCC02HF M8x1 4 Pin Straight Female A-Coded Metal Connector
Product Code
BCC02HF
Brands
Connector
Device IP Class
IP67
Connector Coding
A-Coded
Number of Pins
4
Socket Angle
Straight
Socket Body Material
Metal
Socket Pin Connection Type
Screw
Socket Type
Female
Socket Size
M8
Product Description
Balluff BCC02HF Technical Specifications
M8x1 4-Pin Straight Female A-Coded | Field Attachable Metal
| Feature | Description |
|---|---|
| Product Type | Field Attachable Connector |
| Interface | M8x1 Female, Straight, 4-Pin |
| Coding | A-Coded (Standard Sensor/Actuator) |
| Connection Method | Screw Terminal (Vidalı Bağlantı) |
| Housing Material | Zinc Die-Cast (Nickel Plated Metal) |
| Protection Rating | IP67 (When mated) |
| Operating Voltage | 30 V AC / 30 V DC |
| Rated Current | 4.0 A (at 40°C) |
Product Links
Ürün Bilgi Formu
€ 12,00
666,27 ₺
