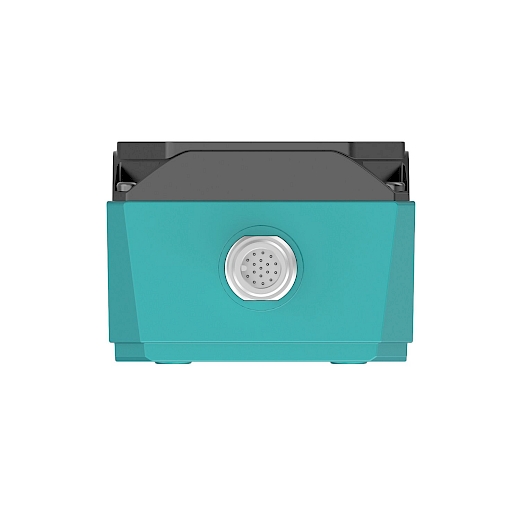

iData DM3000-W1612WBT1000 Fixed Industrial Code Reader
Product Code
DM3000-W1612WBT1000
Brands
The iData fixed code reader family is fully customizable with different reader types and resolution options, easily adapting to any application. You can always reach us between 08:00 - 18:00 on weekdays regarding your needs and demands.
Lighting Type
White Light
AI Support
None
Compatible / Compact
Compact
Digital IO
Yes
Image Filter Support
None
Communication Types
Ethernet IP
Communication Types
FTP
Communication Types
Smart SDK
Communication Types
MELSEC
Communication Types
FINS
Communication Types
Modbus TCP
Communication Types
Profinet
Communication Types
RS232
Communication Types
TCP/IP
Communication Types
SLMP
Internal Program Support
None
Kit
Yes
Lens Type
Motorized S-Mount
Lens Size
12 mm
Manual Code Reader Integration
No
Master-Slave Build Support
Yes
Readable Code Types
1D
Readable Code Types
2D
Readable Code Types
Postal
Readable Code Types
Stacked
Readable Code Types
DPM
Polarization Filter
Optional
Resolution
1.6 MPX (1440x1080 PX)
Product Description

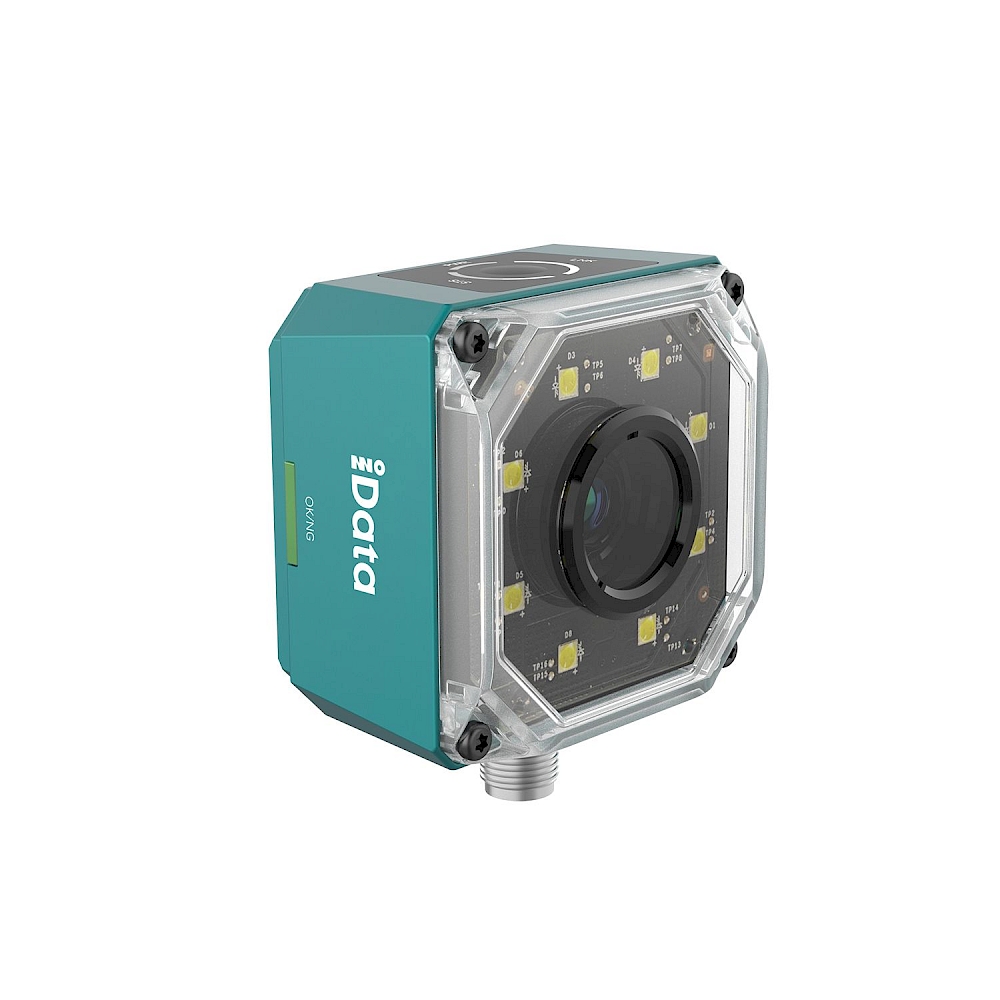

iData DM3000-W1612WBT1000
1.44 MP Industrial Fixed Mount Reader - 12mm Focal Lens
The iData DM3000-W1612WBT1000 is a versatile industrial 1D/2D stationary scanner designed for high-speed automated lines. Featuring a 1.44 MP resolution sensor paired with a 12mm S-Mount lens, it provides an ideal field of view for medium-range scanning tasks. Its extensive protocol support, including OPC UA and Modbus TCP, ensures seamless integration into modern Industry 4.0 environments.
Technical Specifications
| Product Type | Fully Industrial Stationary Reader |
| Scanning Tech | Area Imager (S-Mount Lens) |
| Resolution | 1408 x 1024 Pixels (1.44 Mpx) |
| Optics / Lighting | 12mm Lens / White LED Illumination |
| Supported Codes | 1D & 2D (QR, DataMatrix, PDF417, etc.) |
| Fieldbus / Protocols | PROFINET, EtherNet/IP, Modbus TCP, OPC UA |
| Serial Interfaces | RS-232 / RS-422FD / Serial Aux RS-232 |
| Protection Rating | IP65 / IP67 |
| Operating Temp. | -20°C to +50°C |
Industry 4.0 Ready
Unlike standard readers, the DM3000 series supports OPC UA and Modbus TCP out of the box. This allows for direct communication with enterprise-level SCADA systems and high-level PLCs without the need for expensive intermediate gateways.
Operational Strengths
- High-Speed Stability: Stable reading on rapid conveyors.
- Rugged Build: Metal housing resistant to oils and dust.
- Dual Serial Ports: Multi-device synchronization capability.
Key Industries
- Automotive: Tracking components via DPM.
- Medical: UDI verification for small parts.
- Logistics: Accurate sorting at conveyor speeds.
