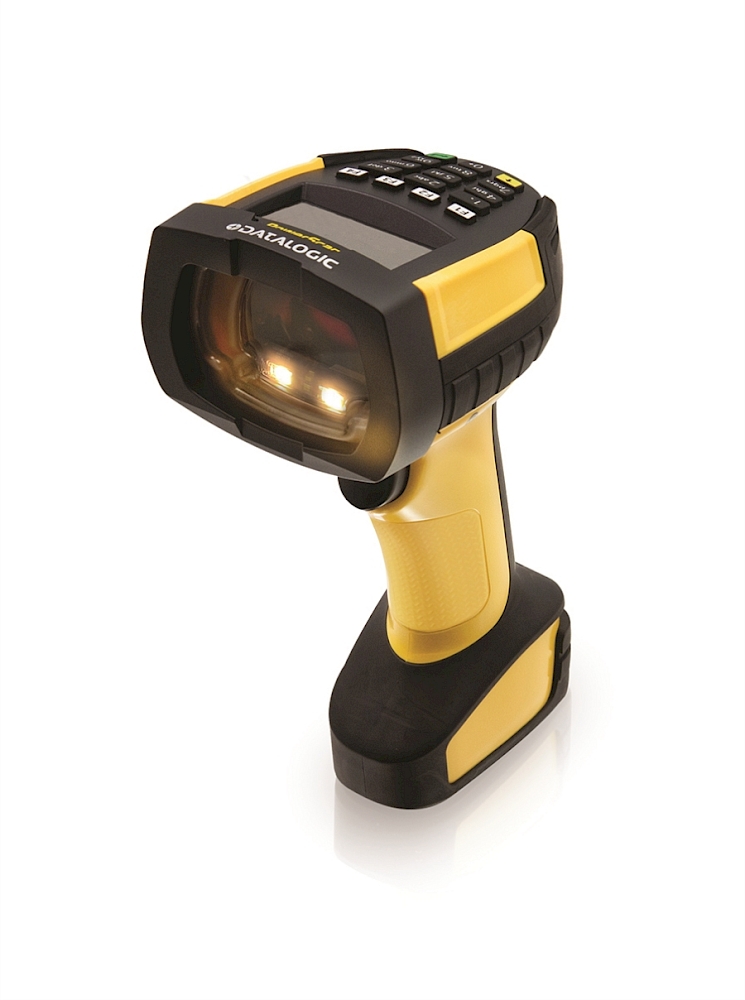

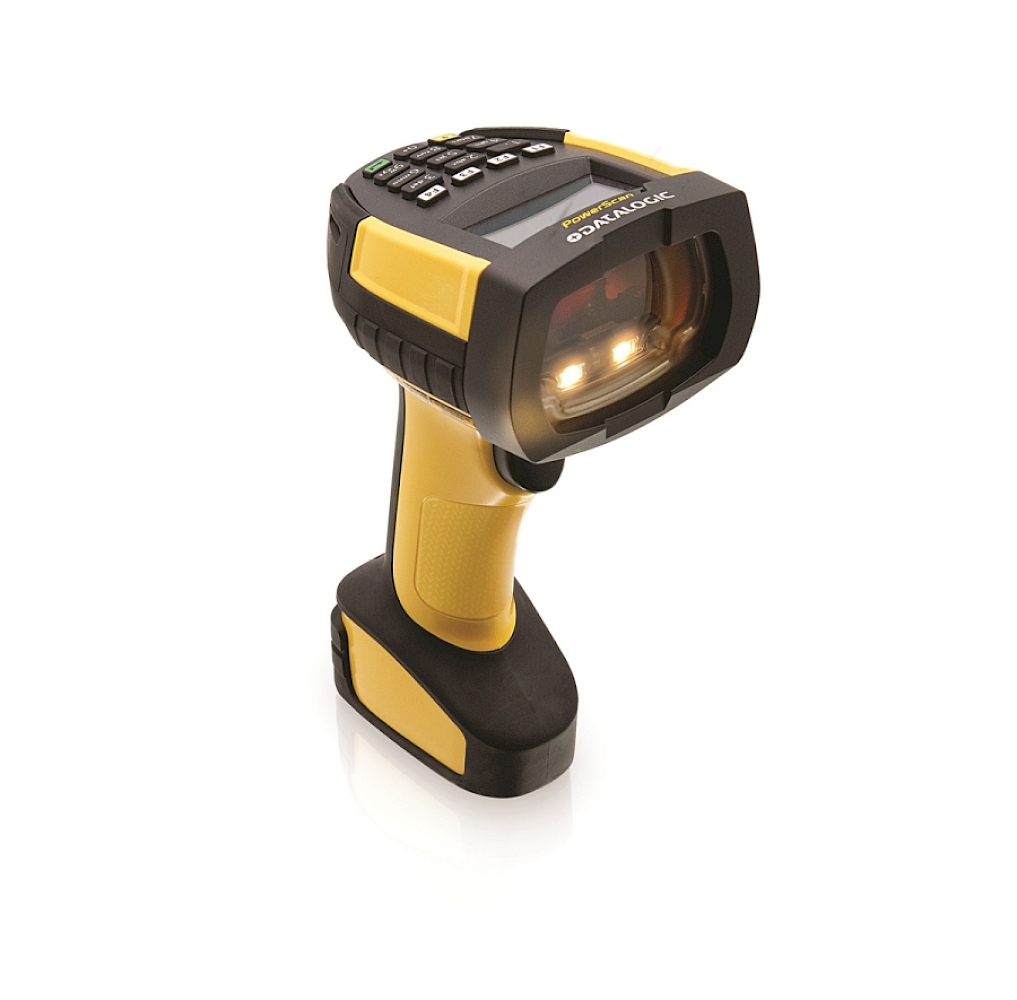

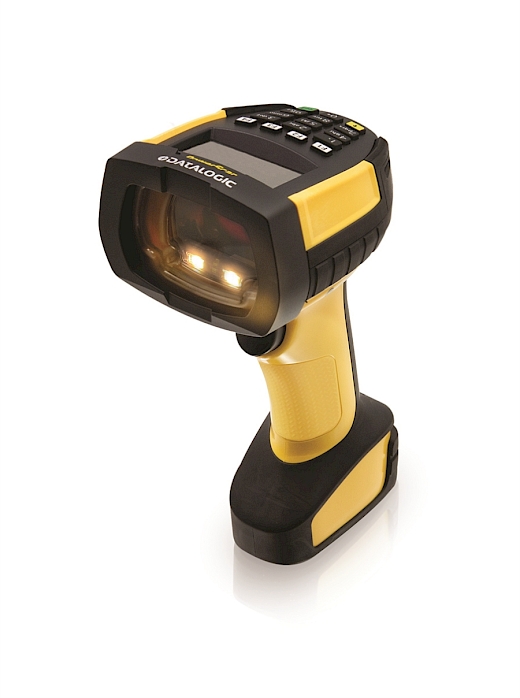

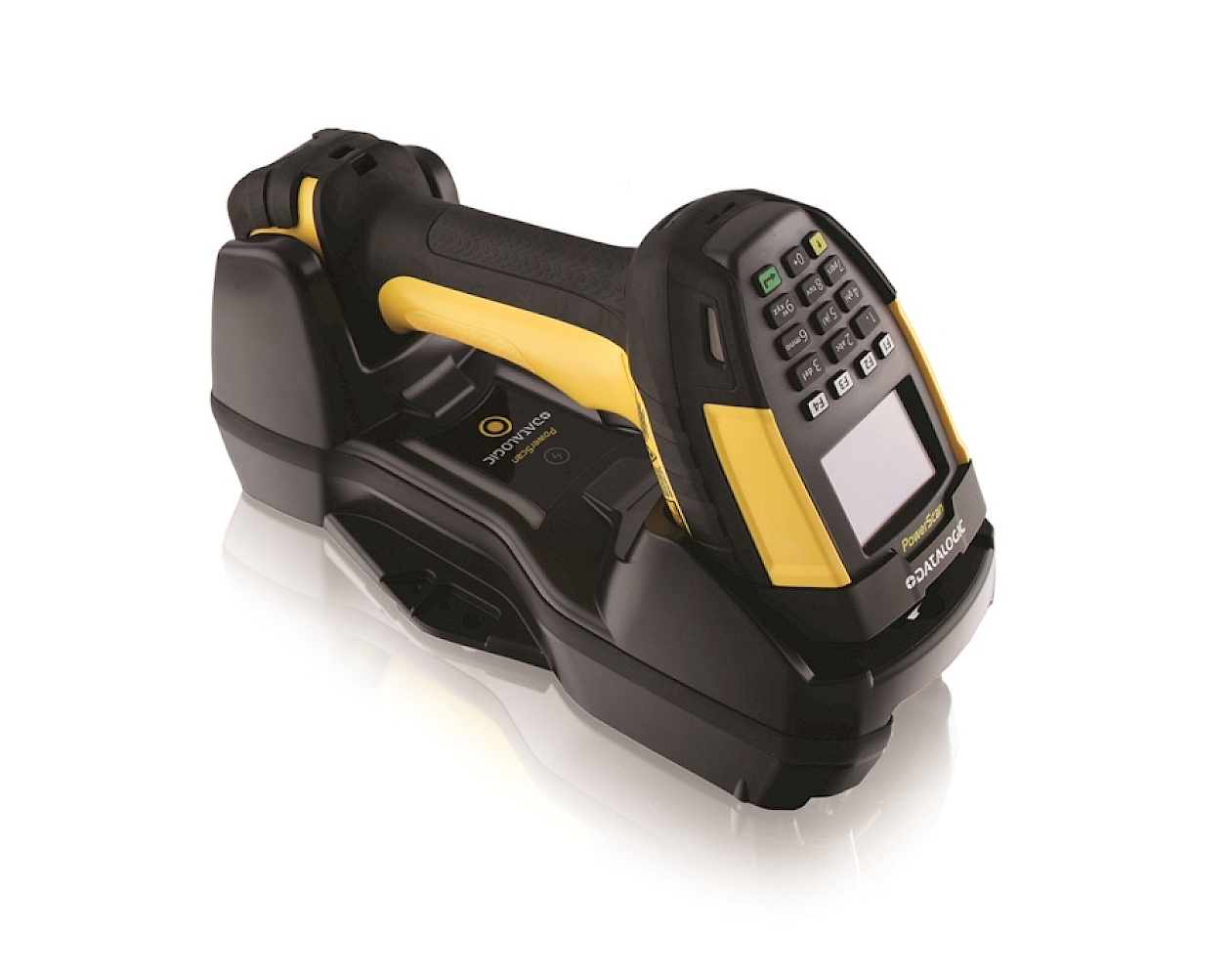

Datalogic PM9600-DKHP433RK10 HP 16 KEY USB Kit Full Industrial Handheld Scanner
Datalogic PowerScan PM9600-DKHP433RK10
Full Industrial Wireless HP Kit | 16-Key Display | USB Interface | IP67 Sealing
Mobile Intelligence for Demanding Workflows
The Datalogic PowerScan PM9600-HP (High Performance) is more than just a scanner; it is a rugged handheld terminal designed for high-precision data capture. The HP optics are optimized to read high-density barcodes and difficult labels that are poorly printed, damaged, or covered by protective plastic films.
This USB Kit offers a seamless "Plug & Play" integration while providing advanced interactive capabilities. With its 16-key alphanumeric keypad and graphic display, operators can input data such as quantity counts or location codes directly into the device, receiving real-time feedback from the host system via the Datalogic STAR Wireless (433MHz) secure radio link.
Key Advantages of the PM9600-HP USB Kit
HP High-Density Imaging
Superb decoding of very small or high-resolution 1D/2D codes used in electronics and component tracking.
16-Key User Interaction
Eliminates the need for a separate computer terminal for simple data entry like item quantities or error confirmations.
STAR Wireless Liberty
433MHz frequency ensures a stable, long-range connection that penetrates metal racks and bypasses Wi-Fi congestion.
Extreme Sealing (IP67)
Completely protected against dust and water immersion. Built to survive 2.5m (8.2 ft) drops to concrete.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Industrial Wireless 16-Key Handheld Kit |

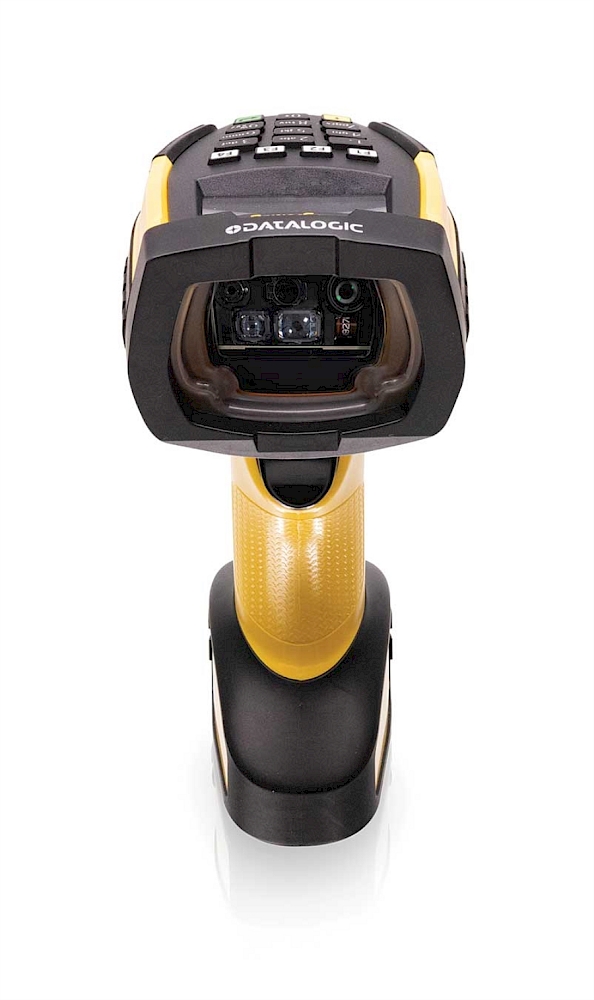

| Optics Technology | Area Imager (HP - High Performance) |

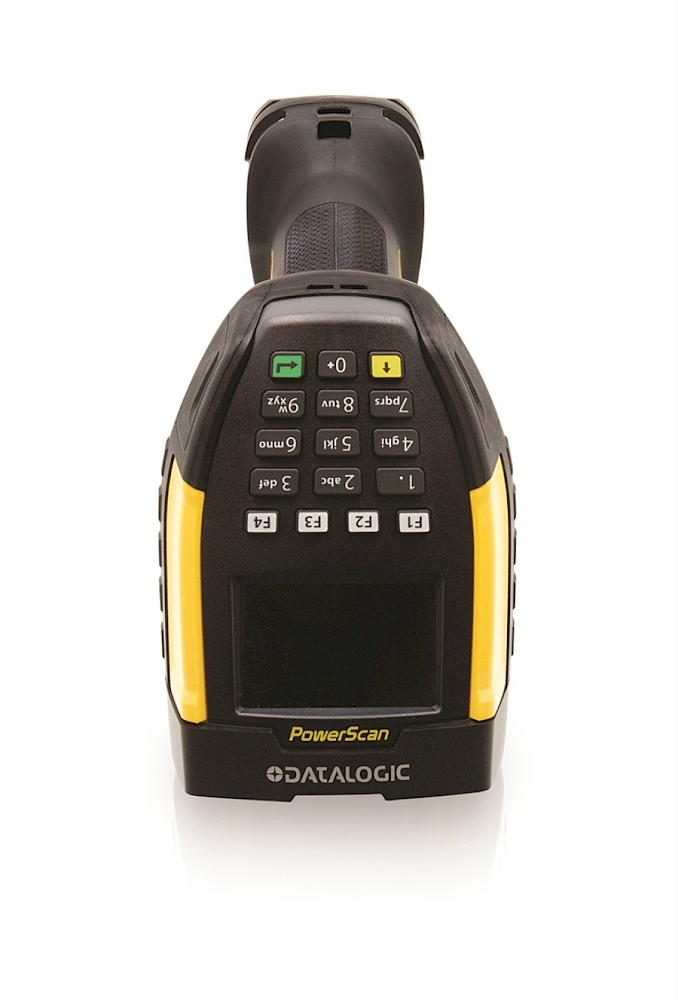

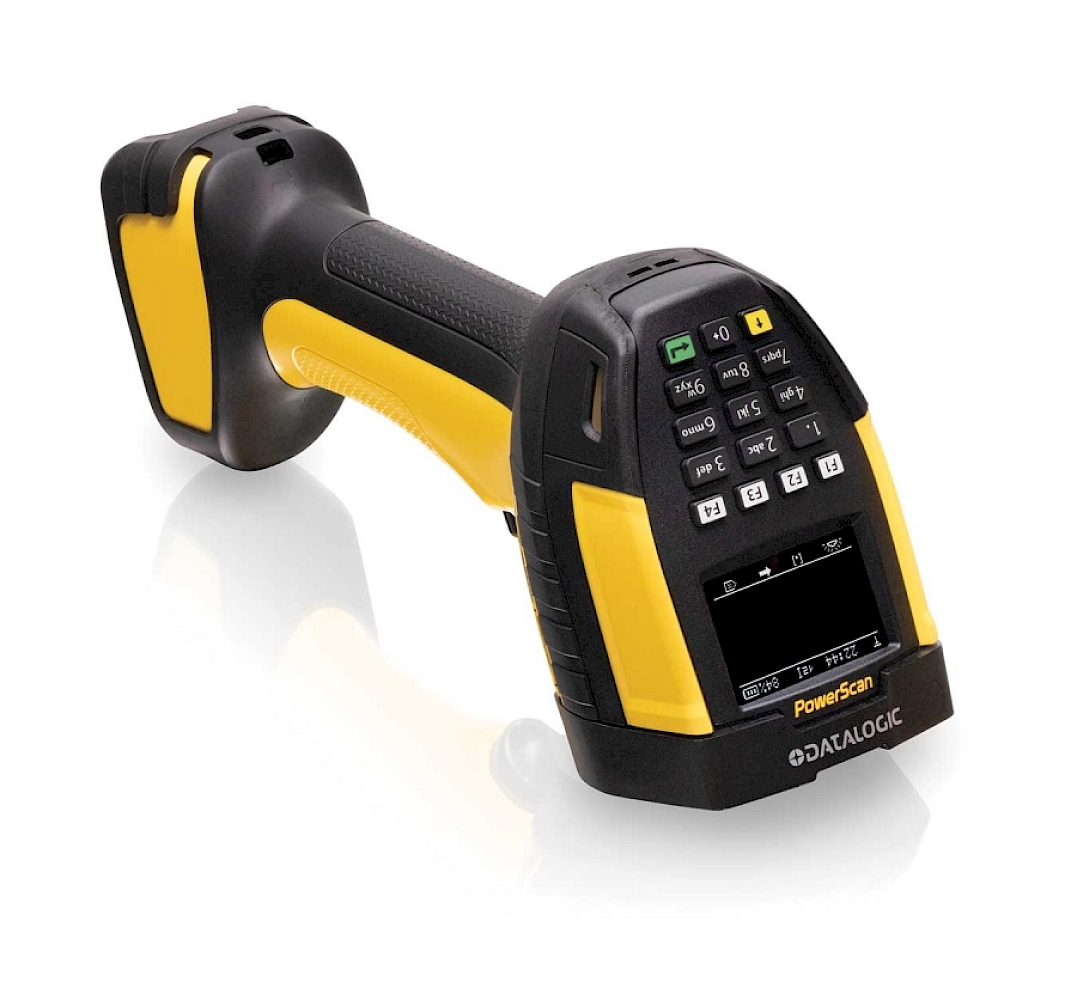

| User Interface | 16 Alphanumeric Keys + Graphic Display |
| Kit Interface | USB (Kit); RS232 (Optional) |
| Wireless Protocol | Datalogic STAR Wireless (433 MHz) |
| Protection Rating | IP65 / IP67 (Fully Submersible) |
| Operating Temp. | -20°C to +50°C |
Target Applications
- Automotive & Manufacturing: Parts tracking where operators must confirm item counts.
- Electronics Traceability: Reading high-density 2D Matrix codes on small PCB boards.
- Logistics & Picking: Interactive picking where the screen guides the user to the next location.
- Heavy Industry: Inventory management in oily, dusty, or wet environments.
