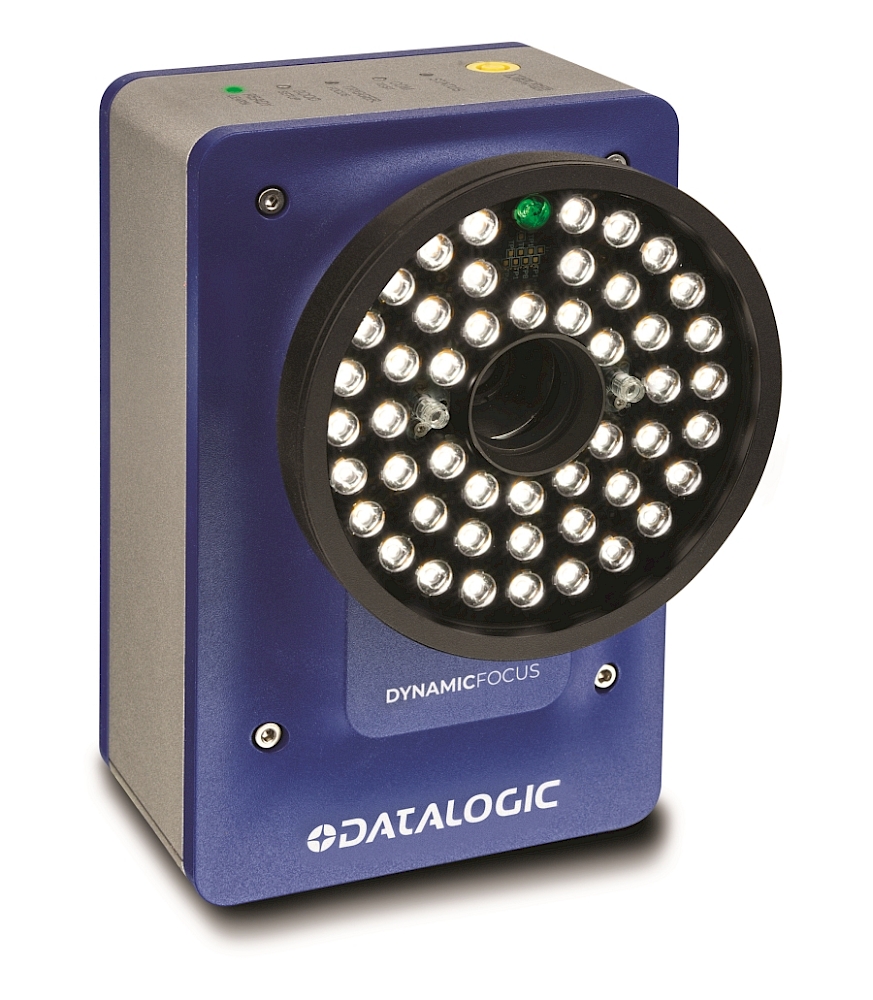

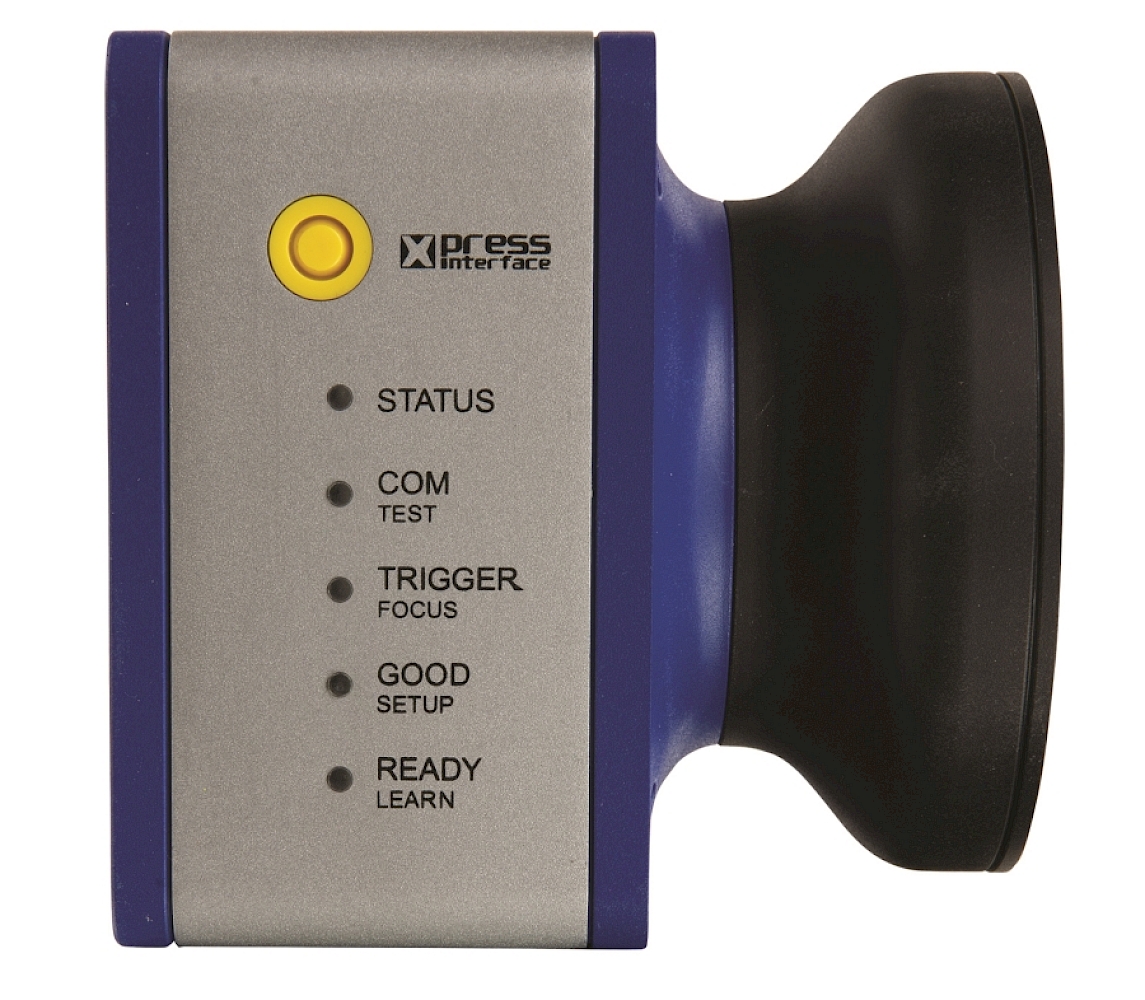

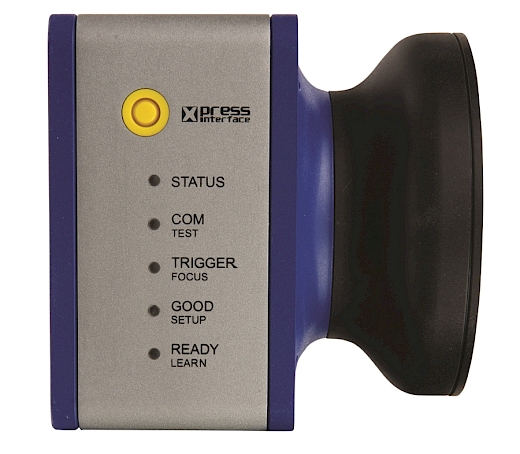

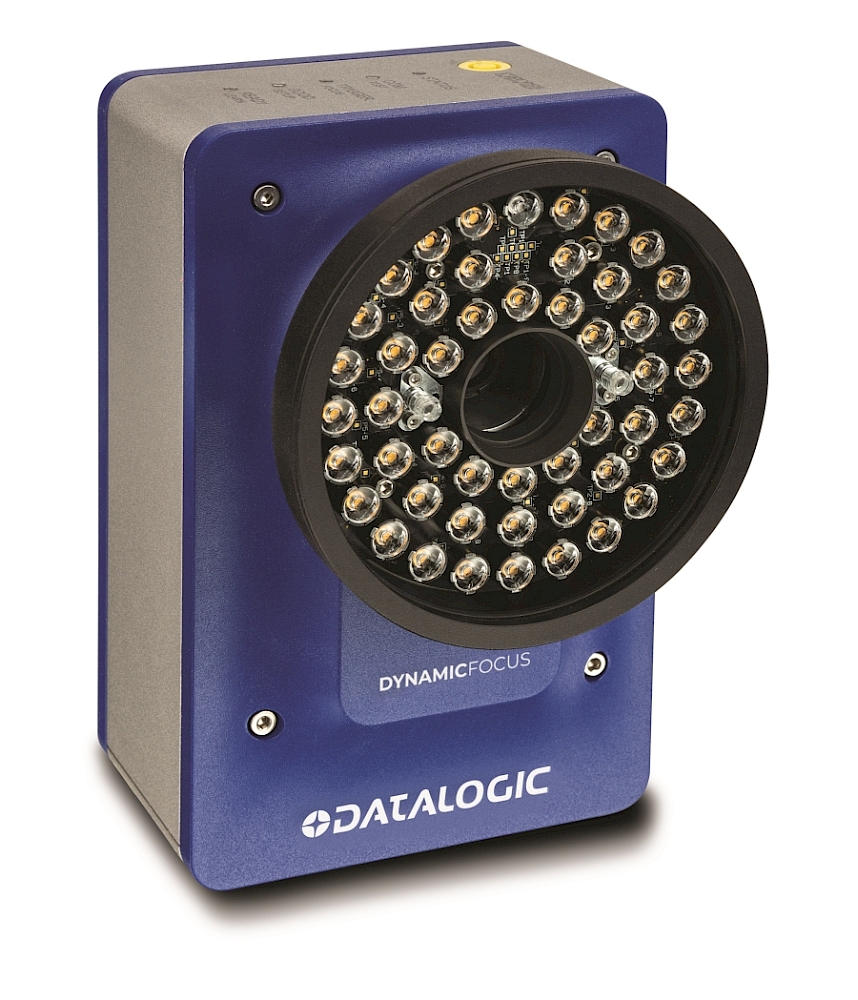

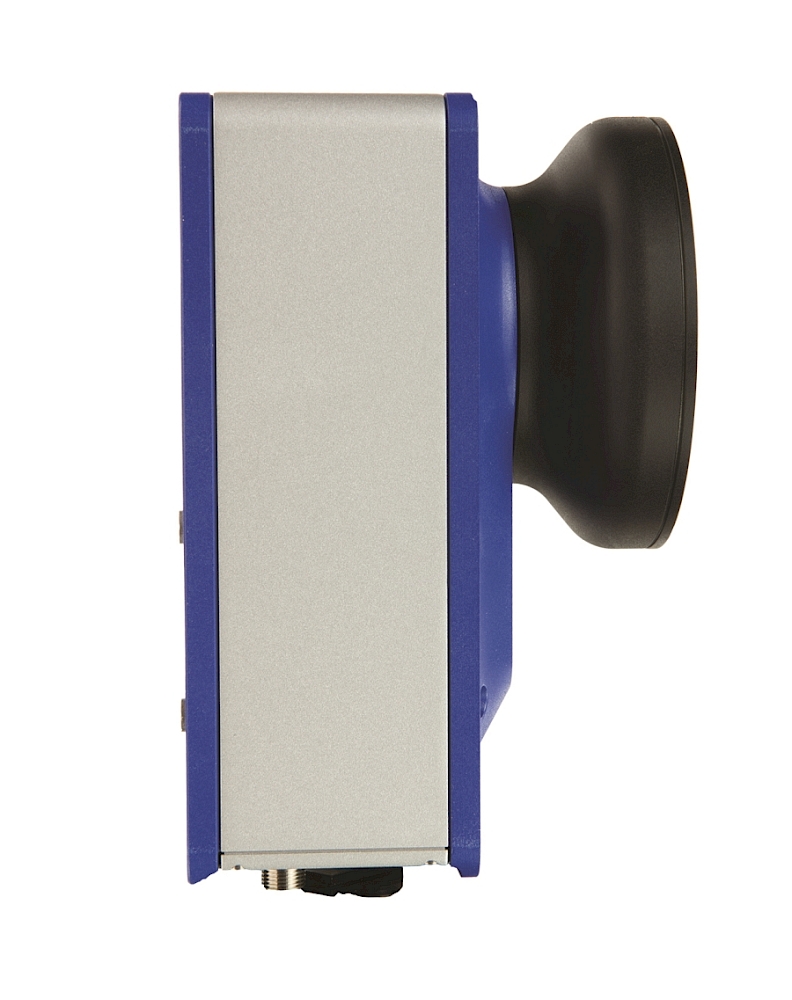

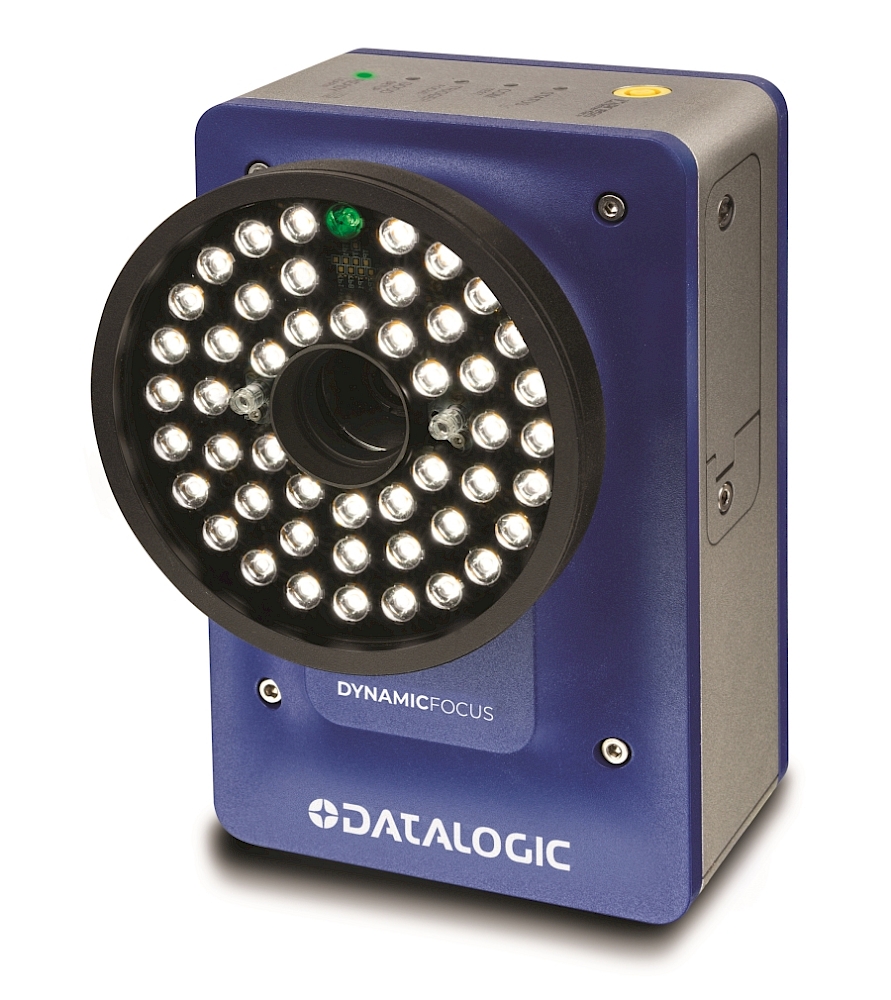

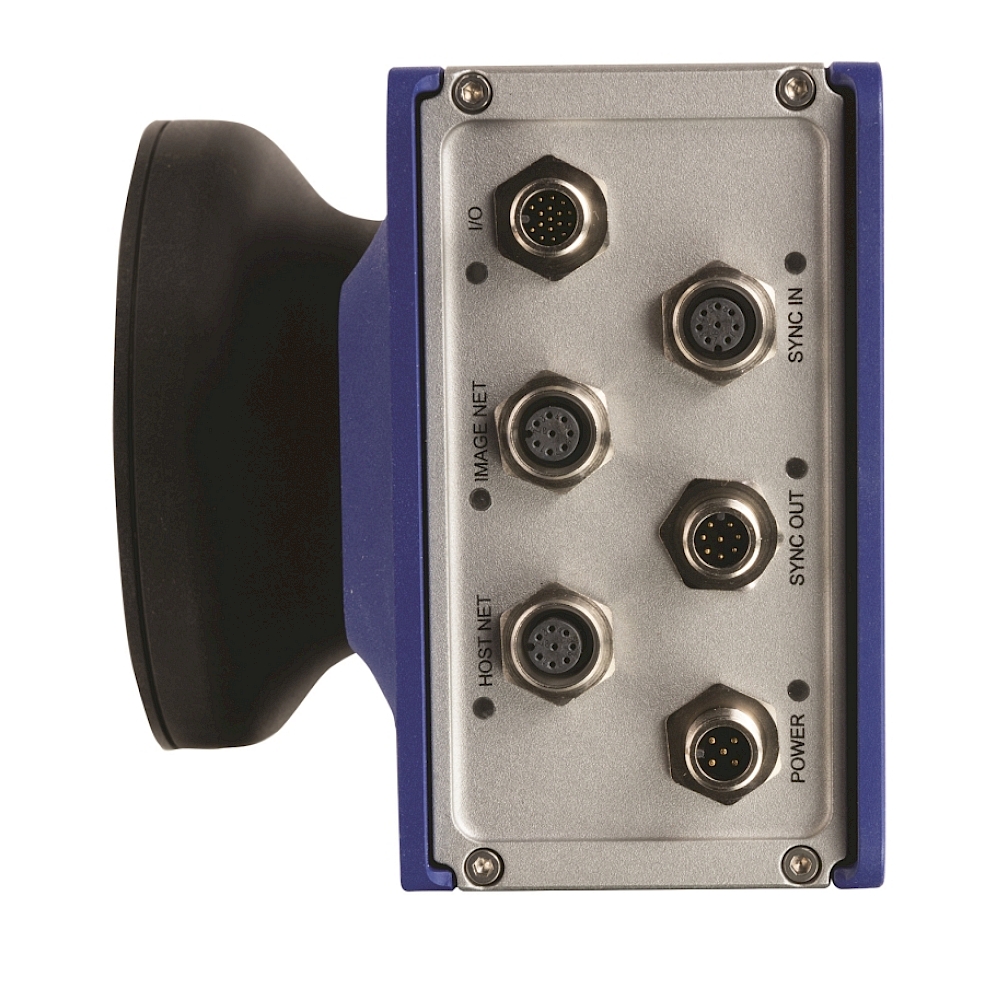

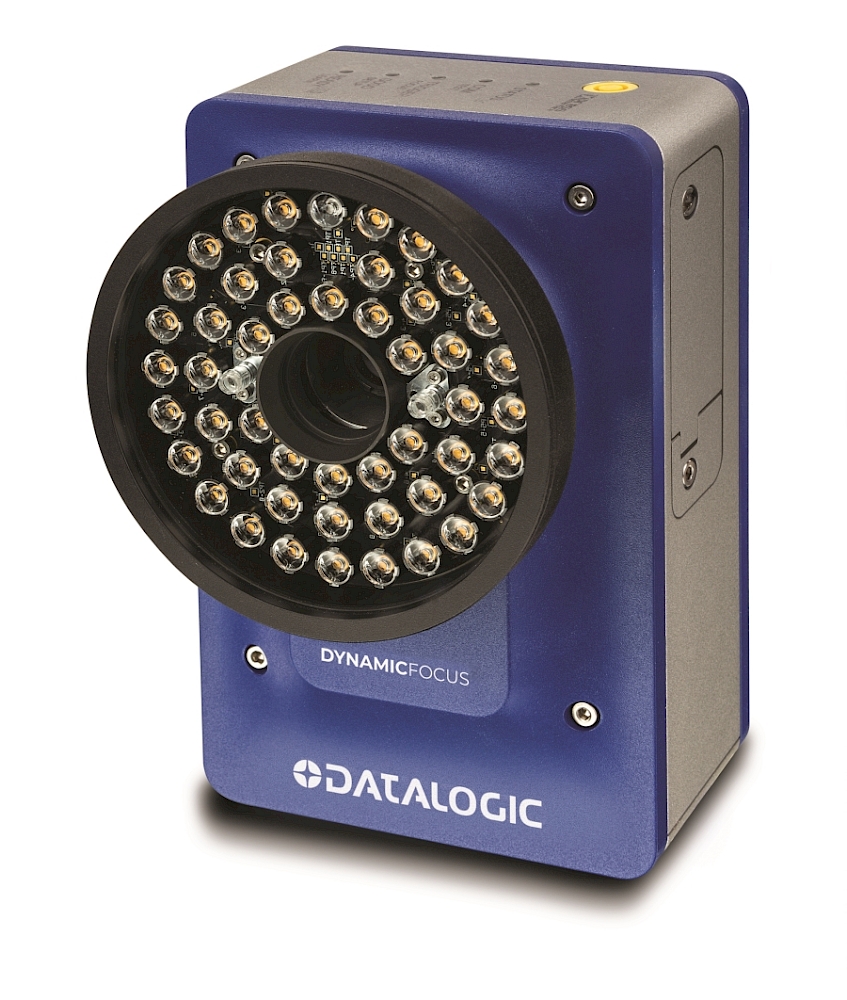

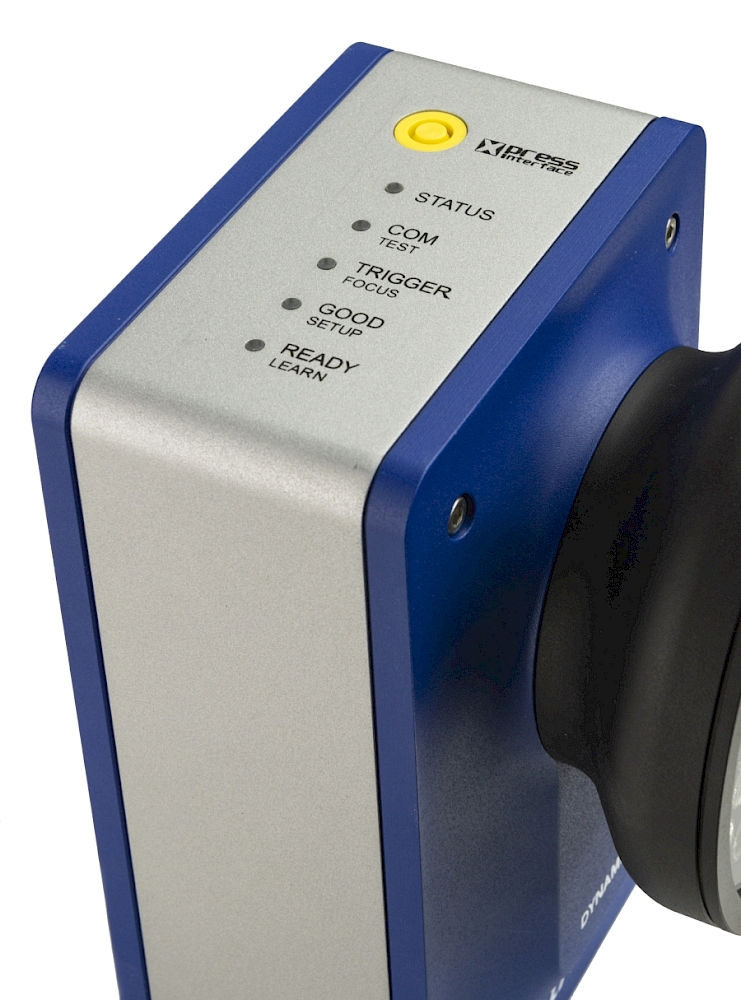

Datalogic AV500-257W, 25mm, f/7, White Logistics Code Reader
Product Code
938000005
Brands
The Datalogic logistics code reader family is fully customizable with different reader types and resolution options, easily adapting to any application. You can always reach us between 08:00 - 18:00 on weekdays regarding your needs and demands.
Lighting Type
White Light
Compatible Device Types
AV Series
Image Filter Support
Yes
Communication Types
Ethernet IP
Communication Types
FTP
Communication Types
Modbus TCP
Communication Types
OPC UA
Communication Types
Profinet
Communication Types
RS232
Communication Types
RS422
Communication Types
SFTP
Communication Types
TCP/IP
Communication Types
UDP
Communication Types
NTP
Communication Types
SLMP
Communication Types
HMS
Device IP Class
IP67
Internal Program Support
Java Script
Lens Type
Motorized C-Mount
Lens Size
25 mm
Master-Slave Build Support
Yes
Readable Code Types
1D
Readable Code Types
2D
Readable Code Types
Postal
Programmable
Yes
Resolution
9 MPX (4096x2160 PX)
Product Description
Datalogic AV500-257W
Industrial 5 MP 2D Logistics Code Reader
| Specification | Value |
|---|---|
| Product Type | 2D Logistics Code Reader |
| Imager / Resolution | CMOS / 5 Mpx |
| Lens / Illumination | 25mm C-Mount Lens / White Light |
| Frame Rate (FPS) | Up to 32 frames/sec |
| Decoding Resolution | Min: 0.25 mm (10 mils) / Max: 1.0 mm (40 mils) |
| Symbologies | Full 1D, 2D (Data Matrix, QR), PDF417, and Extensive Postal Codes |
| Communication | 2 x Ethernet TCP/IP, RS232/RS422, EtherNet/IP, PROFINET-IO, PROFIBUS-DP |
| Protection Class | IP65 / IP67 |
| Operating Temp. | -20°C to +50°C |
| Warranty | 2 Years against manufacturing defects |
